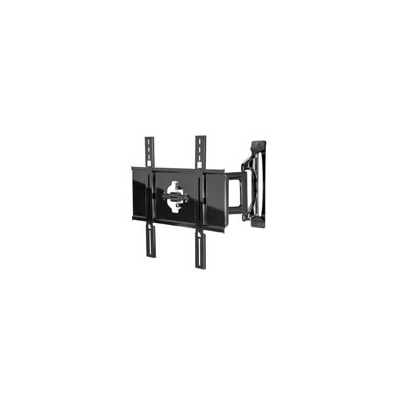

Peerless SUA745PU Slinline Articulating Wall Mount Arm
for 32 to 46 inch Ultra-thin LCD LED Screens up to 60 lbs
|
|
|
|
|
|
|
|
Features of Peerless SUA 745PU:
|
|
1. Arm retracts to 1" (25 mm) and extends up to 23.8" (604 mm) from wall.
|
|
2. One-touch tilt allows adjustment of +15/-5° without the use of tools.
|
|
3. Up to ±90° of side-to-side swivel.
|
|
4. ±5° of roll to level screen horizontally.
|
|
|
|
|
|
|
|
Technical Drawings for Peerless SUA745PU Slinline Articulating
Wall Mount Arm for 32 to 46 inch Ultra-thin LCD LED Screens
|
|
|
|
|
|
|
|
Description of Peerless SUA-745PU:
The world's thinnest articulating LCD LED TV mount transforms the viewing experience from ordinary to extraordinary. Ultra-thin TVs give the room a decidedly contemporary look, but only when married to an ultra-slim mount that allows to maintain the ultra-thin aesthetic and still position the LCD LED TV at the best viewing angle. Brilliant in its simplicity and ease of installation, the mount's functionality is optimized through its remarkable arm extension and swiveling hinge. Now you can create the perfect viewing angle and truly achieve the ultra-thin experience at the same time.
|
|
|
|
|
|
Specifications:
|
|
Model:
|
SUA745PU - Includes standard hardware (hex or Phillips) for attaching screen to mount.
|
|
Color:
|
Gross Black
|
|
Screen Adapter:
|
Mounting Pattern: 17.7" W x 18.2" H (450 x 400 mm)
VESA Pattern: 200 x 100, 200 x 200, 400 x 200 and 400 x 400 mm
|
|
Distance From Wall:
|
1.1" - 23.8" (28 - 604 mm)
|
|
Tilt:
|
+15/-5°
|
|
Swivel:
|
±90°
|
|
Roll:
|
±5°
|
|
Maximum Load:
|
60 lb (27 kg)
|
|
Product Dimensions
(W x H x D):
|
20.15" x 16.06" x 1.1" - 23.86" (511 x 408 x 24 - 606 mm)
|
|
Mounting Surfaces:
|
Wood stud, concrete and cinder block
|
|
Ship Weight:
|
19.2 lb (8.7 kg)
|
|
|
|
|
|
|
|
|
