Peerless SUA750PU or SUA750PU-S Slimline Ultra-Thin Articulating Wall Mount for 37-55" LCD Flat Panel

This product has been discontinued.

Accessories for Peerless SUA750PU Articulating Wall Arm

Peerless ACC925 Security Fasteners Black

General Information


Buy from an Authorized Dealer

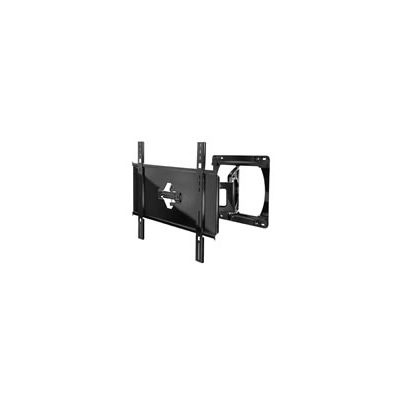

Peerless SUA750PU Slinline Articulating Wall Mount Arm

for 37 to 55 inch Ultra-thin Screens up to 100 lbs

Peerless SUA650PU Slinline Articulating Wall Mount Arm

Features of Peerless SUA 750PU:

1. Arm retracts to 1" (28 mm) and extends up to 28.9" (734 mm) from wall.

2. One-touch tilt allows adjustment of +15/-5° without the use of tools.

3. Up to ±90° of side-to-side swivel.

4. ±5° of roll to level screen horizontally.

Technical Drawings for Peerless SUA750PU Slinline Articulating

Wall Mount Arm for 37 to 55 inch Ultra-thin Screens

Technical Drawing for Peerless SUA650PU Slinline Articulating Wall Mount Arm

Description of Peerless SUA-750PU:

The world's thinnest articulating TV mount transforms the viewing experience from ordinary to extraordinary. Ultra-thin TVs give the room a decidedly contemporary look, but only when married to an ultra-slim mount that allows to maintain the ultra-thin aesthetic and still position the TV at the best viewing angle. Brilliant in its simplicity and ease of installation, the mount's functionality is optimized through its remarkable arm extension and swiveling hinge. Now you can create the perfect viewing angle and truly achieve the ultra-thin experience at the same time.


Specifications:
Model:	SUA750PU - Includes standard hardware (hex or Phillips) for attaching screen to mount.
Color:	Gross Black
Screen Adapter:	Mounting Pattern: 31.9" W x 18.25" H (810 x 463 mm) VESA Pattern: 200 x 100, 200 x 200, 400 x 200 and 400 x 400 mm
Distance From Wall:	1.1" - 28.9" (29 - 734 mm)
Tilt:	+15/-5°
Swivel:	±90°
Roll:	±5°
Maximum Load:	100 lb (45 kg)
Product Dimensions (W x H x D):	35.21" x 19" x 1.1" - 28.9" (894 x 483 x 29 - 734 mm)
Mounting Surfaces:	Wood stud, concrete and cinder block
Ship Weight:	26.5 lb (11.7 kg)

More Images:

Peerless SUA650PU Slinline Articulating Wall Mount Arm application
