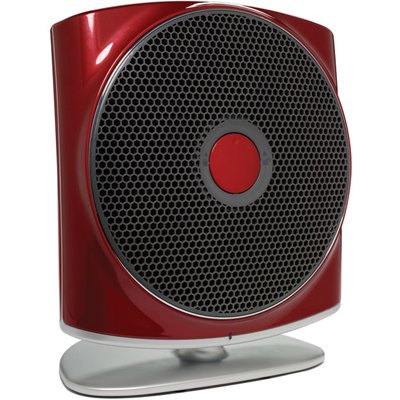

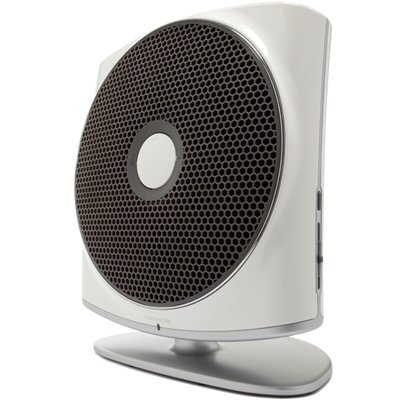

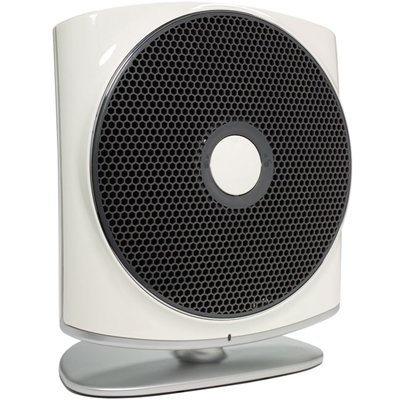

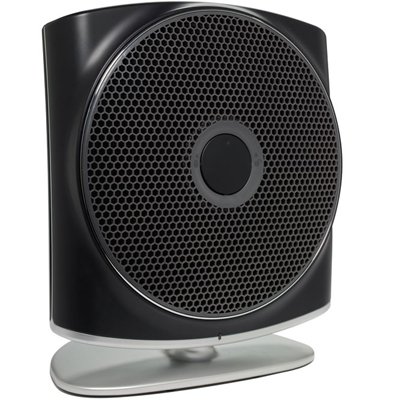

Humanscale Zon Personal Air Purifier

|
|
|
Humanscale Zon Personal Air Purifier Solution:
|
With patented technology, Humanscale's ZON personal air purifier does what no other air purifier can do: surround the user in a bubble of air that’s free of pollutants, dust and biological contaminants while boasting silent, breeze-free and ozone-free operation. A much-needed solution for improving indoor air quality, ZON removes more than 99 percent of airborne particles of all sizes for the cleanest possible air.
The ZON personal air purifier uses the most effective air purifying technology in the world. Originally developed in Sweden for industrial air cleaning applications, ZON’s patented technology does what no other air purifier can do: surround the user in a bubble of ultra pure air to create a ‘Clean Air Zone.’
|
|
|
Features of Humanscale Zon Personal Air Purifier:
|
|
|
|
|
|
|
|
|
|
|
|
Specifications of Humanscale Air Purifier:

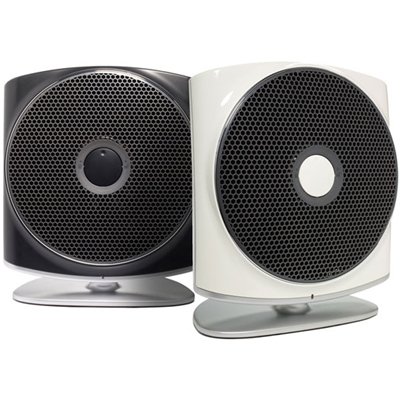

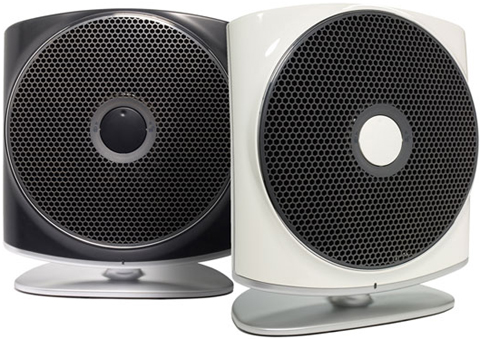

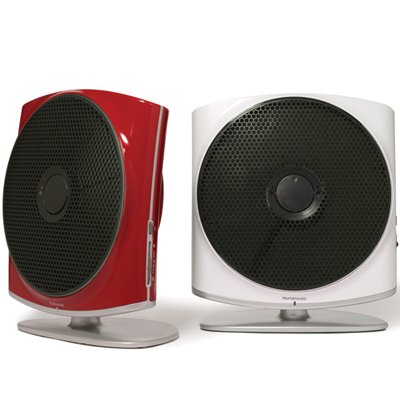

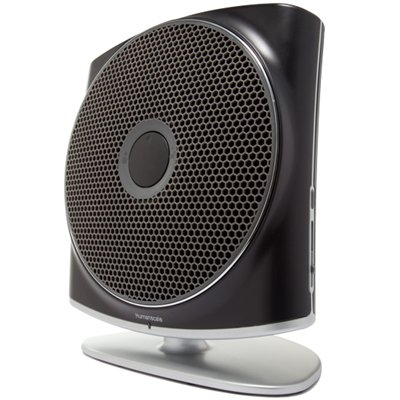

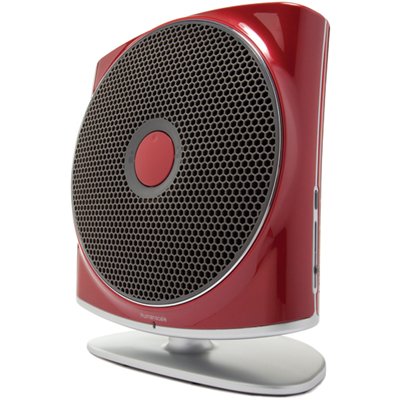

Colors:
|
Black, White, Metallic Red
|
DEP Technology:
|
Employs patented DEP Technology
|
Mounting Options:
|
Tabletop base, wall or slatwall
|
Power:
|
A maximum of 23 watts of power and only 7 watts on 'Zone' setting
|
Clean Air Delivery Rate (CADR):
|
115
|
Dimensions (with base):
|
13" wide x 9" deep x 14" high
|

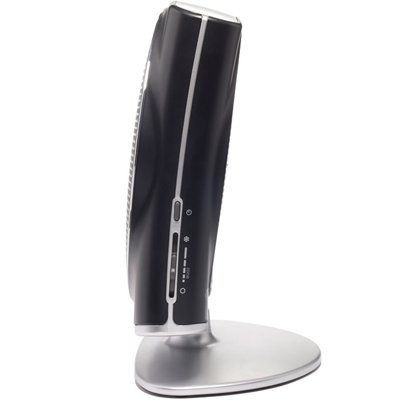

Unit Thickness:
|
3.5" |
Weight:
|
6.6 lbs
|
Contribution:
|
May contribute to a number of LEED-CI, -NC and -EB credits
|
Warranty:
|
3-year warranty covers all parts except replaceable filters.
|
|
|
|
Sustainability:
|
- Only air purifier to offer recyclable air filters.
|
- Significantly smaller and lighter than units with comparable output.
|
- 2.5 times more efficient than Energy Star requirements.
|
- Consumes just 23 watts of power.
|
|
|
The Indoor Air Crisis:
|
Air quality is an integral component of a healthy indoor environment, yet it’s often overlooked to the detriment of people’s health and well-being.
Indoor air pollution is among the top five most urgent environmental threats to public health - U.S. Environmental Protection Agency.
Since 1995, allergy rates in the U.S. have increased by 140% to 60 million sufferers - Asthma & Allergy Foundation of America.
25 million Americans have asthma, including 7 million children. – American Lung Association.
|
|
|

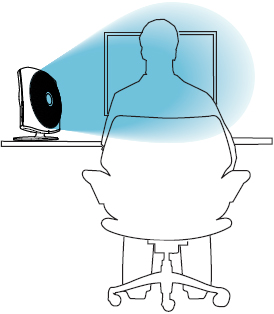

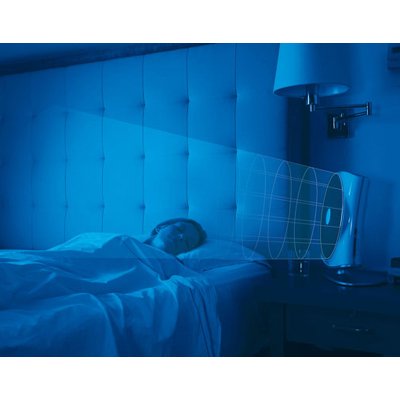

Inside the Clean Air Zone:
|
Maximum Efficiency:
By purifying air in a targeted way, room size becomes irrelevant and no energy is wasted cleaning air in unoccupied spaces. Quite simply, ZON creates clean air where it’s needed most right where the user breathes.

Maximum Efficacy:
The ZON personal air purifier silently and unobtrusively filters out more than 96% of airborne contaminants of all sizes dust, smoke, bacteria, allergens, smog, viruses, and even Volatile Organic Compounds (VOCs) like formaldehyde for the cleanest air possible.

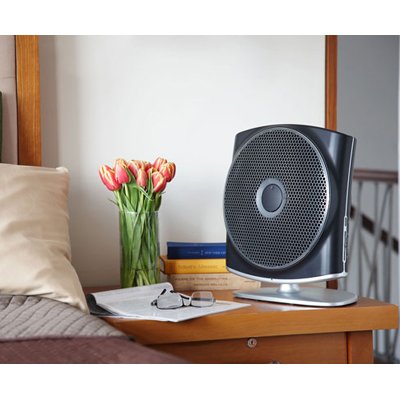

And more importantly, it promotes health from the inside out. At home, users and their families are able to breathe the freshest air wherever they are in bed, watching TV or sitting in front of the computer. And workers feel better on the job for maximum performance and productivity.
|
|
|

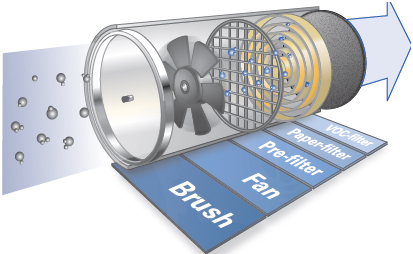

How It Works:
|
ZON’s patented technology renders other air purifiers obsolete. Consuming just 23 watts of power, it utilizes a tightly coiled paper filter that offers far more surface area than any other air purifying technology, allowing it to more easily capture airborne contaminants. Plus, it operates in virtual silence, produces no ozone and creates no noticeable draft.

-
An electric field charges all particles that enter the system.
-
Four fans move a high volume of air slowly and quietly through the unit.
-
The Pre-filter catches larger airborne particles such as dust.
-
Charged particles adhere to the oppositely charged paper surface like a magnet.
-
The gas-phase VOC filter removes Volatile Organic Compounds and odors.
|
|
|
Reduce, Reuse:
|
After approximately 6 months of use in a typical environment, the ZŌN personal air purifier’s paper filter can either be replaced or vacuumed clean for reuse. And when it’s time for replacement, the filter can be easily recycled with other paper products.
|
|
|
Option 1 : Color
|
|
|
