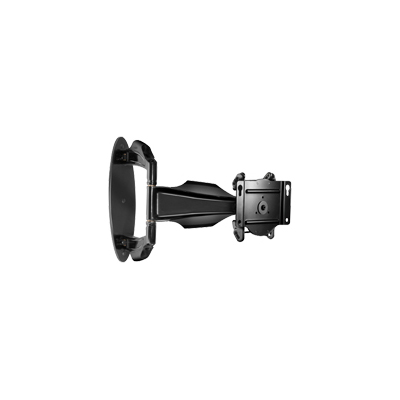

Peerless SA752P or SA752P-S Dedicated Articulating Wall Mount Arm
for 32" to 52" Flat Panel Screens
FeaturesofPeerless SA 752P:
1. Universal design provides compatibility for 32" to 52" flat panel screens (additional screen
adapter plate required - sold separately).
2. Screen can be held as close to the wall as 4.43" (113mm) or be extended as far as 27.43"
(697mm).
3. Integrated cable management contains, protects and conceals cables for a clean clutter-free
look.
4. One-touch tilt allows for +15°/-5° without the use of tools for easy viewing angle adjustment.
5. Multi-link construction allows for a full 180° range of motion.
6. Screen can be swiveled a full 90°.
7. ±5° of roll allows for post installation leveling.
8. Screen can be rotated from portrait to landscape without removing the screen for easy
orientation changes.
9. 1" (25mm) vertical adjustment for screen position fine tuning.

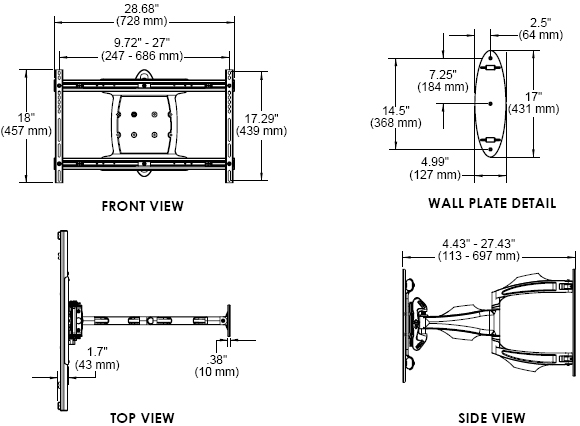

Technical Drawings forPeerless SA752P or SA752P-S Dedicated Articulating Wall Mount Arm for 32" to 52" Flat Panel Screens
Description of Peerless SA-752P:
From any angle, this wall arm mount reflects remarkable form and function. Extending the flat panel screen up to 27.43" from the wall and allowing for a full 180 degrees of side-to-side motion for perfect view positioning of screens up to 52". Fine-tuning of the installation is simple with its side-to-side screen leveling and 1" of vertical adjustment features that help achieve perfection. This articulating arm also provides screen centering on the wall plate and integrates a desirable cable management system, centering the flat panel on the wall when retracted and organizing and protecting the cables. Designed and built in the USA, this mount maintains the same brilliant look as the entire SmartMount 700 Series line of Articulating and Pivot Wall Arm Mounts.
Specifications:
Colors:
High Gross Black and High Gloss Silver
Screen Adapter
(VESA Pattern):
Requires screen-specific PLP or LC adapter to be purchased separately
Distance From Wall:
2.73" - 25.73" (69 - 654 mm)
Tilt:
+15/-5°
Swivel:
±90°
Roll:
±5°
Maximum Load:
90 lb (41 kg)
Product Dimensions
(W x H x D):
15.2" x 17" x 2.73" - 25.73" (386 x 431 x 69 - 654 mm)
Mounting Surfaces:
Wood stud, concrete, cinder block and metal stud
(Metal stud accessory required)
Ship Weight:
33 lb
Literature(Please open the following documents for more technical information)
