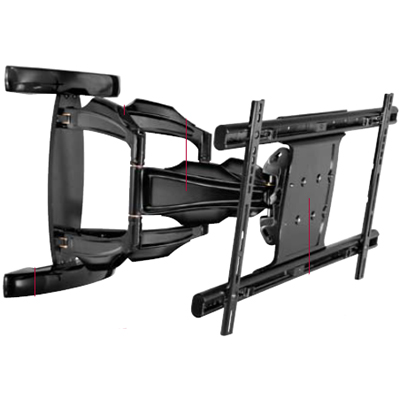

Peerless SA763PU or SA763PU-S Universal Articulating Wall Mount Arm
for 37" to 63" Flat Panel Screens
FeaturesofPeerless SA 763PU:
1. Universal design provides compatibility for 37" to 63" flat panel screens with mounting patterns
up to 27" x 17.29" (686 x 439mm).
2. Screen can be held as close to the wall as 4.55" (116mm) or be extended as far as 27.55"
(700mm).
3. Integrated cable management contains, protects and conceals cables for a clean clutter-free
look.
4. One-touch tilt allows for +15°/-5° without the use of tools for easy viewing angle adjustment.
5. Multi-link construction allows for a full 180° range of motion.
6. Screen can be swiveled a full 90°.
7. ±5° of roll allows for post installation leveling.
8. Screen can be rotated from portrait to landscape without removing the screen for easy
orientation changes.
9. 1" (25mm) vertical adjustment for screen position fine tuning.
Technical Drawings forPeerless SA763PU or SA763PU-S Universal Articulating Wall Mount Arm for 37" to 63" Flat Panel Screens
Description of Peerless SA-763PU:
From any angle, this wall arm mount reflects remarkable form and function. Extending the flat panel screen up to 27.55" from the wall and allowing for a full 180 degrees of side-to-side motion for viewing in any part of the room. Fine-tuning of the installation is simple with its side-to-side screen leveling and 1" of vertical adjustment features that help achieve installation perfection. This articulating arm also provides screen centering on the wall plate and integrates a desirable cable management system, centering the TV on the wall when retracted and organizing and protecting the cables at all times. Designed and built in the USA, this mount maintains the same brilliant look as the entire SmartMount 700 Series line of Articulating and Pivot Wall Arm Mounts.
Specifications:
Colors:
High Gross Black and High Gloss Silver
Screen Adapter (Mounting Pattern):
27" W x 17.29" H (686 x 439 mm)
Screen Adapter
(VESA Pattern):
up to 800 x 400 mm
Distance From Wall:
4.43" - 27.55" (113 - 700 mm)
Tilt:
+15/-5°
Swivel:
±90°
Roll:
±5°
Maximum Load:
200 lb (91 kg)
Finish:
Scratch resistant fused epoxy
Product Dimensions
(W x H x D):
28.68" x 20.23" x 4.43" - 27.55" (728 x 514 x 113 - 700 mm)
Product Weight:
50 lb (23 kg)
Mounting Surfaces:
Wood stud, concrete, cinder block and metal stud
(Metal stud accessory required)
Package Size
(W x H X D):
35.75" x 21.25" x 5.625" (908 x 540 x 143 mm)
Package Ship Weight:
55 lb (25 kg)
Package Contents:
Mount, wall and screen attachment hardware, installation instructions
Units in Package:
1
