Chief PSM2390 Custom Flat Panel Fixed TV Wall Mount (32-65")

This product has been discontinued.

Description

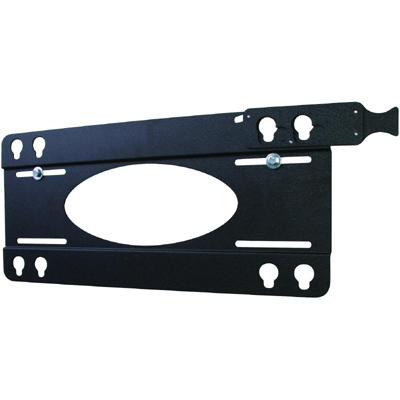

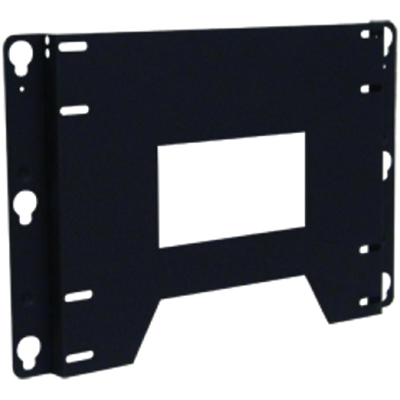

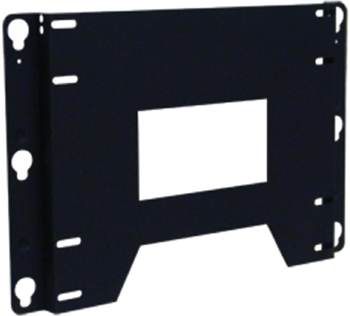

Chief PSM2390 ultimate custom fixed wall display mount solution for flat panel TVs. An ultra low profile display mount that provides key features and functionality.

Unique, one-piece custom bracket that cuts installation time and provides the slimmest fit possible
Sturdy steel construction
Seismic rated for safer installation
Model PSMH for screens weighing more than 175 lbs (79.5 kg)

Technical Drawing

Technical Drawing for Chief PSM2390 Custom Flat Panel Fixed TV Wall Mount (32-65")

Features

Custom one-piece bracket design
UL listed for proven strength
Seismic rated for safer installations
Sturdy steel construction. Wall mount uses more surface area for balance and stability
Low profile - 1" standard mount depth (may vary) - mount designed to meet manufacturer requirements for more/less airspace
Offers quick installation and quick release
Display installs in landscape view only
Exclusive Q-Latch Mounting System secures the Large Flat Panel Display with a lockable latch
Multiple accessories provide solutions for even the most difficult installation
Compatible with locking flag accessories (PAC130, PAC135)

Technical Specifications

Certifications	TÜV Certified
Color	Black
Lateral Shift	Varies per product
Minimum Depth	Varies per product (approximately 1")
Orientation	Landscape
Shipping Weight	11 lbs
Solution Type	Custom
Typical Screen Sizes	32 - 65"
Weight Capacity	175 lbs (79.4kg)
