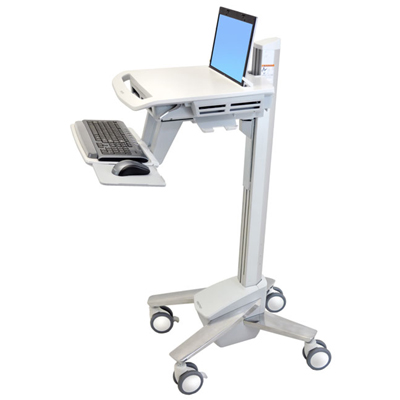

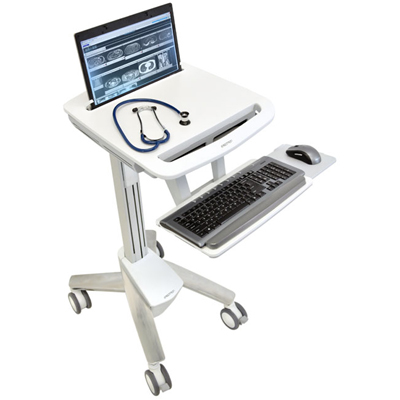

Ergotron SV40-40001 StyleView EMR Laptop Cart for Mobile Medical Applications

     LCD Size

 Wt. Capacity

     Lift

Tilt

Pan

Rotation

VESA

up to 17"

up to 18 lbs
8 kg

20"
51 cm

-

-

Product Information:

Part Number:

SV40-40001

Description:

StyleView EMR Laptop Cart, Nonpowered, SV40 (white, grey and polished aluminum)

Included:

• Worksurface

• Secure laptop compartment

• Mouse holder

• Wrist rest

• Back-tilt keyboard tray

• Left/right mouse tray

• Cable storage

• Four casters (two locking)

Maximum Laptop Size:

15.5" W x 14.75" D x 2" H (393 x 375 x 51 mm)

Weight Capacity:

Total maximum load on height-adjustment assembly = 18 lbs (8 kg).

This is the sum of the following components: worksurface = ≤ 5 lbs (2.3 kg), keyboard tray = ≤ 3 lbs (1.4 kg) and laptop compartment = ≤ 10 lbs (4.5 kg)

Laptop and Worksurface:

Laptop and worksurface adjust 20" (51 cm) in tandem

True Ergonomics:

• Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity

• Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. Unlike competitive offerings, shorter users can work comfortably and productively in a seated position

• Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters and height adjustment require just a touch

• Actual cart weight is just 50 lbs (22.7 kg), making system relocation easy

Safe:

• Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

• Tested to UL/EN/IEC specifications for enhanced patient safety

• Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control

• One-piece worksurface with no seams; easy-to-clean design promotes infection control

• Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty

• Front-locking casters

• Designed to meet guidelines established by the American National Standards Institute for computer use

Service:

Covered by Global Service Program - 24/7 coverage

All the Details Covered:

• Notebook screen holders: Prevents the notebook screen from vibration for less damage to hinges over time

• Universal mounting slot for accessories and equipment

• A unique cable management system conceals and organizes cords, making cleaning easy

• Ships fully assembled and is easily accessible from container

• Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability

Compatibility and Dimensions:

• Open-architecture design accommodates most laptops - even widescreen and allows for future hardware upgrades

• Laptop Holder Internal Dimensions: 16" W x 14.9" D x 2.5" H (406 x 378 x 64 mm)

• Compact Wheel-to-Wheel Base Dimensions: 17" x 21" (430 x 533 mm)

• Worksurface Dimensions: 19.75"W x 19.6"D (502 x 498 mm)

Shipping Dimensions:

31" H x 21" W x 52" D (79 x 54 x 133 cm)

Shipping Weight:

77 lbs (35 kg), actual cart weight = 50 lbs (22.7 kg)

Warranty:

Five (5) years

Literature (Please open the following documents for more technical information)
