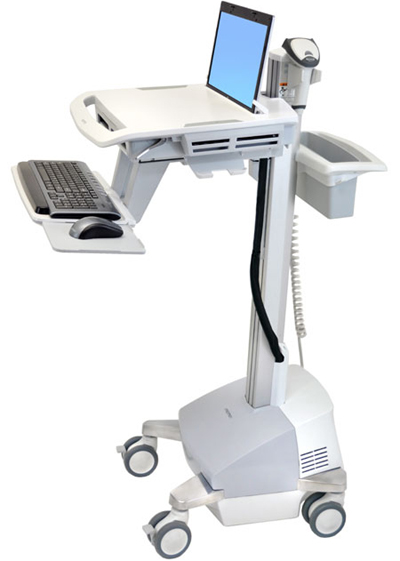

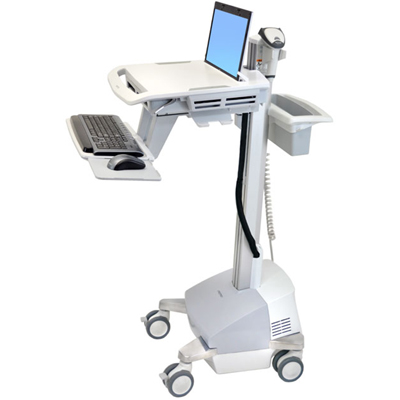

Ergotron SV42-42102 StyleView EMR Notebook Powered Cart for Healthcare (white, grey and polished aluminum) SV4242102
|

|
|
|
Description of Ergotron SV42-42102 EMR Cart:
|
Order part number that coincides with regional power system requirements: North America = SV42-42102; Europe = SV42-42104; UK/IE = SV42-42106.
Stay productive and on the go with our certified power system. This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment and an adjustable back-tilt keyboard tray.
|
|
|
|

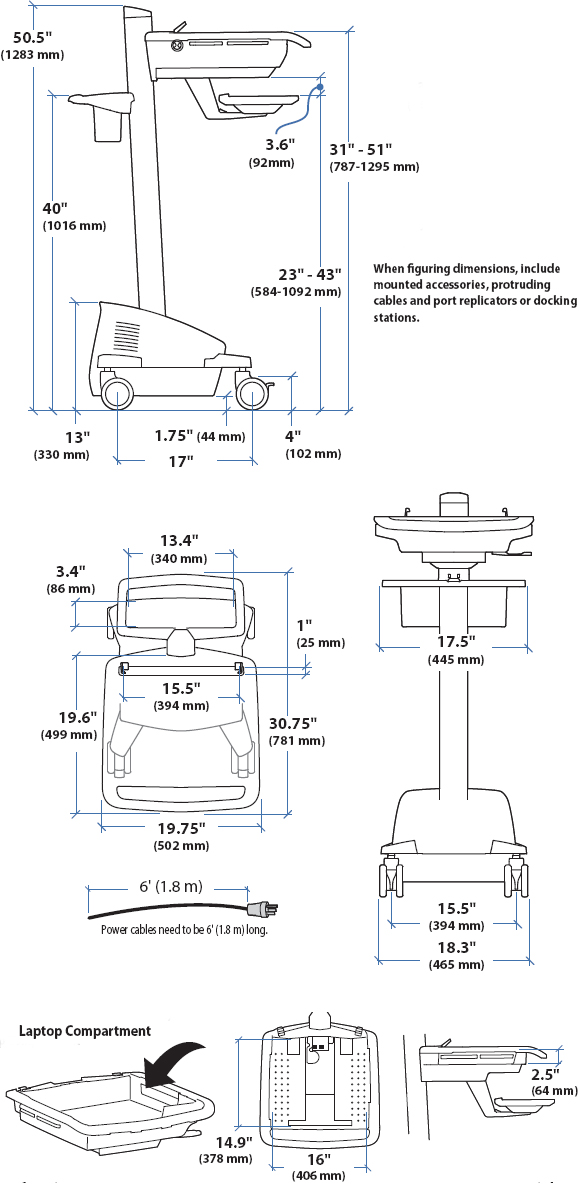

Technical Drawing for Ergotron SV42-42102 StyleView EMR Notebook Cart

|
|
|
|
Technical Specifications:
|

|

|

|

|

|

|

|
LCD Size
|
Wt. Capacity
|
Lift
|
Tilt
|
Pan
|
Rotation
|
VESA
|
up to 17"
|
up to 18 lbs
8 kg
|
20"
51 cm
|
- |
- |
-
|
-
|
|
|
|
Product Information:
|
Part Number:
|
North America = SV42-42102
Europe = SV42-42104
UK/Ireland = SV42-42106
|
Description:
|
StyleView EMR Laptop Cart, Powered (white, grey and polished aluminum)
|
Included:
|
-
Worksurface
-
Secure laptop compartment
-
Ethernet ready-on function and four-port USB hub
-
Scanner holder bracket
-
Mouse holder
-
Wrist rest
-
Back-tilt keyboard tray
-
Left/right mouse tray
-
Rear handle
-
Storage basket
-
Cable storage
-
Four casters (two locking)
-
Two-battery 66 Ah power system
-
10-foot (3 m) coiled cord
-
Four hospital-grade AC outlets
-
Power system user interface
-
StyleLink software
|
Maximum Laptop Size:
|
15.5" W x 14.75" D x 2" H (393 x 375 x 51 mm)
|
Weight Capacity:
|
Total maximum load on height-adjustment assembly = 18 lbs (8 kg).
This is the sum of the following components: worksurface = ≤ 5 lbs (2.3 kg), keyboard tray = ≤ 3 lbs (1.4 kg) and laptop compartment = ≤ 10 lbs (4.5 kg)
|
Laptop and Worksurface:
|
Laptop and worksurface adjust 20" (51 cm) in tandem
|
True Ergonomics:
|
-
Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
-
Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. Unlike competitive offerings, shorter users can work comfortably and productively in a seated position
-
Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters and height adjustment require just a touch
-
Actual cart weight is just 125 lbs (57 kg), making system relocation easy
|
Safe:
|
-
Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the power system is certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90, as well as NFPA leakage current limits; FULL cart-level certification is in progress
-
Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)
-
Power system complies with EMI limits of FCC Part 15 Class A
-
Surfaces are treated with Agion Antimicrobial for product protection; handles are smooth and continuous for improved cleanability
-
Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
-
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
-
One-piece worksurface with no seams; easy-to-clean design promotes infection control
-
Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty
-
Front-locking casters
-
Designed to meet guidelines established by the American National Standards Institute for computer use
|
Service:
|
-
Includes FREE StyleLink with enterprise capabilities - Install, access and manage your StyleView power systems from a remote location across WAN, LAN, or VPN. StyleLink’s three-part software package maximizes your IT tech-support time by giving you real-time centralized control over carts across campus, the city, country or the world
-
Covered by Global Service Program - 24/7 coverage
|
All the Details Covered:
|
-
Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
-
Button for LED lights and Ethernet ready-on is located conveniently on worksurface
-
Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time
-
Notebook screen holders: Prevents the notebook screen from vibration for less damage to hinges over time
-
Pre-routed cables provide quicker integration with equipment
-
TAA (Trade Agreements Act) compliant
-
Universal mounting slot for accessories and equipment
-
A unique cable management system conceals and organizes cords, making cleaning easy
-
Ships fully assembled and is easily accessible from container
-
Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability
|
Compatibility and Dimensions:
|
-
Open-architecture design accommodates most laptops - even widescreen and allows for future hardware upgrades
-
Laptop Holder Internal Dimensions: 16" W x 14.9" D x 2.5" H (406 x 378 x 64 mm)
-
Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)
-
Worksurface Dimensions: 19.75" W x 19.6" D (502 x 498 mm)
-
Power System:
SV42-42102 = 120V/60Hz, 66Ah;
SV42-42104, SV42-42106 = 230V/50Hz, 66Ah
-
Grounded Plug & Outlet:
SV42-42102 = NEMA 5-15P Hospital Grade;
SV42-42104 = European CEE 7;
SV42-42106 = UK BS 1363
|
Shipping Dimensions:
|
24" W x 32" D x 56" H (61 x 81 x 142 cm)
|
Shipping Weight:
|
158 lbs (71.7 kg); actual cart weight = 125 lbs (57 kg)
|
Warranty:
|
Five (5) years
|
|
|
|
|
Benefits of Ergotron SV42-42102:
|
1. Effortlessly maneuver the cart to the point of need - StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients.
|
2. Truly ergonomic design accommodates the largest range of nurses and other caregivers;designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity.
|
3. StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas.
|
4. Surfaces are treated with Agion Antimicrobial for product protection.
|
5. Open-architecture design accommodates most laptops - even widescreen - easing future hardware deployments and upgrades.
|
6. Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the power system is certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90, as well as NFPA leakage current limits; FULL cart-level certification is in progress.
|
7. Push-button Ethernet ready-on function embedded in worksurface: Awaken enclosed computer from energy-saving hibernation mode with the touch of an external button - facilitates easy compliance with EnergyStar 4.0 guidelines.
|
|
