Ideal for touch down and small workstation areas meant to support multiple operators each hour, day or week. Move makes sit-to-stand performance even more affordable. Choose among several corner and rectilinear shapes and sizes that support different workers, equipment or office space needs. Move tables ship flat packed to reduce freight costs and are easy to assemble.

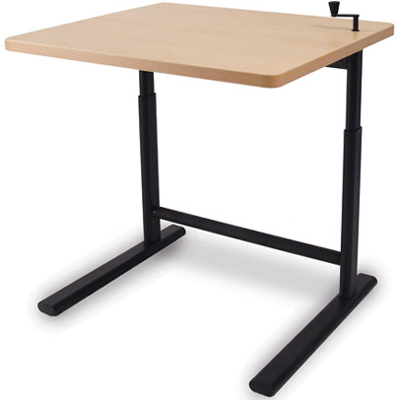

SIS MOVE Crank DeskDescription:
The move crank tables are designed to meet a user seated adjustability needs at an economical price range. The durable steel frame and feet are manufactured in 14 gauge oval tube with welded construction. Each upright leg encapsulates an individual worm gear mechanism that is transversed by a high performance self-lubricating bicycle chain for operation. The crank handle is top mounted by the user to maintain a neutral wrist position during raising or lowering. The only cross member is cantilevered to the rear of the frame and covered with a rubber material for additional use as a foot rest. All tables are cycle tested and static load tested to meet or exceed the required ANSI-Bifma standards.

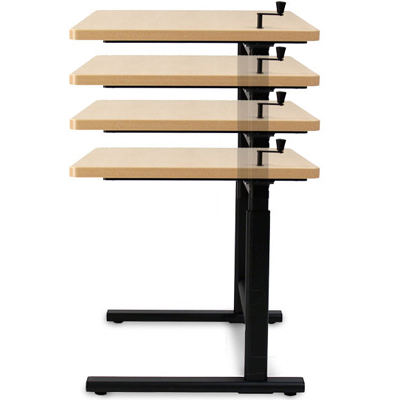

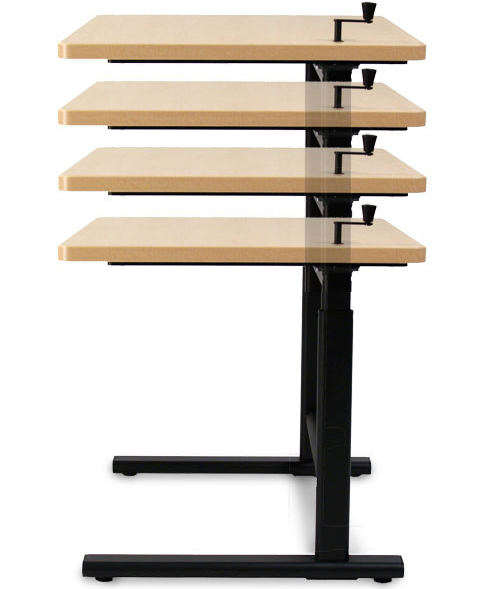

Height Adjustment (23" - 35.5") of MOVE Crank Rectangle Table:
MOVECrank Table Specification Guide:
Adjustment:
Crank
Height Range:
Single Surface: 23" - 35.5"
Weight Load:
400 lb static weight load
220 lb operational load on CRANK
Leg Style:
Cantilevered 2 leg (crank)
Upgrades:
Casters, leg mounted CPU holder, computer shelf and voice data receptacles
Model 1607 - 30" W x 24" D x 23" - 35.5" H, Weight - 54 lbs Surface Dimensions
Model 1608 - 36" W x 24" D x 23" - 35.5" H, Weight - 58 lbs Surface Dimensions
Model 1609 - 42" W x 24" D x 23" - 35.5" H, Weight - 62 lbs Surface Dimensions
Model 1614 - 55" W x 24" D x 23" - 35.5" H, Weight - 79 lbs Surface Dimensions
Model 1615 - 60" W x 24" D x 23" - 35.5" H, Weight - 82 lbs Surface Dimensions
Model 1705 - 30" W x 30" D x 23" - 35.5" H, Weight - 59 lbs Surface Dimensions
Model 1706 - 36" W x 30" D x 23" - 35.5" H, Weight - 65 lbs Surface Dimensions
Model 1709 - 42" W x 30" D x 23" - 35.5" H, Weight - 70 lbs Surface Dimensions
Model 1714 - 55" W x 30" D x 23" - 35.5" H, Weight - 89 lbs Surface Dimensions
Model 1715 - 60" W x 30" D x 23" - 35.5" H, Weight - 94 lbs Surface Dimensions
Option 2:Crank Handle:
On Top-Right Side
(The handle is removable and inserts in a hole of the right side of the table top)
Crank Operation: Low profile corrugated steel channel spans horizontally under the surface and houses a crank controlled self-lubricating chain for smooth adjustment.
Option 3:Choose yourBase Frame Color:
12 Charcoal
18 Aluminum
Option 4:Choose yourLaminate Top Color:
Important Note (Disclaimer): Color representation may vary by individual computer monitor from the actual final laminate product or edge treatment color. For maximum fidelity, please order a sample to ensure proper color match. Custom laminate finishes from other manufacturers available. Additional charges may apply. Please contact [email protected] for price quotation.
SL10
Kensington Maple
SL11
Wild Cherry
SL12
River Cherry
SL13
New Age Oak
SL14
White Nebula
SL15
Fashion Gray
SL16
White Tigris
SL17
Silicon EV
SL18
Nickel EV
SL19
Tungsten EV
SL20
Natural Tigris
SL21
Shadow
SL22
Desert Zephyr
SL23
Canyon Zephyr
SL24
North Sea
SL25
Carbon ev
SL26
Twilight Zephyr
SL27
Morro Zephyr
Option 5:Edge Treatments:
ED11
Charcoal
ED12
Light Gray
ED13
Birch
ED14
Graphite
ED15
North Sea
ED16
Fusion Maple
ED17
Storm
Option 6:Casters:
The following caster is available:
8997: Black 2" Locking Casters with Spacers (set of 6)
Option 7:Wire Management:
Universal vertical spine keeps cords and wires held neatly in place, weighted floor base. Universal twist ties are black with silver ends; includes 5 per package. Available in black only.
Model
Description
6630002
Cyclical slinky channel (10" W x 10" D x 60" H)
6630001
Slinky wire kit: 3 rails, 12 clips
4960
Wire twist tie (Weight: 1 lb)
Model 4960
Model 663002
Literature(Please open the following documents for more technical information)
