SIS Move Electric Single Surface 90 degree Corner V-Base Height Adjustable Table

This product has been discontinued.

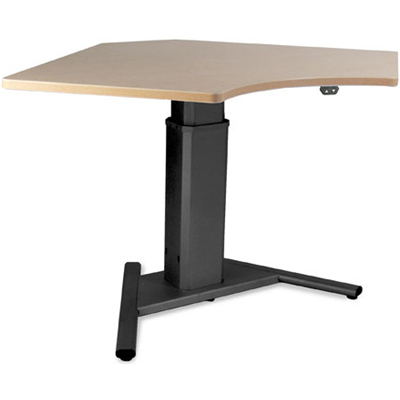

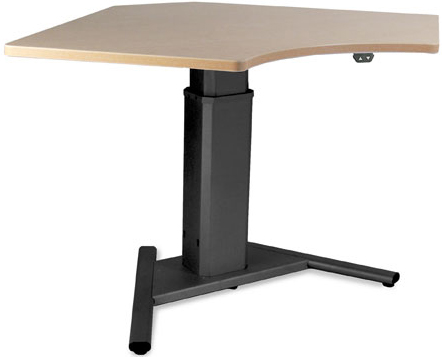

SIS Move 1632 or 1633 Electric 90° V-Base Single Surface Height Adjustable Workcenter

General Information

SIS Move1632 or 1633 Electric 90° V-Base Height Adjustable Desk and Ergonomic Table SIS MOVE Height Adjustable Workstation Description: Ideal for touch down and small workstation areas meant to support multiple operators each hour, day or week. Move makes sit-to-stand performance even more affordable. Choose among several corner and rectilinear shapes and sizes that support different workers, equipment or office space needs. Move tables ship flat packed to reduce freight costs and are easy to assemble. SIS MOVE Electric Workcenter Description: The single octagonal column Move electric table is created with durable steel with welded construction. Ease of movement during the transition from sit to stand range is enhanced and stabilized with eight roller bearings along the central shaft. The immediate response version is driven by two leaf springs creating linearity at all positions along the travel whether raising or lowering. The Move electric contains a power driven linear actuator which operates at 1.5" per second and lifts an operational load of 150 pounds. This model plugs into any 120 v outlet but operates through a transformer on 12 volt DC current. All tables are cycle tested and static load tested to meet or exceed the required ANSI-Bifma standards.

MOVE Electric Table Specification Guide:
Adjustment:	Electric
Height Range:	Single Surface: 26" - 45"
Weight Load:	400 lb static weight load 150 lb operational load on Electric
Leg Style:	Single column V-base
Upgrades:	Casters, leg mounted CPU holder, computer shelf and voice data receptacles
Assembly:	5mm allen wrench

Option 1: Choose your Surface Dimensions (Actual Size):

SIS Move Spring 90 degree surface dimension

Model 1632- 41" W (A) x 24" W (C) x 24" D (B) x 26" - 45" H, Weight- 108 lbs Surface Dimension

Model 1633- 47" W (A) x 32.5" W (C) x 24" D (B) x 26"-45" H, Weight- 118 lbs Surface Dimension

Option 2: Choose your Base Frame Color:

Base Frame Color - 12 Charcoal

12 Charcoal

Base Frame Color - 18 Aluminum

18 Aluminum

Option 3: Choose your Laminate Top Color:

Important Note (Disclaimer): Color representation may vary by individual computer monitor from the actual final laminate product or edge treatment color. For maximum fidelity, please order a sample to ensure proper color match. Custom laminate finishes from other manufacturers available. Additional charges may apply. Please contact [email protected] for price quotation.

SL10

Kensington Maple

SL11

Wild Cherry

SL12

River Cherry

SL13

New Age Oak

SL14

White Nebula

SL15

Fashion Gray

SL16

White Tigris

SL17

Silicon EV

SL18

Nickel EV

SL19

Tungsten EV

SL20

Natural Tigris

SL21

Shadow

SL22

Desert Zephyr

SL23

Canyon Zephyr

SL24

North Sea

SL25

Carbon ev

SL26

Twilight Zephyr

SL27

Morro Zephyr

Option 4: Edge Treatments:

Edge Color - ED11 Charcoal

ED11

Charcoal

Edge Color - ED12 Light Grey

ED12

Light Gray

Edge Color - ED13 Birch

ED13

Birch

ED14

Graphite

ED15

North Sea

Edge Color - ED16 Fusion Maple

ED16

Fusion Maple

Edge Color - ED17 Storm

ED17

Storm

Option 5: Casters:

The following caster is available:

Model	Description
8998	Black 3" Non Locking Casters for Spring and Electric Tables (set of 6) Weight - 125 lb/set

SIS Crank Locking casters

Model 8998

Option 6: CPU Holder:

CPU Holder mounts to 3 locations on move column, maximum load weight 30 lbs (Spring and electric only).

Model	Description
3800	CPU Holder (10" W x 12.75" D), Weight - 6 lbs

SIS MOVE CPU Holder

Model 3800

Option 7: Wire Management:

Universal vertical spine keeps cords and wires held neatly in place, weighted floor base. Universal twist ties are black with silver ends; includes 5 per package. Available in black only.

Model	Description
6630002	Cyclical slinky channel (10" W x 10" D x 60" H)
6630001	Slinky wire kit: 3 rails, 12 clips
4960	Wire twist tie (Weight: 1 lb)

4960 - Wire twist tie (Weight: 1 lb)

Model 4960

6630002 - Cyclical slinky channel (10" W x 10" D x 60" H)

Model 663002

Literature (Please open the following documents for more technical information)

Description	File Type
SIS MOVE Electric Single Surface Height Adjustable Workstation Guide	- pdf
SIS MOVE Laminate, Edge and Frame Color Options	- pdf
