Chief KITLSTU522 Large Thinstall Flat Panel Fixed Mounting Kit

This Kit includes one Thinstall LSTU Fixed Mount and one PAC522 Flat Panel Pre-Wire In-Wall Box
0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 16266
List Price: $249.00
Our Price: $160.00
Shipping: $11.00 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Chief KITLSTU522 Thinstall Flat Panel Fixed Mounting Kit for 37-63" Display



General Information



Image of Warranty and Returns





Nationwide Delivery Image

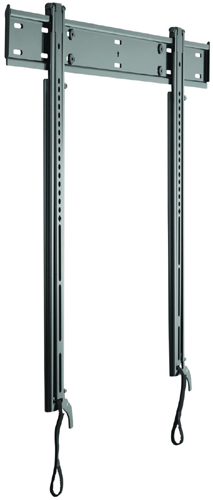

Chief KITLSTU522 Thinstall Flat Panel Fixed Mounting Kit for 37" to 63" Displays



Chief KITLSTU522 Thinstall Flat Panel Fixed Mounting Kit for 37" to 63" Displays









Features of Chief KITLSTU522:

    1.  Kit includes Thinstall LSTU Fixed Mount and PAC522 Flat Panel Pre-Wire In-Wall Box.



    2.  Ultra-thin depth, less than the width of a penny.



    3.  GlideLock provides tool-less latching for faster installation.



    4.  Provides lateral shift for increased flexibility.



    5.  Features a cable stand and bottom pullout for cable access.



    6.  In-wall box provides an organized, recessed space for routing excess cables and for attaching

         surge protectors/power conditioners.



    7.  NOTE: Check with flat panel manufacturer to ensure your particular TV can be installed 0.4"

      from wall.

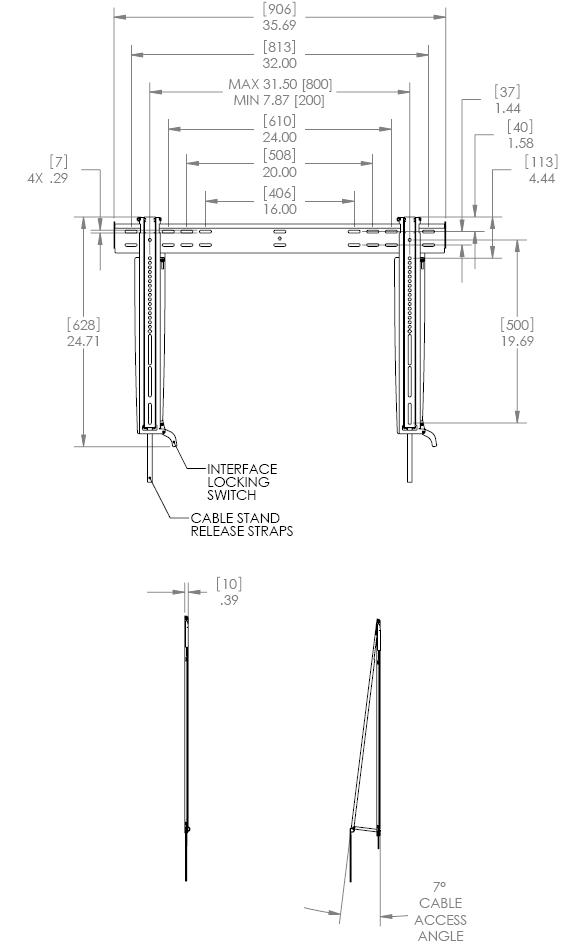

Technical Drawing for Chief LSTU Thinstall Fixed Wall Mount for 37"-63" Displays



Technical Drawing for Chief LSTU Thinstall Fixed Wall Mount for 37"-63" Displays





Technical Drawing for Chief PAC-522 Flat Panel Pre-Wire In-Wall Box



Technical Drawing for Chief PAC522 Flat Panel Pre-Wire In-Wall Box









Description of Chief KITLSTU522 Thinstall:

Simplify ordering and installation with this preconfigured flat panel mounting kit. Kit includes: (1) LSTU and (1) PAC522.







Specifications:

Depth from Wall:

0.39" (10 mm)

Hold Pattern:

200 x 200 mm to 800 x 500 mm

Weight Capacity:

125 lbs (56.7 kg)

Maximum Screen Thickness:

5" (127 mm)

Color:

Black







Literature (Please open the following documents for more technical information)

Description

File Type

Chief LSTU Thinstall Flat Panel Fixed Wall Mount for 37" to 63" Displays - Installation

- pdf

Chief LSTU Thinstall Universal Flat Panel Fixed Wall Mount - Technical Drawing

- pdf

Chief PAC522 Flat Panel Pre-Wire In-Wall Box - Installation Assembly

- pdf

Chief PAC-522 Flat Panel Pre-Wire In-Wall Box - Technical Drawing

- pdf











Chief Logo



Hyperlink of all Chief products



Model KITLSTU522
Manufacturer Chief Mounts
Part Number KITLSTU522
UPC 841872142937
