Chief KITMTTU522 Thinstall Flat Panel Tilt Mounting Kit for 26"-47" LCD LED Display
General Information
Chief KITMTTU522 Thin stall Flat Panel Tilt Mounting Kit for 26" to 47" Displays
Features of Chief KITMTTU522:
1. Kit includes Thinstall MTTU Tilt Mount and PAC522 Flat Panel Pre-Wire In-Wall Box.
2. Ultra-thin depth, provides 12° of fingertip tilt.
3. GlideLock provides tool-less latching for faster installation.
4. Provides lateral shift for increased flexibility.
5. Features a cable stand and bottom pullout for cable access.
6. In-wall box provides an organized, recessed space for routing excess cables and for attaching
surge protectors/power conditioners.
7. NOTE: Check with flat panel manufacturer to ensure your particular TV can be installed 0.75"
from wall.

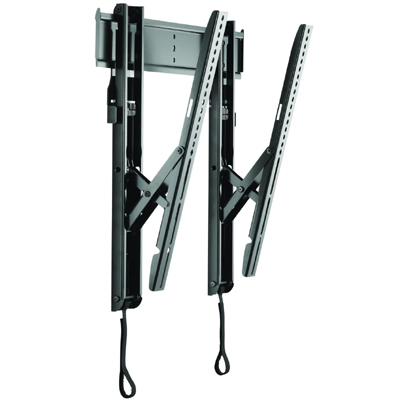

Technical Drawing for Chief MTTU Thinstall Tilt Wall Mount for 26"-47" LCD LED Displays
Technical Drawing for Chief PAC522 Flat Panel Pre-Wire In-Wall Box
Description of Chief KITMTTU522 Thinstall:
Simplify ordering and installation with this preconfigured flat panel mounting kit. Kit includes: (1) MTTU and (1) PAC522.
Specifications:
Depth from Wall:
0.75" (19 mm)
Tilt:
12°
Hold Pattern:
100 x 100 mm to 600 x 400 mm
Weight Capacity:
100 lbs (45.4 kg)
Maximum Screen Thickness:
2" (51 mm)
Color:
Black
