WorkRite FIN Fino Under Cabinet LED Light

This product has been discontinued.

Related Products:

Part Number	Description
FIN-24-P-ODC	Single Unit (24" Shelf Width, 19.25" Actual Fixture Length) Occupancy Sensor Daisy Chain
FIN-36-P-ODC	Single Unit (36" Shelf Width, 27.25" Actual Fixture Length) Occupancy Sensor Daisy Chain
FIN-48-P-ODC	Single Unit (48" Shelf Width, 35.25" Actual Fixture Length) Occupancy Sensor Daisy Chain
FIN-24-P-OCC	Single Unit (24" Shelf Width, 19.25" Actual Fixture Length) Occupancy Sensor No Daisy Chain
FIN-36-P-OCC	Single Unit (36" Shelf Width, 27.25" Actual Fixture Length) Occupancy Sensor No Daisy Chain
FIN-48-P-OCC	Single Unit (48" Shelf Width, 35.25" Actual Fixture Length) Occupancy Sensor No Daisy Chain
FIN-24-J	Single Unit (24" Shelf Width, 19.25" Actual Fixture Length) No Transformer Daisy Chain
FIN-36-J	Single Unit (36" Shelf Width, 27.25" Actual Fixture Length) No Transformer Daisy Chain
FIN-48-J	Single Unit (48" Shelf Width, 35.25" Actual Fixture Length) No Transformer Daisy Chain

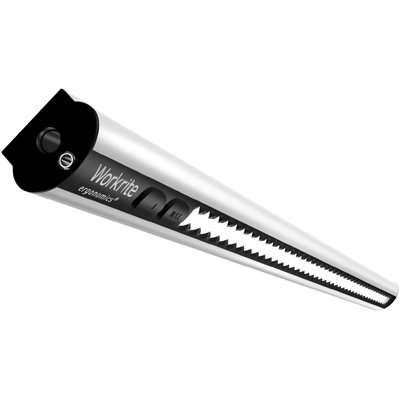

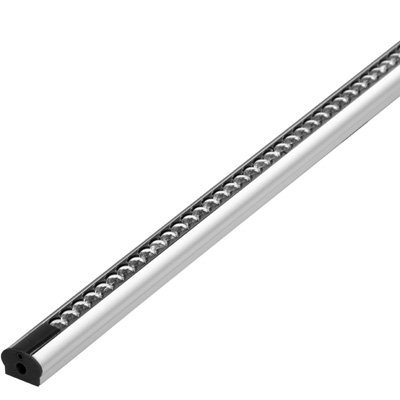

Workrite Fino Under-Cabinet LED Light

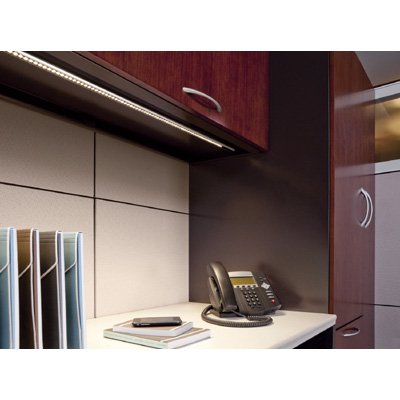

Workrite Fino Under Cabinet LED Task Lighting

Description of Workrite FINO:

Fino offers the endless possibilities of even, bright illumination, the flexibility to install everywhere and the environmental responsibility of LEDs.

The high quality of Fino’s light output is by design - the precision engineered optics feature polished acrylic lenses. Fino is the only fixture to exceed the rigorous requirements of the ENERGY STAR program and its optional occupancy sensor and continuous range dimming from 100% to 5% offer further energy savings.

Fino allows you to daisy chain up to 9 two foot units and control each fixture independently or with a single switch - the choice is yours. Fino - a new beginning in LED under-cabinet lighting.

Workrite Fino Under Cabinet LED Task Lighting

Specifications for Workrite Fino Under Cabinet LED Lighting

Specifications for Workrite Fino Under Cabinet LED Task Lighting

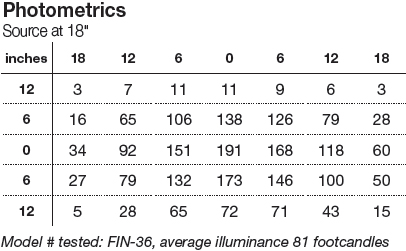

Photometrics for Workrite Fino Under Cabinet LED Task Light

Fino's user friendly features include

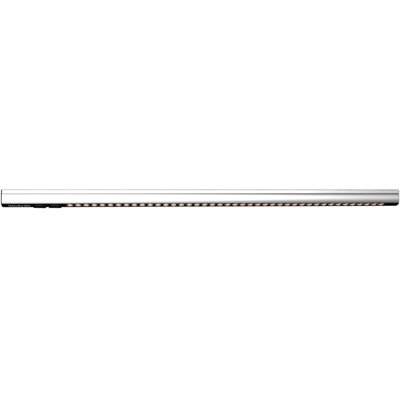

1. Three lengths: 24", 36", 48" (nominal).

2. Ultra-slim 1" × 5/8" profile, rotates +/-30°.

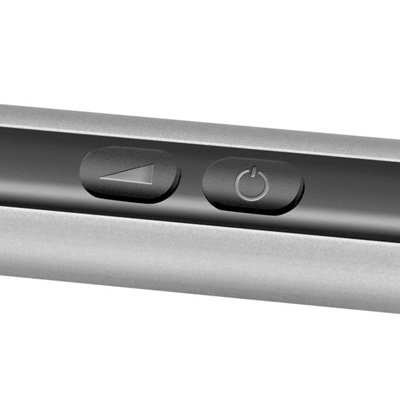

3. One touch controls with continuous range dimming to 5%.

4. Daisy Chain units can be controlled individually within chain.

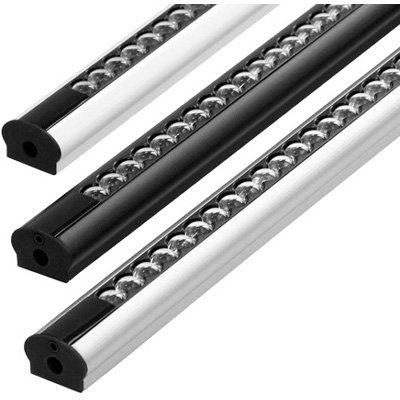

5. Available in 3 colors: Winter, Sterling and Carbon.

6. No upcharge for custom colors, 200 min.

7. Magnetic rotating and fixed mounts for rapid installation to steel shelving, wood shelf rotating

and fixed mounts included.

8. All mounts allow for lateral sliding adjustment.

9. Meets DOE Ergonomics Guidelines and IESNA RP-1-04 section 2.3 requirements for task lighting illuminance levels.

10. Color temperature: 3500K, CRI:85.

11. 50,000 hour, 20 year lifetime LEDs.

12. 10 year warranty; UL listed, cUL listed.

Wiring and Electrical:

1. LED Wattage: 24" 8.2W, 36" 12.3W, 48" 16.4W.

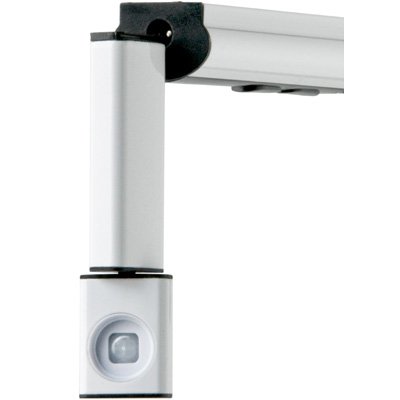

2. Passive infrared (PIR) Occupancy Sensor rotates 360°, 10' effective range.

3. Occupancy Sensor controls entire chain only and must connect to Master Switch provided, one per chain.

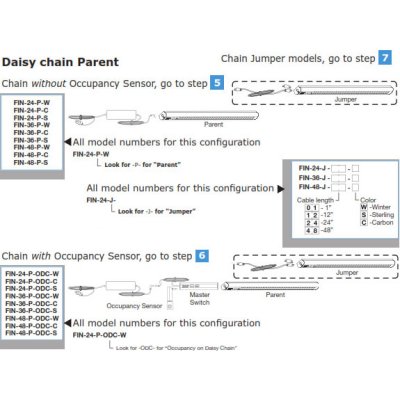

4. Specify 1", 12", 24" or 48" jumper cord for daisy chain units.

5. Consult factory to specify longer daisy chains or for varied length fixtures within same daisy chain.

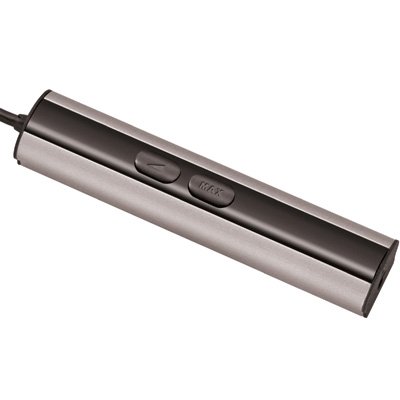

6. Master Switch connects to transformer with 54" cord and to first fixture with 1" jumper cord provided.

Environmental Considerations:

1. Post-consumer recycled packaging, bulk packaging optional.

2. Aluminum housing is fully recyclable.

3. Finish is VOC free, water-based paint.

4. Standby power <0.8W per fixture.

5. Exceeds ENERGY STAR requirements for lumens per watt; credential in process.

6. CA Title 24 compliant with Occupancy Sensor.

7. Fixture power consumption reduced 44% when dimmed to 50% illumination.

8. LEED credit eligibility (1-8 points).

9. Energy and atmosphere, credit 1.1 (1-3 points).

Optimize energy performance: lighting power

10. Energy and atmosphere, credit 1.2 (1 point).

Lighting controls

11. Innovation in design, credit 1.1-1.4 (1-4 points).

Implementation of comprehensive ergonomic program.
