Chief SMA-602 SMART-LIFT Pipe Adapter for Smart-Lift Projector Mounts
General Information

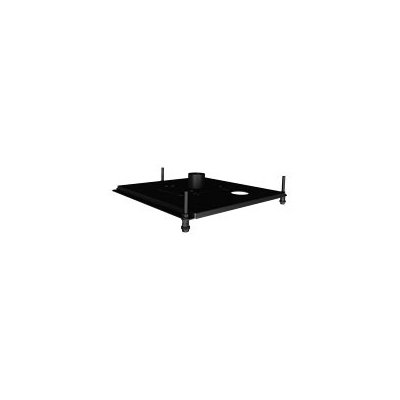

Chief SMA 602 SMART-LIFT Pipe Adapter for Smart-Lift Projector Mounts White
Features of Chief SMA602:
1. Connects SL151 to a 1.5" NPT extension column.
2. Mounting plate allows 3" (76 mm) fore/aft and left/right adjustments
3. Allows height adjustment for leveling
4. Provides slight yaw adjustment

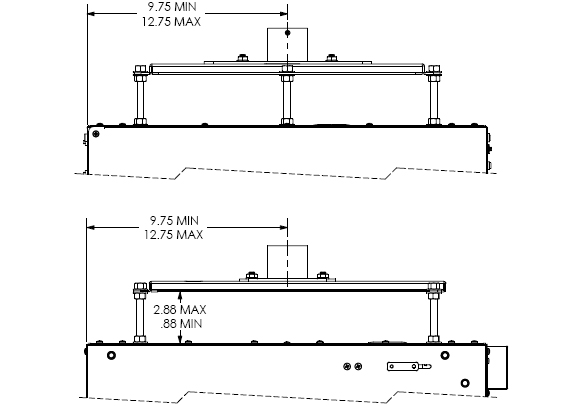

Technical Drawings for Chief SMA602 Smart Lift Pipe Adapter SMA-602
Description of Chief SMA-602:
The SMA602 allows you to attach Chief's Smart-Lift projector mounts to a 1.5” (38 mm) NPT threaded pipe for suspended ceiling mount applications.
Compatible with CMA100 and CMA110
Specifications:
Color:
White
Literature (Please open the following documents for more technical information)
Description
File Type
Chief SMA602 Smart-Lift Pipe Adapter White - Installation Assembly
- pdf
Chief SMA-602 SMART-LIFT Pipe Adapter - Technical Drawing
