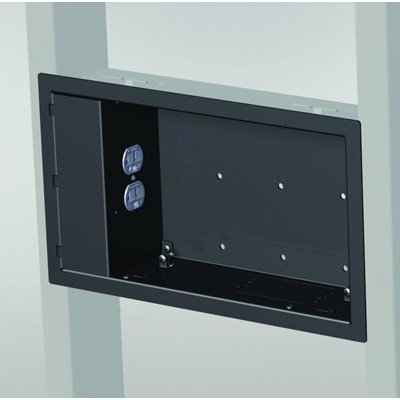

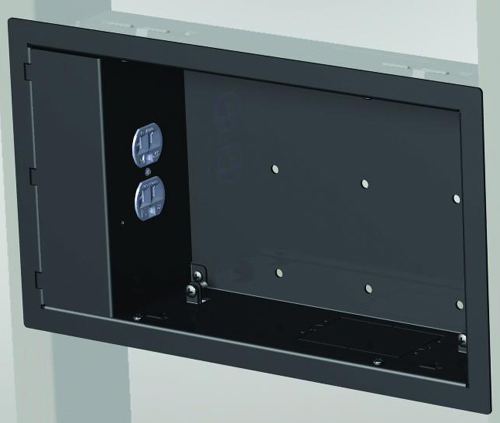

Chief PAC521P In-Wall Box with Power Outlet Conditioner

Chief PAC521P In-Wall Box with Power Outlet Conditioner PAC 521P

Features of Chief PAC521P:

    1. Replaces the need for an outlet.

    2.  Provides AC cleaning without loss of power.

  3.  Power conditioner is invisible and recessed into the in-wall box.

4.  Provides an organized, recessed space for excess cables.

    5. Can be used with new construction or retro-fit installations.

    6.  Installs horizontally between 16” centers or vertically on a single stud.

  7.  Capacity for up to 4 single gang junction boxes and conduit, surge protectors and excess

         cables.

8.  Filter removes more noise than many full-sized line conditioners.

  9.  Non-volatile spike protection with LED protection indicator can potentially absorb thousands of

         spikes.

10.  Non-current limiting design passes full power on a regular circuit.

  11. Picture and sound available after protection stops until a replacement can be installed.

12.  Rated for 2160 joules and 15 amps.

13.  1800 watt maximum.

14.  Reduces common and differential mode noise by up to 40 dB.

  15.  ETL Listed.

Technical Drawing for Chief PAC521P In-Wall Box with Power Outlet Conditioner

Description of Chief PAC-521P:

A high-performance in-wall box power accessory that integrates with Chief mounts and improves the audio and video performance of flat panel displays.

• Combines two Chief products into one part number; A flat panel in-wall box with our high-performance power outlet conditioner
