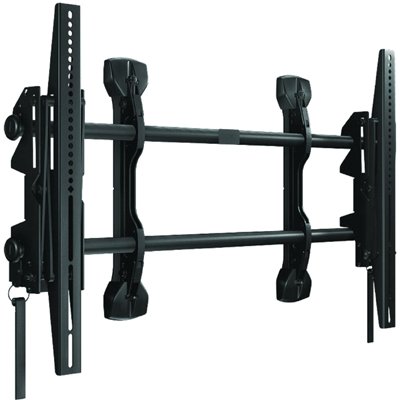

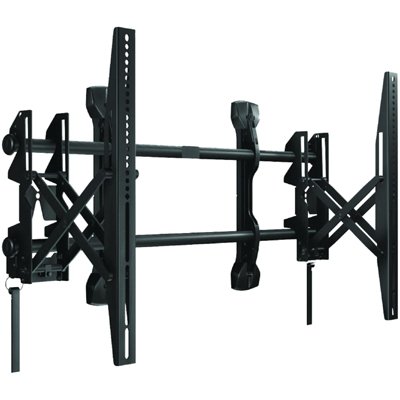

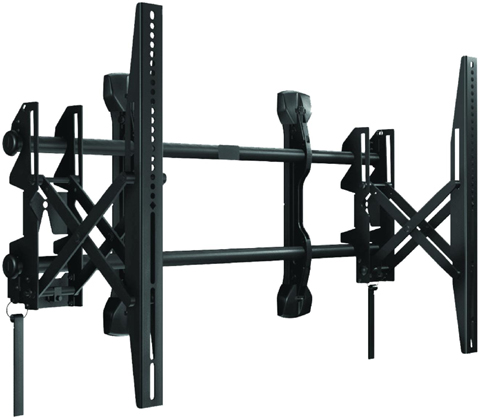

Chief LSMVU Large FUSION Micro-Adjustable Pull-Out Wall Mount
Product ID: 16337
Description
Chief LSMVU is a great for video wall applications, offering easy installation and maintenance for multiple screens.

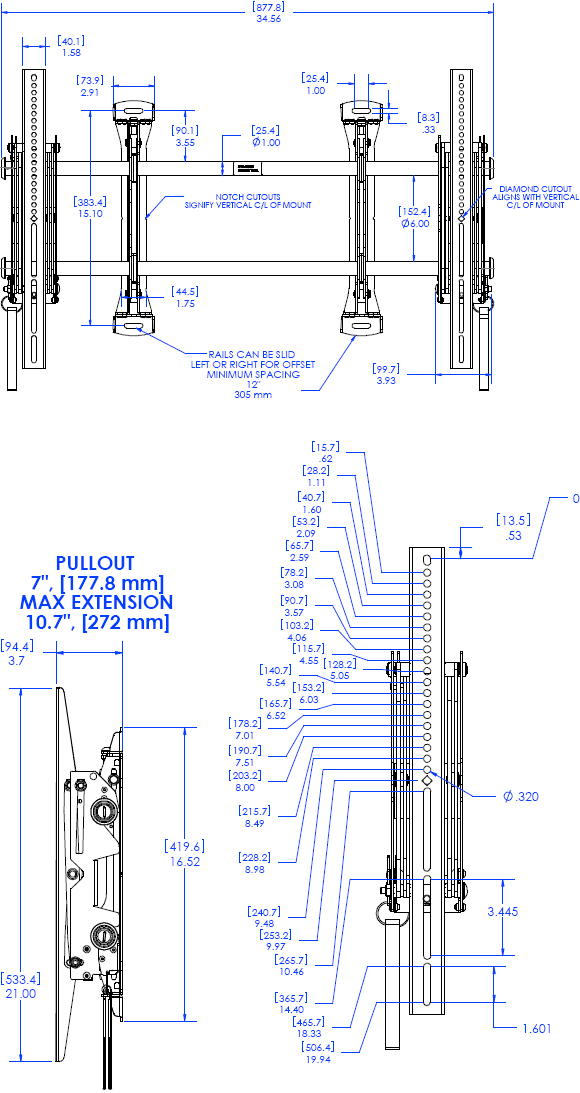

Technical Drawing
Specifications
Certifications |
UL Listed |
Color |
Black |
Lateral Shift |
17.5" (445 mm) |
Manual Height Adjustment |
1" |
Maximum Extension |
10.7" (272 mm) |
Minimum Depth |
3.7" (94.mm) |
Mounting Pattern Compatibility (Universal Versions) |
200 x 200mm - 760 x 505mm |
Orientation |
Landscape |
Overall Dimensions (H x W x D) |
21.0" x 34.6" x 3.7" (533 x 879 x 94mm) |
Plumb Adjustment |
2.5 degrees |
Post-Installation Leveling (Roll) |
Yes |
Shipping Weight |
27.55 lbs |
Solution Type |
Universal |
Typical Screen Sizes |
37 - 63" |
Wall Stud Compatibility (inches) |
12 - 34" |
Weight Capacity |
150 lbs (68.kg) |
Features
- ControlZone Leveling provides post-installation fine tuning of height and leveling for a seamless installation
- Centerless Shift provides post-installation lateral shift to easily slide screens apart or together for easy maintenance and perfect alignment
- ClickConnect offers an audible click when the screen safely engages with the mount
- Allows fine-tuning plumb adjustment to ensure screens are perfectly vertical for a seamless install, can be used to compensate for walls that are not perfectly flat
- Built-in cable stand provides easy access under the screen
- Provides integrated security, just add a padlock

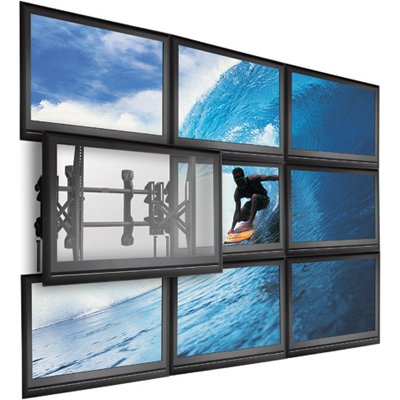

- Great for single display recessed applications and 2 X 2 video walls
Model | LSMVU |
Manufacturer | Chief Mounts |
Part Number | LSMVU |
UPC | 841872143378 |
Mounting Options | Wall |
Color | Black |
Lateral Shift | 17.5" (445 mm) |
Manual Height Adjustment | 1" |
Maximum Extension | 10.7" (272 mm) |
Minimum Depth | 3.7" (94.mm) |
Mounting Pattern | 200 x 200mm - 760 x 505mm |
Overall Dimensions | 21.0" x 34.6" x 3.7" (533 x 879 x 94mm) |
Plumb Adjustment | 2.5 degrees |
Shipping Weight | 27.55 lbs |
Monitor Size | 37 - 63" |
Wall Stud | 12 - 34" |
Weight Capacity | 150 lbs (68.kg) |
