Chief MTAPU Medium FUSION Portrait Tilt Video Wall Mount

This product has been discontinued.

Chief MTAPU FUSION Flat Panel Portrait Tilt Video Wall Mount (32"-47")

General Information

Nationwide Delivery Image

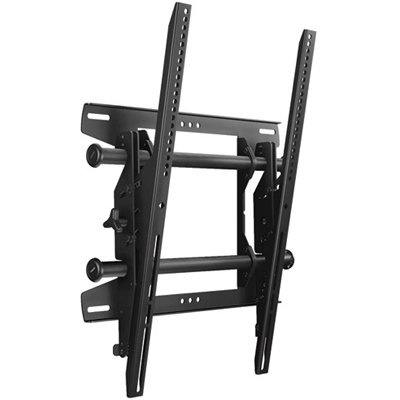

Chief MTAPU FUSION Flat Panel Portrait Tilt Video Wall Mount (32"-47" Displays)

Chief MTAPU FUSION Flat Panel Portrait Tilt Video Wall Mount (32"-47" Displays)

Features of Chief MTAPU:

1. Portrait installation enables vertical positioning of the flat panel display.

2. Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low

profile.

3. Centerless Shift provides of post-installation lateral shift for limitless centering.

4. ClickConnect offers an audible click when the screen safely engages with the mount.

5. Built-in cable stand provides easy access under the screen.

6. A full line of accessories can be installed with the mount and the entire unit can be adjusted

together.

7. Provides integrated security, just add a padlock.

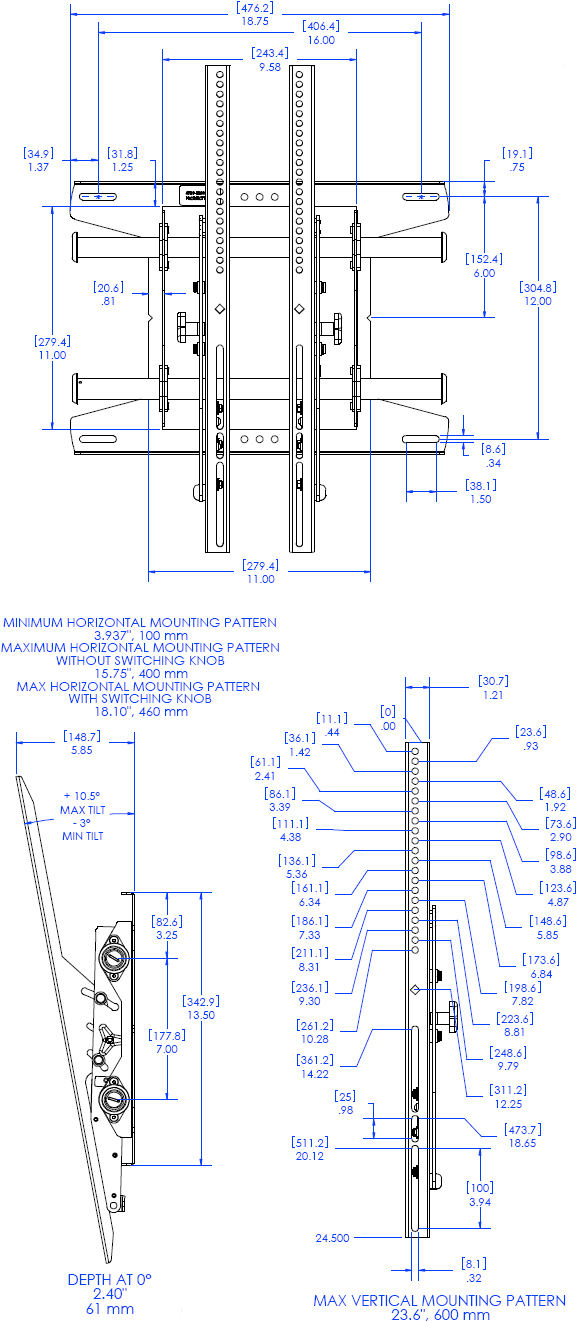

Technical Drawing for Chief MTAPU FUSION Portrait Tilt Video Wall Mount

Technical Drawing for Chief MTAPU FUSION Portrait Tilt Video Wall Mount

Description of Chief MTAPU:

This installer-inspired tilt mount solves top flat panel installation problems, offering perfect TV positioning and flexible adjustments with a portrait installation for medium flat panel screens.


Specifications:
Depth from Wall:	2.4" (61 mm)
Tilt:	+3/-10 degree
Max Lateral Shift:	4.25" (108 mm) left/right
Mounts on Studs:	16" centers
Mounting Pattern:	100 x 100 mm to 600 x 460 mm
Dimensions (H x W x D):	24.5" x 18.75" x 2.4" (622 x 476 x 61 mm)
Weight Capacity:	125 lbs (57 kg)
Color:	Black

Literature (Please open the following documents for more technical information)

Description	File Type
Chief MTAPU FUSION Portrait Tilt Video Wall Mount - Installation Assembly	- pdf
Chief MTAPU FUSION Flat Panel Tilt Video Wall Mount - Technical Drawing	- pdf
