Chief MSAU Medium FUSION Fixed Video Wall Mount (26-47")

Chief MSAU Medium FUSION Fixed Video Wall Mount (26-47")

This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.

Description

Chief MSAU installer-inspired fixed display mount solves top flat panel installation problems, offering perfect display positioning and flexible adjustments for medium flat panel screens.



Technical Drawing

Technical Drawing for Chief MSAU FUSION Flat Panel Fixed Video Wall Mount



Specifications

Certifications

UL Listed

Color

Black

Lateral Shift

14.5" (368 mm)

Minimum Depth

1.98" (50.3mm)

Mounting Pattern Compatibility (Universal Versions)

100 x 100mm - 650 x 400mm

Orientation

Landscape

Overall Dimensions (H x W x D)

13.5" x 25.4" x 2.0" (343 x 646 x 50mm)

Shipping Weight

15.55 lbs

Solution Type

Universal

Typical Screen Sizes

26 - 47"

Wall Stud Compatibility (inches)

Single Stud, 16"

Weight Capacity

125 lbs (56.7kg)



Features

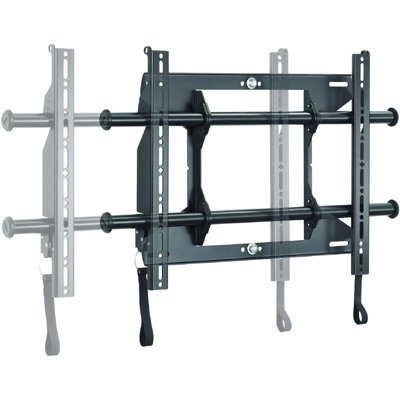

  • Centerless Shift provides up to 14.5" (368 mm) of post-installation lateral shift - 7.25" (184 mm) left/right of uprights - for limitless centering
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options, including single or dual stud mounting on 16" centers
  • Great solution for quickly installing multiple screens
  • Provides integrated security, just add a padlock
  • Ships with a custom hardware kit
Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model MSAU
  • Manufacturer Chief Mounts
  • Part Number MSAU
  • Mounting Options Wall
  • Color Black
  • Lateral Shift 14.5" (368 mm)
  • Manual Height Adjustment 1"
  • Minimum Depth 1.96" (49.8mm)
  • Mounting Pattern 100 x 100mm - 650 x 400mm
  • Overall Dimensions 16.5" x 25.4" x 2.0" (420 x 646 x 50mm)
  • Shipping Weight 19.80 lbs
  • Monitor Size 26 - 47"
  • Wall Stud 16"
  • Weight Capacity 125 lbs (56.7kg)
