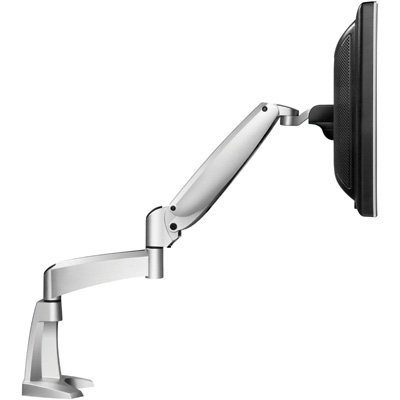

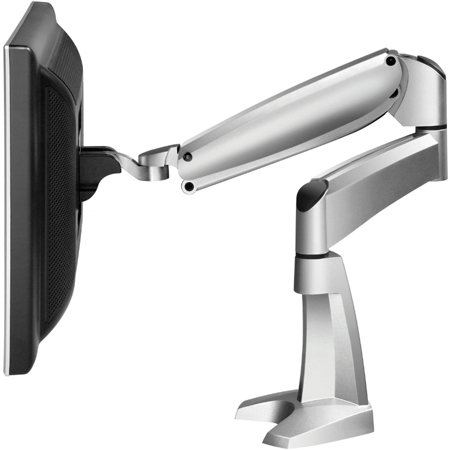

Workrite PA3000-B or PA3000-S Poise Heavy Duty Desk Mount Arm

Related Products:

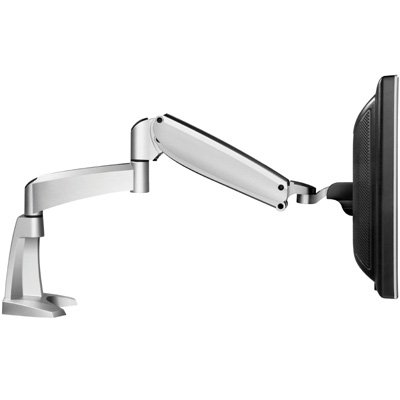

PA3000-S

Silver Workrite Poise Heavy Duty Flat Panel LCD Display Monitor LED Arm

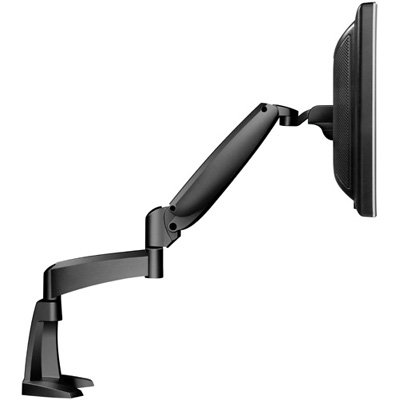

PA3000-B

Graphite Workrite Poise Heavy Duty Flat Panel Display LCD Monitor LED Arm

Workrite PA-3000 Information:

    1.  Parallelogram Design - For ease of Adjustment: The Workrite Poise monitor arm features a parallel linkage design with adjustable pneumatic counter balance that floats the monitor above the work surface.

    2.  Ergonomic User Flexibility: The Workrite Poise monitor arm adds a range of adjustment to meet users need for visual acuity and individual user preference that is unmatched in the industry.

• 360° rotation at the mounting base and first extension allows folded storage as shallow as 4"

• 180° rotation at the monitor connection for positioning and collaboration

• 12" vertical height range to meet individual users height requirements

• Monitor rotates from portrait to landscape with rotary stops to prevent cable damage

• Monitor tilt of 180° (70° back and 90° forward) to support touch screen application and special needs for users with disabilities and reclined usage

   3.  Dual Screen Support: The Poise Twin has all the features of the Poise PA1000 plus additional support for two monitors from 7 lbs. up to 18½ lbs. each

• Can be installed for either landscape or portrait orientation both vertically or horizontally

• Actual (not diagonal) monitor width not to exceed 20½" each

• Twin mounting plate orients monitors slightly inward towards viewer

  4.  Convenience Features: The Workrite Poise has several thoughtful features built in. Graphic indicators are molded into the arm to assist in adjustment long after the assembly instructions have gone away. The cable management system from the base to the monitor neatly organizes cables out of sight. Optional features include multiple mounting options as well as extension and quick mount monitor bracket to enhance usability of the arm.

    5.  When adjustability, durability and visual comfort are key: With a 360° rotation, monitor can be changed quickly from landscape to portrait orientation. Poise PA3000 will support monitor arms from 18 to 42 lbs.

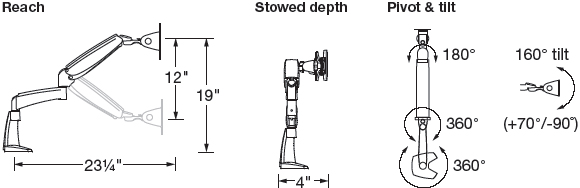

Technical Drawing for Workrite PA3000 Poise Heavy Duty Flat Panel Display LCD  Monitor LED Arm

Description of Workrite PA 3000 Poise Heavy Duty:

Features of Workrite PA3000 Poise: Heavy Duty

    1.  160° tilt range (+70°/- 90°), 360° pivot at base and arm connections, 180° pivot at monitor mounting.

    2.  4" stored depth.

    3.  Parallel linkage design keeps monitor perfectly parallel when adjusting vertically.

    4.  Adjustable pneumatic counter balance.

    5.  Clamp mount version includes two piece C-clamp and separate grommet clamp (shown) for  surfaces of ¾" - 2¹/8" thickness.

    6.  For customized control, including touch-screen use, tension is adjustable at all pivot points.

    7.  Integral cable management neatly stores cables .

    8.  For security, monitor attached with 4 screws.

    9.  VESA monitor mount for 75mm and 100mm standard.

  10.  Optional VESA bracket for VESA 100 mm × 200 mm mounting for all single monitor applications.

  11.  Support for monitors from 18 lbs. up to 42 lbs.

  12.  80% recyclable at end of life.

  13.  10 year warranty.
