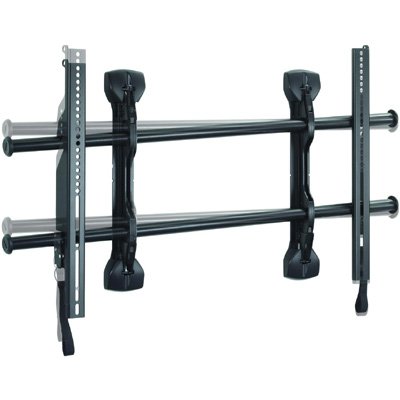

Chief LSMU Large FUSION Micro-Adjustable Fixed Wall Mount

FUSION Series Micro Adjustable Fixed Wall Mount for 37" to 63" Displays
0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 16529
List Price: $239.00
Our Price: $164.00
Shipping: $12.00 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States

Description

The installer-inspired fixed display mount solves top flat panel installation problems, offering flexible adjustments and post-installation fine tuning for large flat panel screens.

  • Provides an ultra low-profile display mounting solution

  • Offers post-installation height adjustment and lateral shift for faster and easier installation



Technical Drawing

Technical Drawing for Chief LSMU FUSION Micro-Adjustable Fixed Wall Mount for 37" to 63" Displays



Specifications

Certifications

UL Listed

Color

Black

Lateral Shift

17.5" (445 mm)

Manual Height Adjustment

1"

Minimum Depth

1.96" (49.8mm)

Mounting Pattern Compatibility (Universal Versions)

100 x 100mm - 879 x 505mm

Orientation

Landscape

Overall Dimensions (H x W x D)

16.5" x 34.4" x 2.0" (419 x 875 x 50mm)

Post-Installation Leveling (Roll)

Yes

Shipping Weight

20.05 lbs

Solution Type

Universal

Typical Screen Sizes

37 - 63"

Wall Stud Compatibility (inches)

12 - 34"

Weight Capacity

200 lbs (90.7kg)



Features

  • ControlZone Leveling for post-installation fine tuning of height and leveling

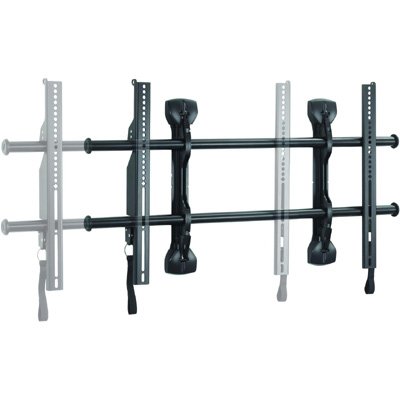

  • Centerless Shift provides up to 17.5" (445 mm) of post-installation lateral shift - 8.75" (222 mm) left/right of uprights - for limitless centering
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options, including 16", 20" and 24" centers
  • Provides integrated security, just add a padlock
  • Ships with a custom hardware kit
Model LSMU
Manufacturer Chief Mounts
Part Number LSMU
Mounting Options Wall
Color Black
Lateral Shift 17.5" (445 mm)
Manual Height Adjustment 1"
Minimum Depth 1.96" (49.8mm)
Mounting Pattern 100 x 100mm - 879 x 505mm
Overall Dimensions 16.5" x 34.4" x 2.0" (419 x 875 x 50mm)
Shipping Weight 20.05 lbs
Monitor Size 37 - 63"
Wall Stud 12 - 34"
Weight Capacity 200 lbs (90.7kg)
