The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

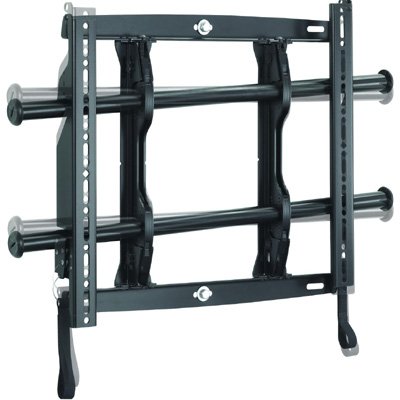

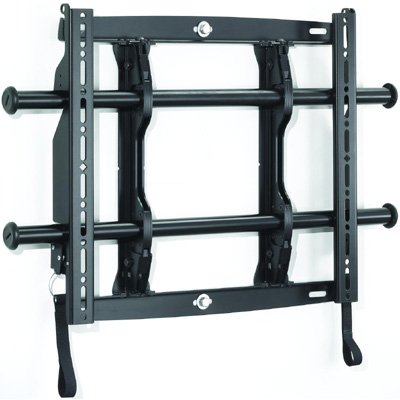

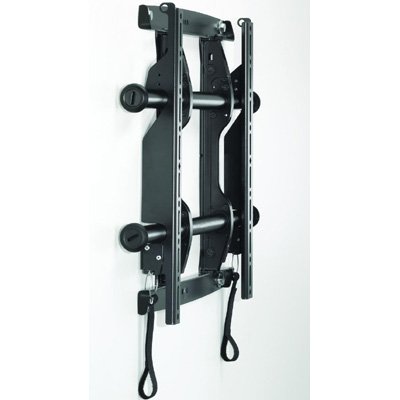

Chief MSMU Medium FUSION Micro-Adjustable Fixed Wall Mount
FUSION Series Micro Adjustable Fixed Wall Mount for 26" to 47" Displays
Product ID: 16530
Description
The installer-inspired fixed display mount solves top flat panel installation problems, offering perfect TV positioning and flexible adjustments for medium flat panel screens.

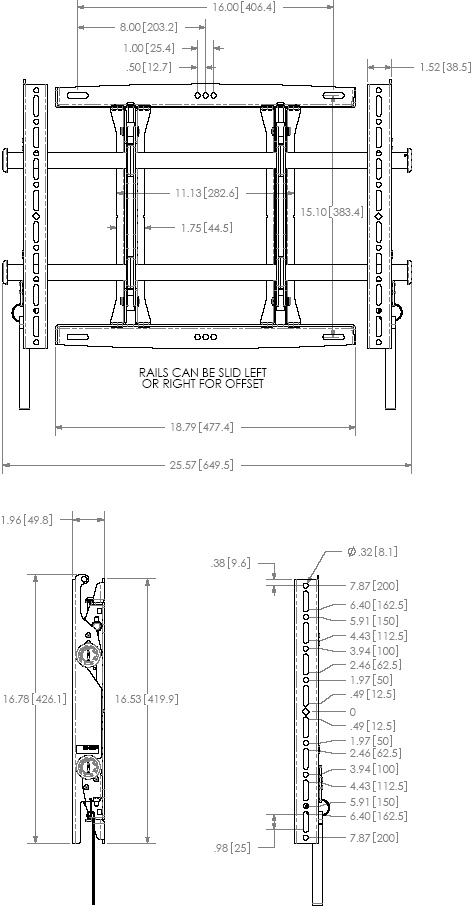

Technical Drawing
Specifications
|
Certifications |
UL Listed |
|
Color |
Black |
|
Lateral Shift |
14.5" (368 mm) |
|
Manual Height Adjustment |
1" |
|
Minimum Depth |
1.96" (49.8mm) |
|
Mounting Pattern Compatibility (Universal Versions) |
100 x 100mm - 650 x 400mm |
|
Orientation |
Landscape |
|
Overall Dimensions (H x W x D) |
16.5" x 25.4" x 2.0" (420 x 646 x 50mm) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
19.80 lbs |
|
Solution Type |
Universal |
|
Typical Screen Sizes |
26 - 47" |
|
Wall Stud Compatibility (inches) |
Single Stud, 16" |
|
Weight Capacity |
125 lbs (56.7kg) |
Features
- ControlZone Leveling for post-installation fine tuning of height and leveling

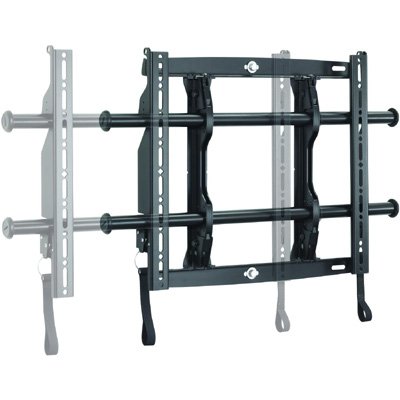

- Centerless Shift provides up to 14.5" (368 mm) of post-installation lateral shift - 7.25" (184 mm) left/right of uprights - for limitless centering
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Multiple installation options, including single or dual stud mounting on 16" centers
- Provides integrated security, just add a padlock
- Ships with a custom hardware kit
Frequently Asked Questions
Question: What size padlock can I use to add security?
Answer: Use a padlock with maximum diameter of 0.35" (8.9 mm).
| Model | MSMU |
| Manufacturer | Chief Mounts |
| Part Number | MSMU |
| Mounting Options | Wall |
| Color | Black |
| Lateral Shift | 14.5" (368 mm) |
| Manual Height Adjustment | 1" |
| Minimum Depth | 1.96" (49.8mm) |
| Mounting Pattern | 100 x 100mm - 650 x 400mm |
| Overall Dimensions | 16.5" x 25.4" x 2.0" (420 x 646 x 50mm) |
| Shipping Weight | 19.80 lbs |
| Monitor Size | 26 - 47" |
| Wall Stud | Single Stud, 16" |
| Weight Capacity | 125 lbs (56.7kg) |
