Chief KRA204 KONTOUR Grommet Accessory - Column Clamp Mounts

Chief KRA204 KONTOUR Grommet Accessory - Column Clamp Mounts

This product has been discontinued.





Related Products:



Part Number

Description

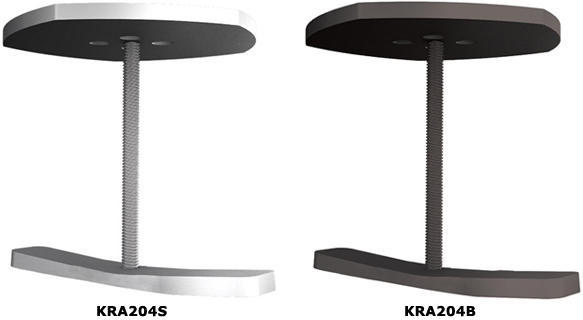

KRA204B

Black KONTOUR Bolt-Down Grommet Plate and Hardware for Column Clamp Products

KRA204S

Silver KONTOUR Bolt-Down Grommet Plate and Hardware for Column Clamp Products



Chief KRA-204B or KRA-204S KONTOUR Bolt Down Grommet Plate and Hardware for Column Clamp Products



Chief KRA204B or KRA204S KONTOUR Bolt Down Grommet Plate and Hardware for Kontour Column Products





Features of Chief KRA 204 or KRA 204:

  • Bolt-down grommet plate and hardware allows any Kontour Column product to be bolted to any countertop.

  • Use with other KRA accessories for a customized solution.

  • Compatible with K1C100, K1C200, K2C100 and K2C200 products.

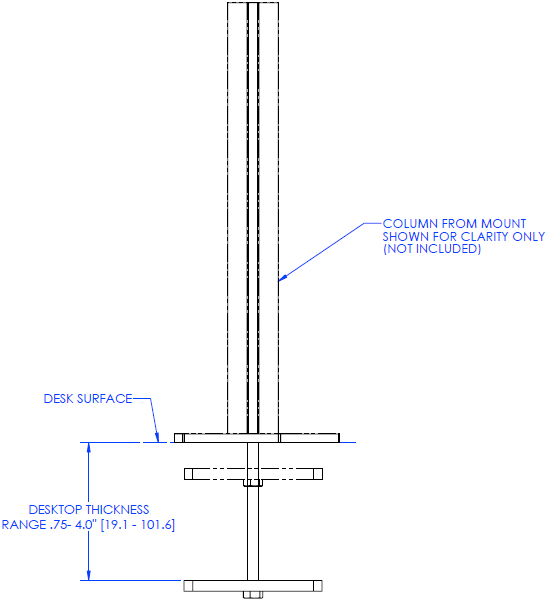

Technical Drawing of Chief KRA204 Series KONTOUR Bolt Down Grommet Plate and Hardware



Technical Drawing of Chief KRA204 Series KONTOUR Bolt Down Grommet Plate and Hardware





Description of Chief KRA-204:

Provides a rock solid bolt down option for any Kontour Column Clamp products.





Specifications of Chief KRA 204:

Color:

Black, Silver

Desktop Thickness Range:

0.75 - 3.5" (19 - 89mm)

Grommet Hole Size Range:

0.38 - 3" (10 - 76mm)

Overall Dimensions (H x W x D):

0.6" x 5.5" x 5.5" (16 x 140 x 140mm)

Weight Capacity:

50 lbs (22.7kg)
Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model KRA204B, KRA204S
  • Manufacturer Chief Mounts
  • Part Number KRA204B, KRA204S
  • Color Black, Silver
  • Desktop Thickness Range 0.75 - 3.5" (19 - 89mm)
  • Grommet Hole Size Range 0.38 - 3" (10 - 76mm)
  • Overall Dimensions 0.6" x 5.5" x 5.5" (16 x 140 x 140mm)
  • Weight Capacity 50 lbs (22.7kg)
  • Shipping Weight 2.60 lbs
