The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

Ergotron 97-574 StyleView Dual Display Kit

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 16679
List Price: $225.00
Our Price: $135.49
Shipping: $10.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Description

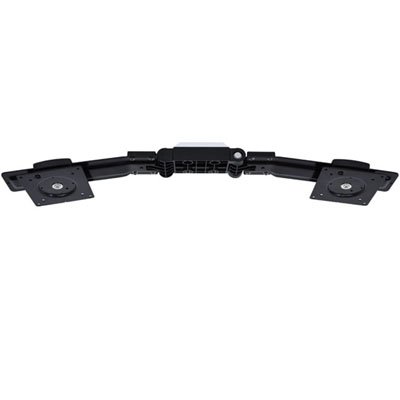

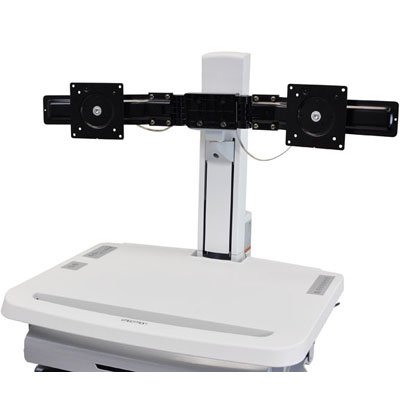

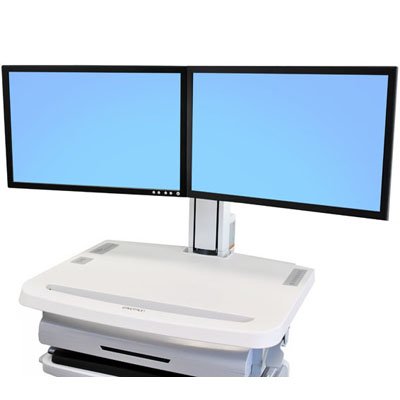

Ergotron 97-574 adapts a StyleView Cart with LCD Pivot so it can hold two displays. The bow features a hinge that allows you to turn one display outward for shared viewing.

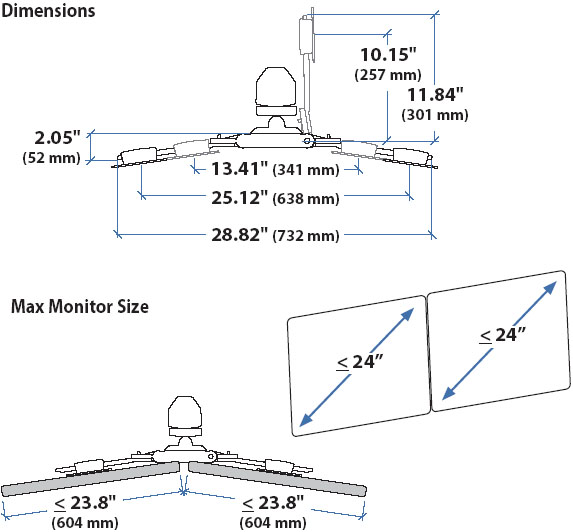

Technical Drawing

Technical drawing for Ergotron StyleView Dual Display Kit



Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
LCD Size Capacity Lift Tilt Pan Rotation VESA
Up to 24" Up to 12-20 lbs

5.4-9.1 kg

 - - 180° 360° P/L MIS-D



Product Information

Part Number:

97-574

Description:

SV Dual Display Kit for StyleView Carts with LCD Pivot

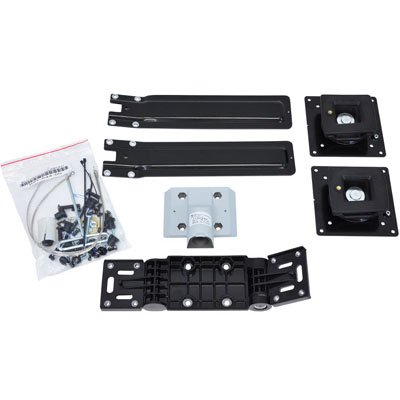

Includes:
  • Fixed pivot head
  • Center hinge
  • Two outboard crossbar pieces
  • 2 pivots
  • Mounting hardware

Pan:

180° right OR left pan (pan is set up at time of installation)

Cables:

Cables route neatly behind displays

Compatible:

Only compatible with StyleView Carts that include the LCD Pivot
Weight Requirements: SV PHD Cart with SLA power system
  • LCD combined weight ≤ 20 lbs (9 kg)
  • CPU in head unit ≤ 5 lbs (2.2 kg)
  • May be use in conjunction with Storage Drawer accessory.
  • Total customer load with up to 2 drawer rows is ≤ 39 lbs (17.7 kg)
  • Total customer load with up to 3 drawer rows is ≤ 29 lbs (13.2)

SV PHD Cart with LiFe power system

  • LCD combined weight ≤ 18 lbs (8.2 kg)
  • CPU in head unit ≤ 5 lbs (2.2)
  • May be used in conjunction with Storage Drawer accessory
  • Total customer load with up to 2 drawer rows is ≤ 39 lbs (17.7 kg)
  • Total customer load with up to 3 drawer rows is ≤ 29 lbs (13.2)

SV PHD Cart, non-powered

  • LCD combined weight ≤ 20 lbs (9 kg)
  • CPU in head unit ≤ 5 lbs (2.2 kg)

All SV PHD Carts

  • Only 1 drawer should be opened at a time
  • If the total combined weight of LCDs and CPU is greater than 23 lbs (10.4 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately).

SV EMR Cart with SLA power system

  • LCD combined weight ≤ 20 lbs (9 kg)

SV EMR Cart with LiFe power system

  • Not Recommended

SV EMR Cart, non-powered

  • LCD combined weight ≤ 20 lbs (9 kg)
  • Do not move cart with monitor panned

 All SV EMR Carts (excepting those with LiFe power)

  • If the total combined weight of LCDs and CPU is greater than 27 lbs (12.2 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately).

Shipping Dimensions:

13" x 10" x 6.5" (329 x 252 x 161 mm)

Shipping Weight:

6 lbs (2.7 kg)

Warranty:

Five (5) years



Benefits

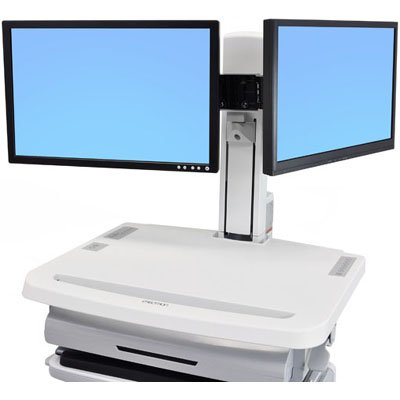

  • Provides a convenient side-to-side pivoting of one display for shared viewing of display.
  • Installs with hinge on either the right or left side to ensure a perfect fit.
  • Ease of hinge installation: design feature prevents improper installation.
  • Conceal and organize cables: display cables can be neatly routed behind displays.
Model 97-574
Manufacturer Ergotron
Part Number 97-574
UPC 698833016246
Monitor Size Up to 24"
Weight Capacity Up to 12–20 lbs (5.4–9.1 kg)
Pan 180 degree
Rotation (P/L) 360 degree
VESA MIS-D
Shipping Dimensions 13" x 10" x 6.5" (329 x 252 x 161 mm)
Shipping Weight 6 lbs (2.7 kg)
Warranty Five (5) years
