AFC AFC-107 LCD Ceiling Mount (Reach 68") for Hospital and Dental Environments

AFC AFC-107 LCD Ceiling Mount (Reach 68") for Hospital and Dental Environments

This product has been discontinued.



AFC AFC-107 LCD Ceiling Mount (Reach 68") for Hospital and Dental Environments

General Information



Image of Warranty and Returns

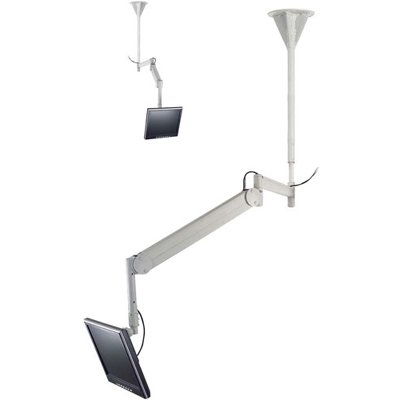

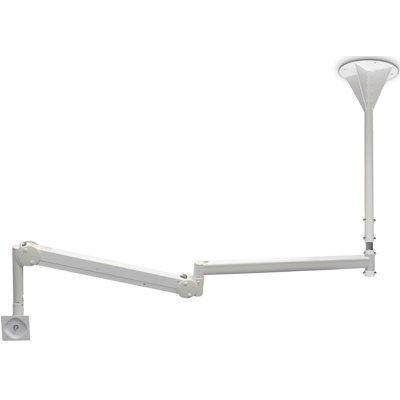

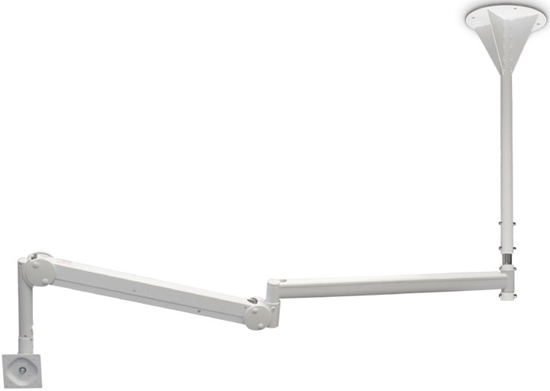

AFC AFC107 LCD Ceiling Mount (Overall Reach 68")



AFC AFC107 LCD Ceiling Mount (Overall Reach 68")









Features of AFC LCD Ceiling Mount:



  • Ideal for most environments, including hospital and dentist.

  • Built in gas spring aids ease of movement.

  • Height adjustment -20° to 60°.

  • Overall Reach 68".

  • VESA compliant to both 75mm and 100mm standards.

  • Manufactured from aluminum alloy and coated with a special PVC covering allowing clinical cleaning.

  • Ideal for clean room environments.

  • Fully cable managed, concealing untidy cables.

  • Available in both wall (AFC-105) and ceiling (AFC-107) mounts.

  • Weight capacity 2-13 lbs.

  • Unit weight 41 lbs..

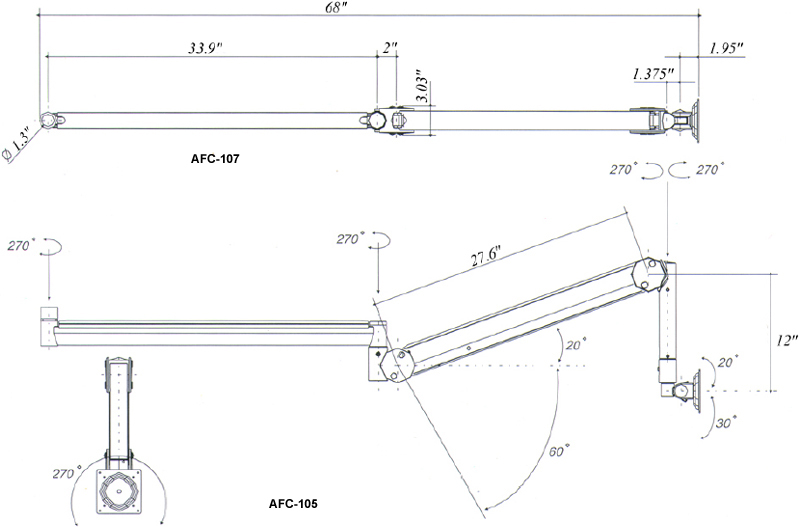

Technical Drawing for AFC LCD Ceiling Mount AFC-107 and LCD Wall Mount AFC-105

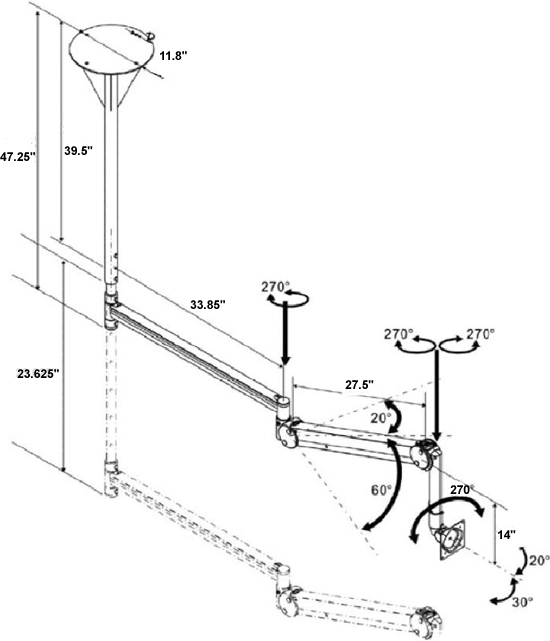

Technical Drawing for AFC LCD Ceiling Mount AFC-107





Technical Drawing for AFC LCD Ceiling Mount AFC-107 and LCD Wall Mount AFC-105









Technical Specifications of AFC AFC-107:



Overall Reach:

68"

Height Adjustment:

-20° to 60°

Mounting Pattern:

VESA compliant to both 75mm and 100mm standards

Weight Capacity:

2-13 lbs

Unit Weight:

41 lbs







Literature (Please open the following documents for more technical information)




AFC LCD Ceiling Mount AFC-107 - Specification Sheet

- pdf
AFC AFC-107 LCD Ceiling Mount and AFC-105 LCD Wall Mount - Specification Sheet

- pdf





AFC Industries Logo

Hyperlink of all AFC Industries Products

Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model AFC-107
  • Manufacturer AFC Industries
  • Part Number AFC-107
  • Weight Capacity 2 - 13 lbs
  • Weight 41 lbs
  • Height Adjustment -20° to 60°
  • Reach 68"
  • Mounting Pattern VESA 75mm and 100mm
