AFC AFC12 Flat Panel Wall Mount LCD Monitor Arm up to 13.2 lbs

AFC AFC12 Flat Panel Wall Mount LCD Monitor Arm up to 13.2 lbs

5 (1 reviews)

This product has been discontinued.

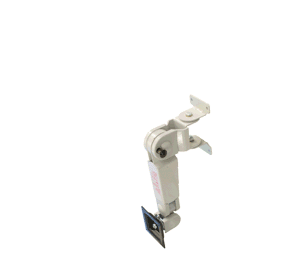

Animation of AFC AFC-12 Flat Panel LCD Monitor Wall Mount Arm

Description

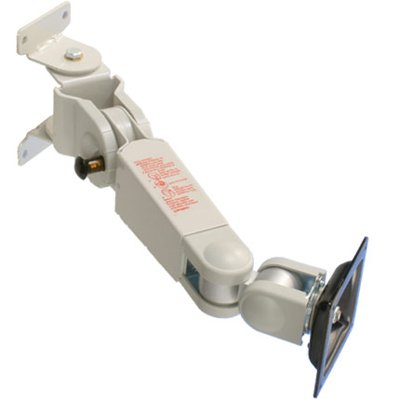

AFC AFC12 wall mount firmly fixes on solid wall. Knob is fixing five different vertical positions of the arm.

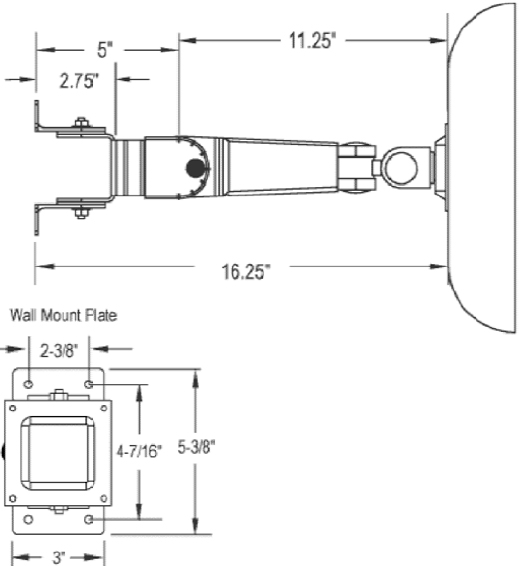

Technical Drawing

Technical Drawing for AFC Flat Panel AFC12 LCD Monitor Wall Mount Arm





Technical Specifications

Mounting Pattern

VESA 75x75mm / 100x100mm

Total Swivel (Left & Right)

180 degrees

LCD Monitor Swivel

270 degrees

Weight Capacity

From 2.2 lbs to 13.2 lbs



Features

  • For VESA mounting (75 x 75mm). Included plate: (100x100mm) VESA
  • Loading from 2.2 lbs. to 13.2 lbs. LCD monitor.
  • Five Knuckles for adjusting:
  • Swivel left & right total 180 degrees.
  • LCD monitor swivel 270 degrees
  • Pivot upwards & downwards





Literature (Please open the following documents for more technical information)

Specification Sheet - AFC AFC12 Flat Panel LCD Monitor Arm Wall Mount

 - pdf
Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model AFC12
  • Manufacturer AFC Industries
  • Part Number AFC12
5.0
1 review
5 stars
1
4 stars
0
3 stars
0
2 stars
0
1 star
0
SP , Ohio
Oct 18, 2016
These things are great
We use them in our shop area, they are durable and can be shaped in multiple configurations. The monitor stays where you put it.
