General Information

Features of Anthro EKG Cart:

1. Contoured Top: The 1/2" high lip runs all the way around the cap shelf so your portable EKG machine won’t slide off.

2. Side Bin: The Side Bin conveniently collects printouts and the locking Small 3" Drawer stores supplies securely. It installs on any wood shelf and extends 8" below the shelf. Measures 12"w x 5.75"h. Tapers from 3.25" top depth to 2.25" bottom depth.

3. Metal Bin: Store your patient lead cables, and other items here for easy access. Metal Bin is 18"w x 11"d x 3" h and is available in Cool Grey (CG) metal with Slate Blue (SB) bracket.

4. Large Casters: The 4" diameter twin-wheel casters (2 locking) travel easily over thresholds and directly to the point of care.

5. Adjustable Height: Set the height 30"-40" so it's comfortable for patients and clinicians.

6. Handle: Cast aluminum handle helps you easily steer your cart.

7. Metal Base: Cast Metal Base holds up to 150 lbs.

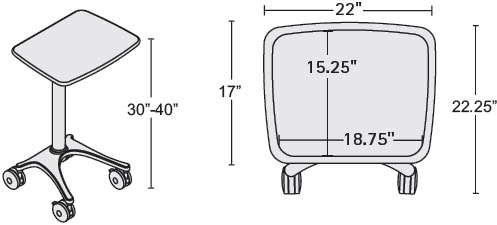

Technical Drawing for Anthro BZD03SB/CG4 Height Adjustable Healthcare EKG Cart

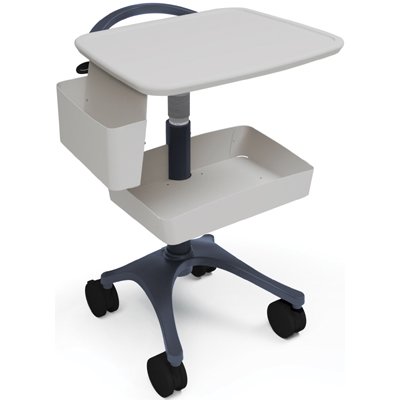

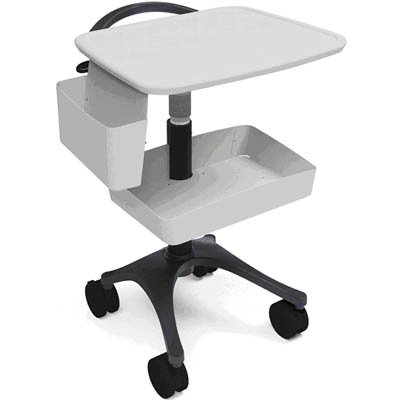

Description of Anthro EKG Cart:

Height Adjustable EKG Cart carries all your supplies on a compact, easy-to-steer cart that takes everything you need right to your patient. Squeeze the paddle to easily adjust the cart height 30" - 40" so it is comfortable. Use the built-in storage for gloves, gel, and more.
