General Information

Description of Anthro Tablet Charging Cabinet:

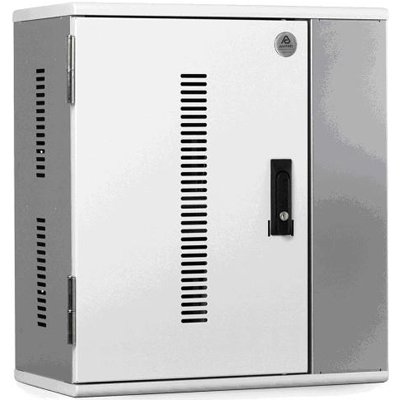

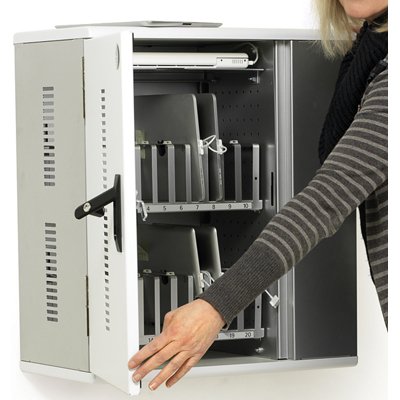

The cabinet fits 20 tablets into a compact cabinet (21"w x 12"d x 24"h) to save you room. Keyed locks on each door protect your devices. For added security, mount it to your wall with the enclosed hardware. Or bolt it to your countertop or shelf.

Charge and store your tablets like the iPad digital device in a locking stationary Tablet Charging Cabinet from Anthro. The 20-unit Tablet Charging Cabinet is a petite 21”w x 12”d and mounts to a wall or countertop. Each bay in the front user area is numbered to show which devices are in use. Power cords are clipped at the front of each bay for quick connection. A laptop storage bay is conveniently located in the front. A separate locking IT area holds chargers. Keyed locks on front and side doors for security. Lifetime Warranty against manufacturing defects on the cabinet body; 2-years on electrical

• Secure locking cabinet stores and charges up to 20 tablets, iPad devices, and readers.

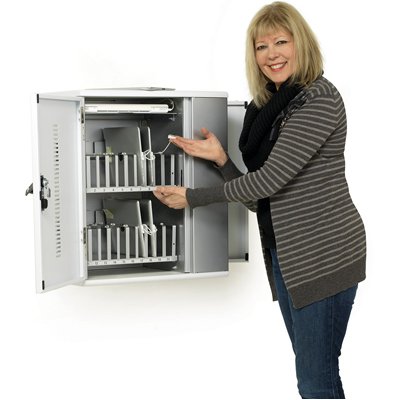

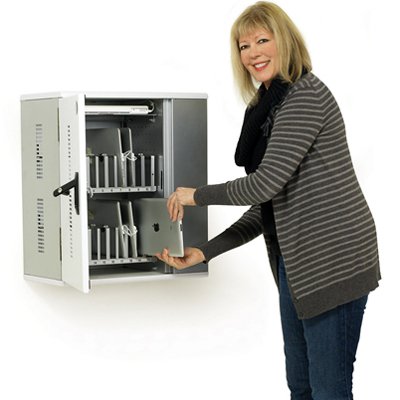

• Mount the cabinet to a wall or to the top of a cabinet or bolt it to a countertop for extra security.

• Dedicated storage area holds your laptop. Cable pass-through connects to the side IT area for charge.

• Cable clips along the top of the metal bay dividers route the power connector cord to the front of the bay for quick connection, and so you can see which devices are connected to power. Cable channels at the back of the cabinet run cables from each bay to the side IT area.

• Separate locking IT area on the side holds power transformers. Cable management system organizes loose cables cleanly. Power panel comes with 22 power receptacles – enough for all your devices plus a laptop and an extra! On/off power switch with indicator light shows you when the outlets have power.

• The optional Sync Kit is a 10-port USB hub that connects 10 devices at a time to your laptop, providing a wired connection for updates. Sold separately.

• Keyed locks on front and side doors for security. Low-profile handles are easy to grip.

• Ships assembled with instructions and hardware to mount to studs and drywall (for wall-mounting) and to a countertop or tabletop (for surface-mounting).

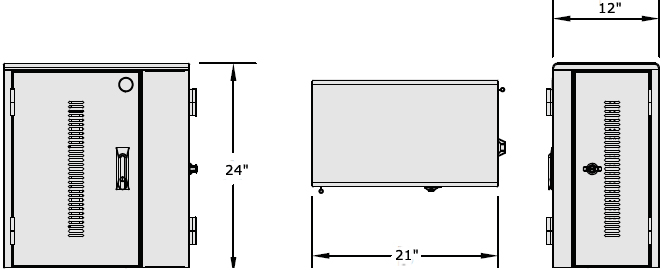

Technical Drawing for Anthro TAB20SS/PW Secure 20 Unit Tablet Charging Cabinet

Features of Anthro Charging Cabinet:

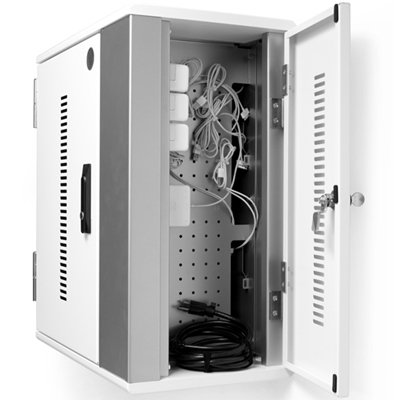

• Separate locking IT area on the side protects and conceals chargers and power outlets, away from users.

• Laptop storage slot in the front User Area measures 13.75"w x 10"d x 2"h. Keep the laptop up front with your tablets and leave the side IT Area locked. Route the laptop's power cord into the cabinet's cable management system so the connection is positioned right where you need it.

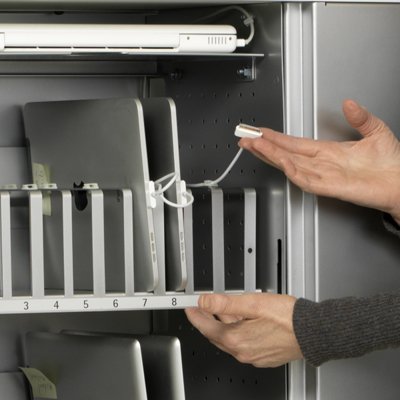

• The cabinet's cable management system positions each power cord right at the front of the bay so you can quickly connect your device to power. Clips route the cords from the front of each bay, along the top of each bay divider, to the cable channel at the back of the enclosure.

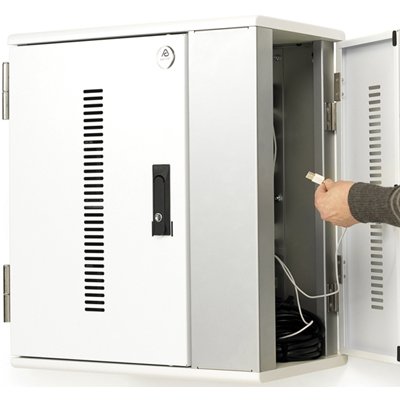

• Cords go from those back cable channels through a small opening to the side IT area where cords are bundled and the power adapter is plugged in. Cords are routed to keep them out of the way of the devices and free from being tangled with each other. Clips hold the cords tightly so they stay where you put them.

• Use Anthro's optional Sync Kit to provide a wired connection to your devices. This 10-port USB hub connects 10 devices at a time to your laptop. Kit comes with one 10-port hub, ten cords with a USB connector on one end and a 30-pin connector on the other end, and one cable with AC power adapter.

• Bays measure 7/8"w x 8.5"h x 10.5"d to hold most common devices, with or without a case. Each storage bay is numbered 1-20 so you can see at a glance which devices are docked and which are in use. Metal bays are made of 16-gauge steel with a durable baked-on powder-coat finish.

• Doors, panels, and inner divider are ventilated to keep air moving throughout the enclosure so devices stay cool.

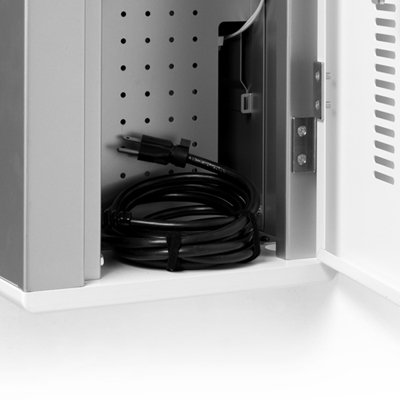

• The cabinet comes with a 10-foot long power cord to reach your nearest outlet, or wire a power connection behind the unit and access it through a notch in the back panel. The on/off switch directs power to all the cart's outlets, and an indicator light shows when the power is off to the outlets and it's safe to plug in your devices.

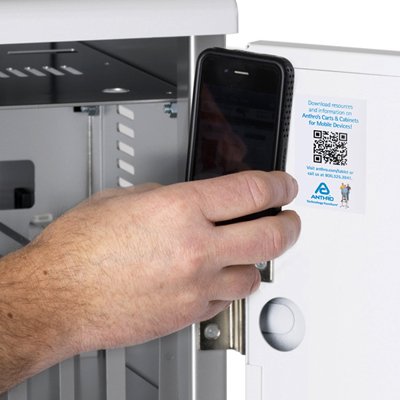

• The link label on the inside of each door links you to the cart's owner's manual, trouble-shooting guide, and updates from Anthro. Scan the QR Code on the label and you're there!

Specifications of Anthro TAB20SS/PW:

Device It Holds:

20

Outside Dimensions:

21”w x 12”d x 24”h

Cart Weight:

65 lbs

Weight Capacity of Top Surface:

30 lbs

IT Area Dimensions:

Cooling/Ventilation:

Internal Power Outlets:

External Power Outlets:

Power:

Power Switch:

Network Connection:

Bays:

Roomy bays measure .875"w x 8.5"h x 10.5" to hold your device in just about any case. Numbered bays organize devices. Open the door and tell at a glance which devices are checked out.

Shipping Dimensions:

Shipping Weight:

Materials:

Warranty:

Lifetime Warranty on cart body, two-year warranty on the electrical system. Cords and plugs are not warranted.
