Innovative 7616-14 Long Reach (42") Healthcare Arm with Handles

Innovative 7616-14 Long Reach (42") Healthcare Arm with Handles

This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.

View Similar Products



Click on the functions (Height Adjustment, Tilt LCD, Rotate at Forearm, Rotate at LCD, Rotate at Mount, Pivot LCD, Cable Management) to the left side of the image below to see the arm movements

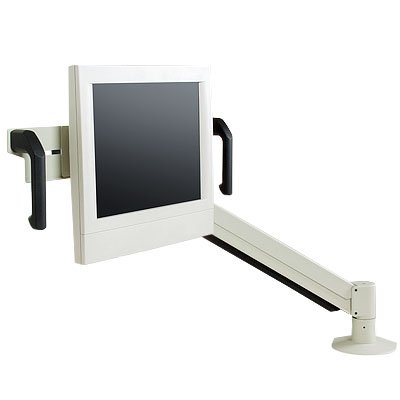

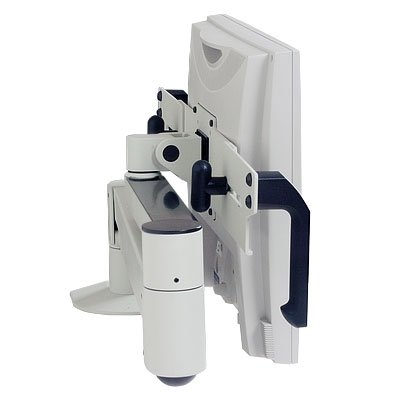

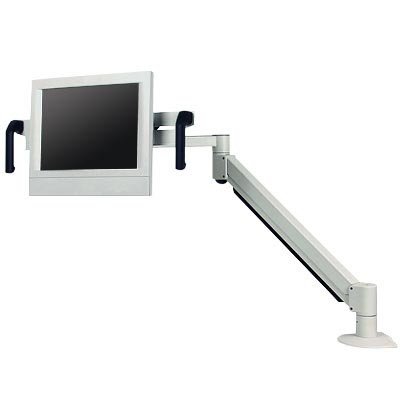

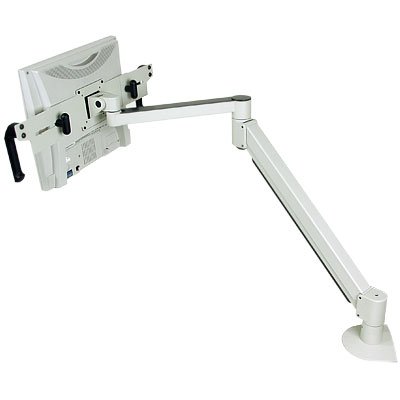

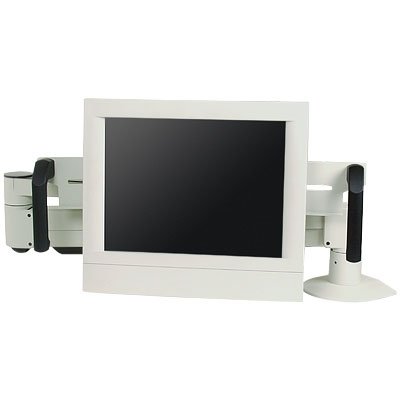

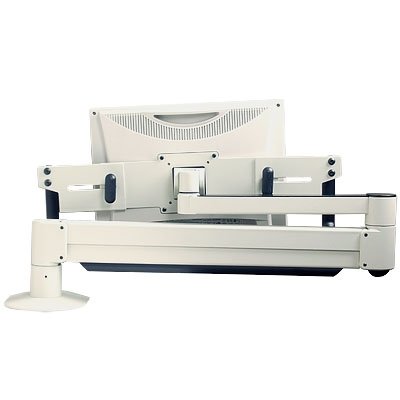

Innovative 7616-14 Long reach (42") Healthcare Monitor Arm with Handles



Innovative 7616-14 Long reach (42") Healthcare Monitor Arm with Handles





Description of Innovative 7616-14:



This massive arm extends up to 42" with vertical range of 31.5", allowing for a remarkable amount of flexibility. Simply grip the Operatory handles and move the monitor anywhere within its huge span. A wide degree of monitor tilt is also featured, even the ability to turn the monitor from landscape to portrait viewing. Cables are threaded through the arm, keeping them out of view and out of harm's way. As with all Innovative articulating arms, the monitor floats weightless above the work area, where it can be effortlessly repositioned.

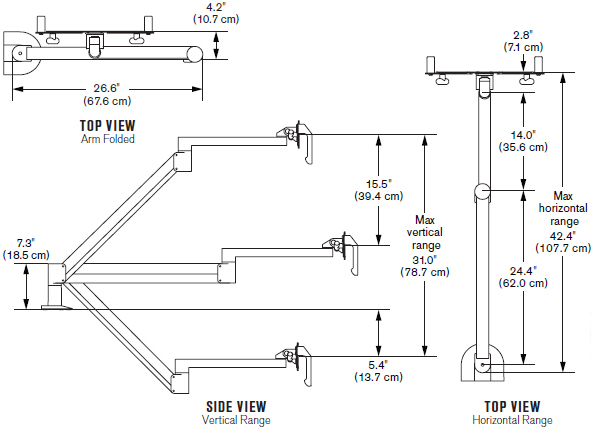

Technical Drawing for Innovative 7616-14 Long Reach Healthcare Arm



Technical Drawing for Innovative 7616-14 Long Reach Healthcare Arm





Features of Innovative 7616-14:



  • Use handles to quickly reposition the monitor without touching the monitor.

  • 31" of vertical range.

  • 42" of horizontal range.

  • Rotates 360 degrees at three joints.

  • LCD tilt mechanism has over 200 degrees of tilt.

  • Folds up to occupy just inches of space.

  • Cables are routed entirely within arm.

  • Compatible with VESA-standard monitors. Adapters available for non-VESA monitors.

  • Optional 6" extender tube available to raise monitor (see Extender Tubes under Available Accessories).





Technical Specifications of Innovative 7616-14:



Vertical Range:

31" (78.7 cm), +/- 15.5" (39.4 cm) from horizontal

Horizontal Range:

42.4" (107.7 cm)

Monitor Rotation:

360 degrees at three joints

Monitor Tilt:

200 degrees

Monitor Pivot:

Landscape to Portrait

Monitor Compatibility:

VESA 75 mm and 100 mm

Cable Management:

Cables are routed entirely within arm

Mounting Options:

FLEXmount, Wall, Thru-Desk

Monitor Weight:

0.0 - 4.0 lbs (0.0 - 1.8 kg) / 7616-14-1000

0.0 - 10.6 lbs (0.0 - 4.8 kg) / 7616-14-1500

1.2 - 19.2 lbs (0.5 - 8.7 kg) / 7616-14-2000

Product Options/Accessories
Innovative 8209 Flip-Up Keyboard Tray/LCD Holder

8209 Flip-Up Keyboard Tray

$564.00 $394.80
Innovative 8336-QR Descending Head Tilter with VESA Plate

8336-QR Monitor Tilter with VESA Plate (2-45 lbs)

$98.00 $78.40
Innovative 7VESA1x2 VESA Adapter Plate 100x200 mm

7VESA1x2 VESA Adapter Plate 100x200 mm

$50.00 $35.00
Innovative 7VESA2x2 VESA Adapter Plate 200x200 mm

7VESA2x2 VESA Adapter Plate 200x200 mm

$127.00 $88.90
Innovative 8136 LCD Keyboard Platform with Mouse Tray option

8136 LCD Keyboard Tray

$138.57
Innovative 8137 LCD Keyboard Platform with Wrist Rest

8137 LCD Keyboard Platform

$238.00 $166.60
Innovative 8138 Left or Right Handed Keyboard Platform

8138 Keyboard Tray

$300.00 $210.00
Innovative 8131-52-10 LCD Arm Keyboard Adapter

8131-52-10 Keyboard Adapter

$340.00 $238.00
Innovative 8056 Left or Right Handed Mouse Tray

Left/Right Mouse Tray - Innovative 8056

$113.00 $79.10
Innovative 8057 Left or Right Handed Mouse Tray with Tilt option

Innovative 8057 Mouse Tray

$79.20
Innovative 8171-75-6 - 6" Extender Arm Tube

8171-75-6 - 6" Extender Tube

$219.00 $153.30
Innovative 8335-SM Small Vertical CPU Holder

Small Vertical CPU Holder - Innovative 8335-SM

$257.00 $179.90
Innovative 8210 Pole Clamp Mount holds up to 55 lbs

8210 Pole Clamp Mount up to 55 lbs

$199.00 $139.30
Innovative 8312 Through Desk Mount

8312 Through Desk Mount

$88.00 $61.60
Innovative 8325 Heavy-Duty Large Wall Mount

8325 Large Wall Mount

$89.00 $62.30
Innovative 8318 Large FLEXmount (Six in One)

8318 Large FLEXmount (Six in One) Kit

$134.00 $93.80
Innovative 8409 Ergonomic Monitor Handle Set

8409 Monitor Handle Set

$213.00 $149.10
Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model 7616-14
  • Manufacturer HAT Design Works (Innovative)
  • Part Number 7616-14
  • Color 104: Vista Black, 124: Silver, 232: Linen White
  • Vertical Range 31" (78.7 cm), +/- 15.5" (39.4 cm) from horizontal
  • Horizontal Range 42.4" (107.7 cm)
  • Rotation 360 degree
  • Tilt 200 degree
  • Pivot Landscape to portrait
  • Mounting Pattern VESA 75mm and 100mm
  • Mounting Options FLEXmount, Wall, Thru-Desk
  • Monitor Weight Up to 19.2 lbs
  • Number of Monitors 1 Monitor
