The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

Innovative 9301-HD Articulating Track Mount, Spring Tilter

Horizontal Range: 21.7". Monitor Weight: Up to 55 lbs.

Comes with 8328 Track Mount

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 17100
Options
Our Price: Call for price
Shipping: $0.00 *
Usually ships in 5 to 7 business days
* applies to Contiguous United States

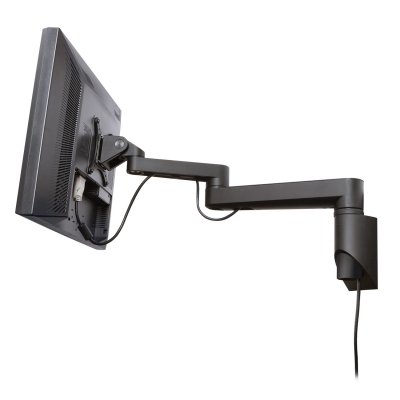

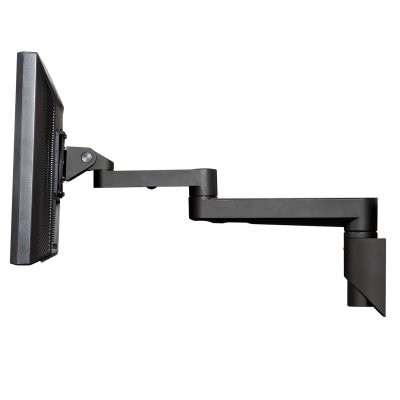

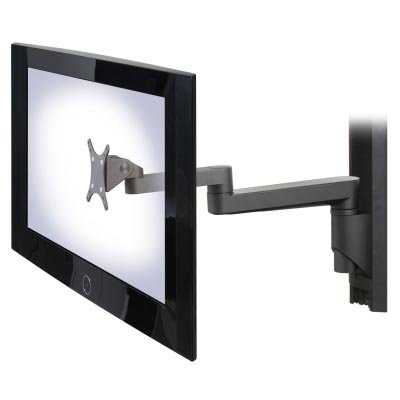

Innovative 9301-HD Articulating Track Mount Arm with Cable Management



Innovative 9301-HD Articulating Track Mount Arm with Cable Management





Description of Innovative 9301-HD:



This articulating arm pairs with our 8326 wall track system. Features our spring-assisted monitor tilter, which offers smooth and easy adjustment of monitors up to 55 lbs. The arm also features internal cable management to keep cords out of view..

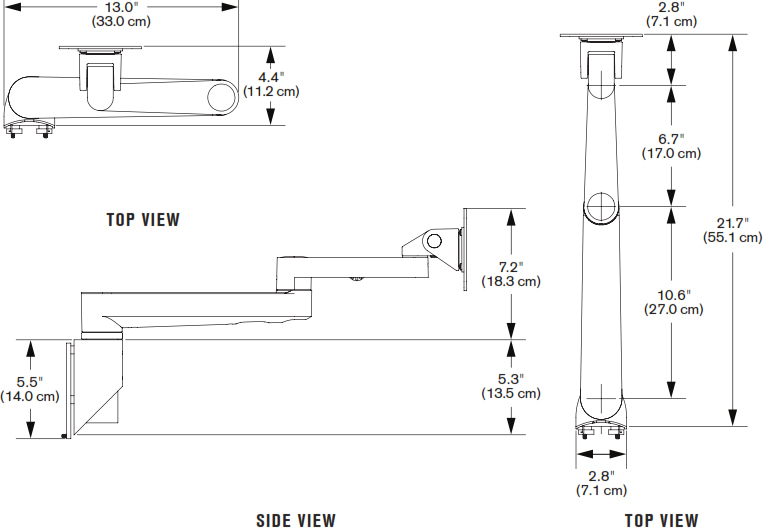

Technical Drawing for Innovative 9301-HD Articulating Track Mount Arm with Spring Tilter



Technical Drawing for Innovative 9301-HD Articulating Track Mount Arm with Spring Tilter





Features of Innovative 9301-HD:



  • For use with 8326 wall track system.

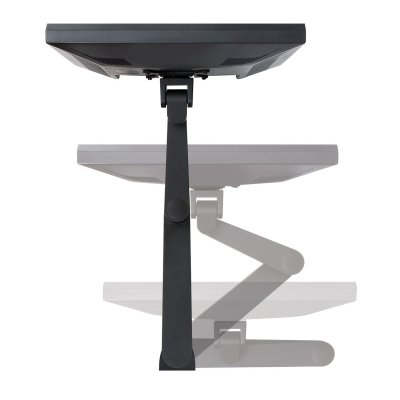

  • Spring-assist tilter enables smooth tilt, pivot and rotation of monitors up to 55 lbs. Ideal for monitors 20 lbs and up.

  • Internal cable management keeps cords out of view.

  • Includes 75mm/100mm VESA adapter.





Technical Specifications of Innovative 9301-HD:



Horizontal Range:

21.7" (55.1 cm) of horizontal range

Rotation:

Three articulation joints

Monitor Tilt:

200 degrees

Monitor Pivot:

Landscape to portrait

Monitor Compatibility:

VESA 75 mm and 100 mm

VESA 100 mm x 200 mm (optional)

VESA 200 mm x 200 mm (optional)

Cable Management:

Cables are concealed in arm

Mounting Options:

Track Mount

Monitor Weight:

Up to 55 lbs (24.9 kg)


Model 9301-HD
Manufacturer Innovative LCD Arms
Part Number 9301-HD
Color 104: Vista Black
Horizontal Range 21.7" (55.1 cm)
Tilt 200 degree
Pivot Landscape to portrait
Mounting Pattern VESA 75mm and 100mm
Monitor Weight Up to 55 lbs (24.9 kg)
Mounting Options Track Mount

Be the first to review this product

Innovative 9301-HD Articulating Track Mount, Spring Tilter

Warranty

Seller warrants that its products will be free from defects in material and workmanship when the title passes to the buyer. Seller will repair or replace, at its discretion, any defective product without charge (shipping charges excluded) for a period of 10 years (exception: 1 year for Busby, 5 years for Winston Workstation, Winston-E, Winston Desk and Freedom Desk, 3 years for Tablik and 1 year for Bild motorized column) after the original date of sale, unless the product damage resulted from normal wear and tear, buyer abuse, misuse or negligence or failure to follow instructions related to the products’s installation or intended use. Seller may require proof of purchase before performing any repairs or replacing any products during the warranty period. Except as specifically set forth above, seller makes no warranties, express or implied and specifically disclaims any warranty of merchantability or fitness for a particular purpose. Repair or replacement of the product ordered from seller shall be buyer’s exclusive remedy.
