Workrite SHX-24SPCR or SHX-30SPCR Sierra HX Spacers Accessory

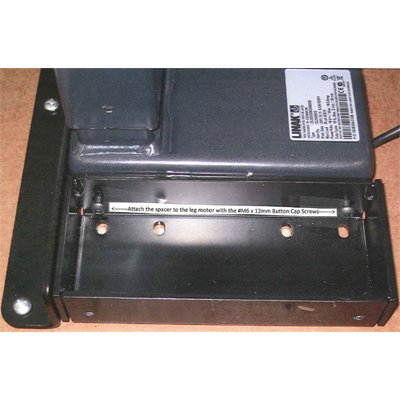

Attach the spacer to the leg motor with the #M6x12 mm Button Cap Screws

Features of Workrite HX Accessory Spacers:

• Provides 3" or 5" of additional mounting depth under worksurface for accessories including keyboard platforms.

• 3" spacer can mount to either 24"D or 30"D workcenters; 5" spacer can only be used on 30"D workcenters.

• For 3 leg dual depth workcenters, order spacer for narrowest side.

• Quantity 2 spacers provided.

Installation Photos of Workrite HX Accessory Spacers:

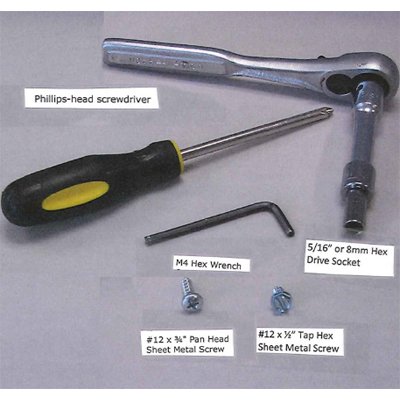

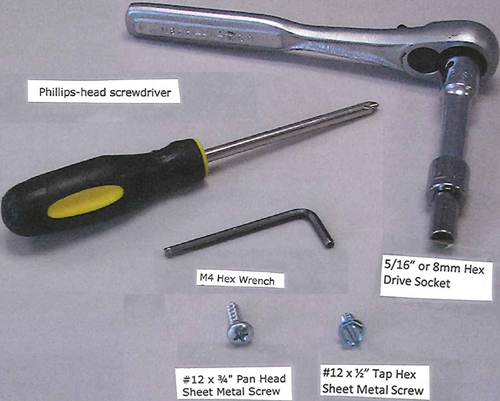

Verify that you have all the hardware needed for the assembly: 1. Phillips Head Screwdriver, 2. M4 Hex Wrench, 3. #12 x 3/4" Pan Head Sheet Metal Screw, 4. #12 x 1/2" Tap Hex Sheet Metal Screw, 5. 5/16" or 8mm Hex Drive Socket

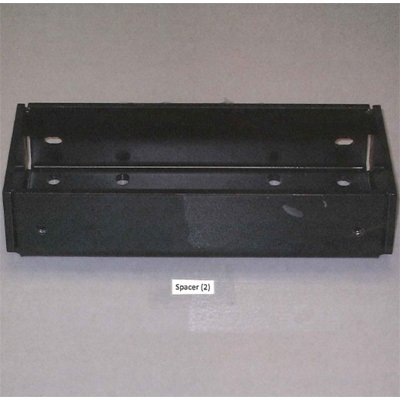

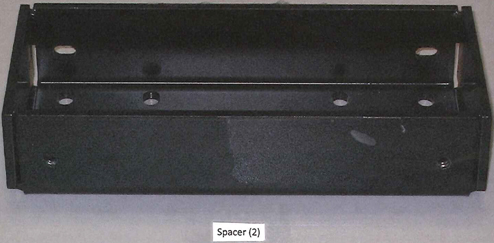

Spacer (2)

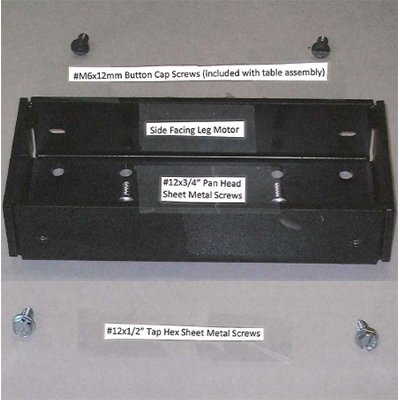

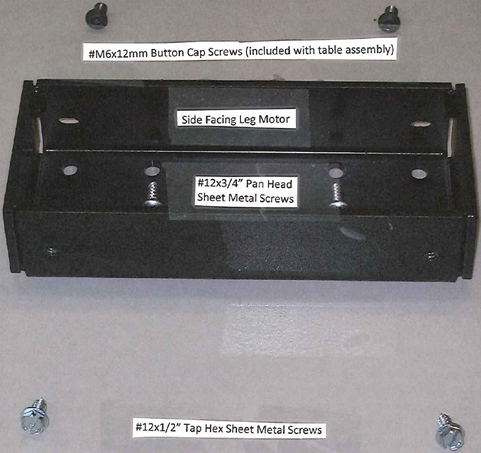

#M6x12mm Button Cap Screws (included with table assembly), Side Facing Leg Motor, #12x3/4" Pan Head Sheet Metal Screws, #12x1/2" Tap Hex Sheet Metal Screws.

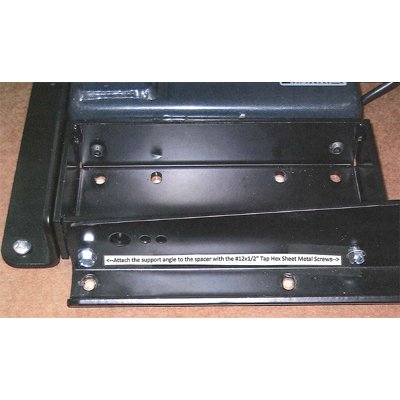

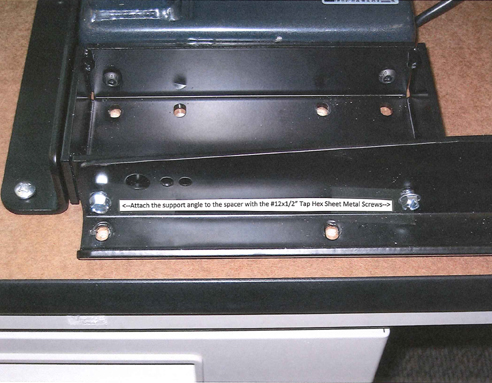

Attach the support angle to the spacer with the #12x1/2" Tap Hex Sheet Metal Screws.

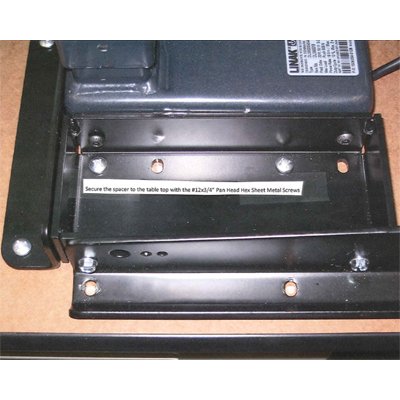

Secure the spacer to the table top with the #12x3/4" Pan Head Hex Sheet Metal Screws

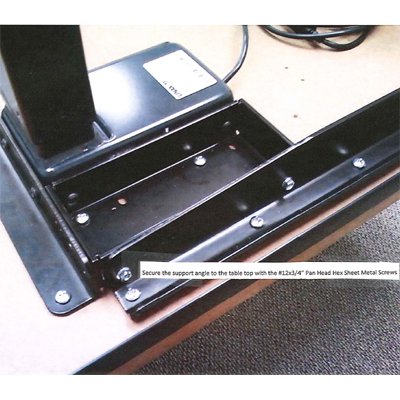

Secure the support angle to the table top with the #12x3/4" Pan Head Hex Sheet Metal Screws
