Peerless SC550GL SG5 Series Flat Panel Floor Cart for 42"-58" Displays up to 150 lbs with Glass Base

Peerless SC550GL SG5 Series Flat Panel Floor Cart for 42"-58" Displays up to 150 lbs with Glass Base

This product has been discontinued.





Peerless SC550GL SG5 Series Floor Cart for 42"-58" Displays up to 150 lbs with Glass Base



General Information



Image of Warranty and Returns

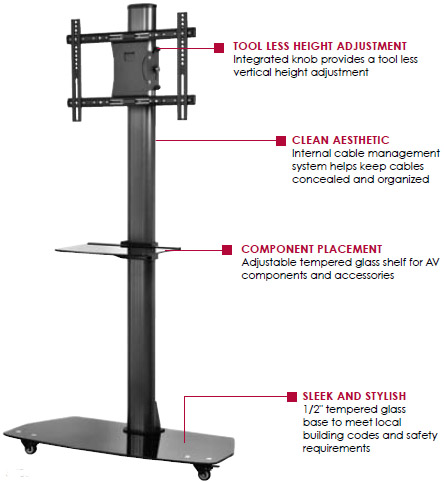

Peerless SC-550GL Floor Cart for 42"-58" Displays up to 150 lbs with Glass Base



Peerless SC-550GL Floor Cart for 42"-58" Displays up to 150 lbs with Glass Base









Features of Peerless SC 550GL:



  • High quality steel construction base and innovative aluminum extrusion pole.

  • Independent display height adjustment of 19.6".

  • 1/2" tempered glass base.

  • Internal cable management system helps keep cables concealed and organized.

  • Compact design offers personalized computing and video conferencing.

  • Universal mounting pattern from 200 x 200mm up to 600 x 400mm.

  • Display tilt adjustment of -5°/+15° for desired viewing angle.

  • Continuous vertical adjustment of 11.8" for the perfect viewing height.

  • Adjustable tempered glass shelf for AV components and accessories.

  • Completely hides cables giving a clean and professional look.

  • 2.5" swivel casters with two locking casters.

  • Assembly hardware included.

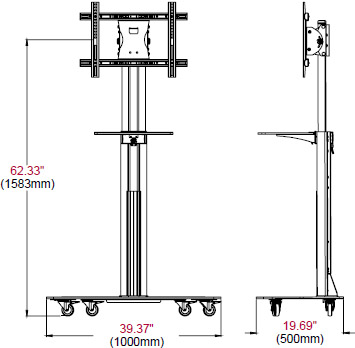

Technical Drawing of Peerless SC550GL SG5 Series Floor Cart for 42"-58" Displays up to 150 lbs with Glass Base



Technical Drawing of Peerless SC550GL SG5 Series Floor Cart for 42"-58" Displays up to 150 lbs with Glass Base









Description of Peerless SC-550GL:



The Peerless-AV SC550 GL Floor Cart is designed to provide the ideal display viewing position, centralize audio video components and match the décor of any environment - boardrooms, training rooms, lobbies, classrooms, auditoriums, or exhibit halls. The SC550GL is a perfect solution whether video conferencing from a boardroom or presenting on a trade show floor. Internal cable management hides the AV cabling, showing a clean, clutter-free look.









Specifications of Peerless SC 550GL:



Color:

Black

Display Size:

42" to 58"

Tilt:

-5°/+15°

Mounting Pattern:

From 200 x 200mm up to 600 x 400mm

Casters:

2.5" Swivel Casters with two locking Casters

Dimensions (W x H x D):

34.6" x 75.1" x 34.6" (878 x 1907 x 878mm)

Product Weight:

75.6lb (34.3kg)

Load Capacity:

150lb (68kg): 125lb (56.7kg) display + 25lb (11kg) shelf

Finish:

Power Coat

Package Size (W x H x D):

Box 1: 73.5" x 9.5" x 6" (1867 x 241 x 152mm).

Box 2: 41" x 21.5" x 3.75" (1041 x 546 x 95mm).

Package Ship Weight:

85lb (38.7kg)

Package Contents:

  • Cart

  • Metal or Tinted Glass Shelf

  • Adapter Plate

  • Assembly and Display attachment hardware

Warranty:

Limited 5 years







Literature (Please open the following documents for more technical information)




Peerless SC 550GL SC5 Series Flat Panel Floor Cart for 42"-58" Displays up to 150 lbs - Product Profile

- pdf
Peerless SC-550GL SC5 Series Floor Cart for 42"-58" Displays with Glass Base - Installation Sheet

- pdf







Peerless Logo



Hyperlink of all peerless products



Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model SC550GL
  • Manufacturer Peerless Mounts
  • Part Number SC550GL
  • Color Black
  • Dimensions (W x H x D) 34.6" x 75.1" x 34.6" (878 x 1907 x 878mm)
  • Weight 75.6lb (34.3kg)
  • Weight Capacity 150lb (68kg): 125lb (56.7kg) display + 25lb (11kg) shelf
  • Shipping Dimensions Box 1: 73.5" x 9.5" x 6" (1867 x 241 x 152mm) Box 2: 41" x 21.5" x 3.75" (1041 x 546 x 95mm)
  • Shipping Weight 85lb (38.7kg)
  • Monitor Size 42" to 58"
  • Tilt -5/+15 degree
  • Mounting Pattern 200 x 200mm up to 600 x 400mm
  • Warranty Limited 5 year
