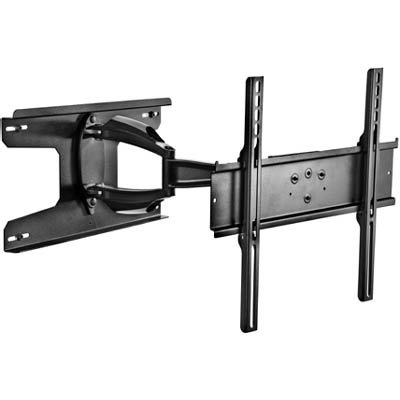

Peerless ESA746PU or ESA746PU-S Corrosion Resistant Articulating Wall Mount
This product has been discontinued.
Description

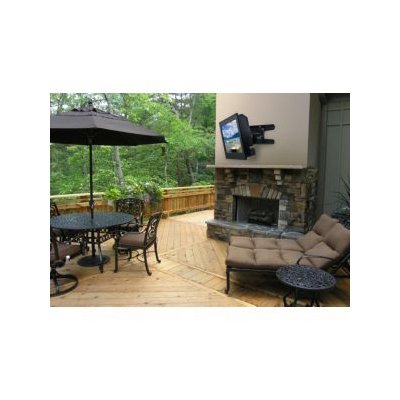

Peerless ESA746PU-S Corrosion Resistant Articulating Wall Mount for 26"-46" Indoor or Outdoor Flat Panel Displays from Peerless-AV is ready to let entertainment prosper in any indoor or outdoor environment. The ESA746PU is specially coated with a protective anti-corrosive e-coating that repels damaging temperature-related and outdoor corrosive elements. Delivering all weather indoor and outdoor display placement value for uses on a terrace, pool deck or in grill areas. This all-environment mount is also ideal for installations in humid indoor areas like locker rooms, bathrooms and indoor pools. Indoors or out the ESA746PU provides durable all-environment mounting solution that is ready for any setting.
Technical Drawing
Technical Specifications
|
Screen Size |
26" to 46" |
|
Weight Capacity |
80 lbs (36 kg) |
|
Mounting Pattern |
17.00" W x 16.06" H (432mm W x 408mm H) Mounting Pattern and up to 400 x 400mm VESA |
|
Swivel |
+90/-90° |
|
Tilt |
+15/-5° |
|
Roll |
±5° |
|
Distance From Wall |
4.28 - 21.03" (109 - 534 mm) |
|
Finish |
Powder Coat |
|
Security Features |
Security Hardware |
|
Product Dimensions |
18.75" x 17.00" x 4.28"-21.03" (476 x 432 x 109-534 mm) |
|
Weight |
10 lbs (4.5 kg) |
|
Shipping Dimensions |
21" x 11.5" x 5" (533 x 292 x 127mm) |
|
Shipping Weight |
11 lbs (5 kg) |
| UPC Code |
|
Features
- For Indoor/Outdoor protection
- Supports displays with 17.00" W x 16.06" H (432mm W x 408mm H) Mounting Pattern and up to 400 x 400mm VESA compliant
- +15°/-5° tilt, 90° swivel
- 21.03" (534mm) arm extension when collapsed 4.28" (109mm) from the wall
- 16" double stud wall plate for increased stability
- Display side and wall side security hardware included
- Wood, concrete and cinder block mounting hardware included
- Black or gray color options
Literature (Please open the following documents for more technical information)
|
Product Sheet - Peerless ESA 746PU or ESA 746PU-S Corrosion Resistant Articulating Wall Mount |
|
|
Installation Instructions - Peerless ESA-746PU or ESA-746PU-S Articulating Wall Mount Arm |
|
- pdf
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model ESA746PU, ESA746PU-S
- Manufacturer Peerless Mounts
- Part Number ESA746PU, ESA746PU-S
- Color Black or Stone Gray
- Dimensions (W x H x D) 18.75" x 17.00" x 4.28"-21.03" (476 x 432 x 109-534mm)
- Weight 10lb (4.5kg)
- Weight Capacity 80lb (36kg)
- Shipping Dimensions 21" x 11.5" x 5" (533 x 292 x 127mm)
- Shipping Weight 11lb (5kg)
- Monitor Size 26" to 46"
- Mounting Pattern 17.00" W x 16.06" H (432mm W x 408mm H) Mounting Pattern and up to 400 x 400mm VESA
- Swivel +90/-90 degree
- Tilt +15/-5 degree
- Roll ±5 degree
- Distance From Wall 4.28 - 21.03" (109 - 534mm)
- Warranty Limited 5 year
- Mounting Options Wall
