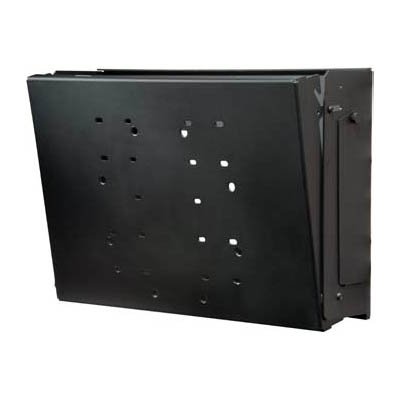

Peerless DS415 Tilt Wall Mount with Storage for 32" to 52" Display up to 150 lbs
This product has been discontinued.
Description
Peerless DS415 low-profile, versatile and easy to install solution is designed for wide latitude of digital signage applications including educational and entertainment facilities. It is quick and simple to install. The VESA and PLP adapter plate hole pattern fits a large range of make and model displays from 32" to 52". The storage area provides easy access via its two side panels to electronic components for maintenance and hassle free content updates. In addition, the mount offers incremental tilt in 0, 5, and 10 degrees ideal for mounting the display at eye level or above.
Technical Drawing
Technical Specifications
|
Screen Size |
32" to 52" |
|
Tilt |
0, 5 and 10 degree |
|
Mounting Pattern |
VESA 100 x 100, 200 x 100, and 200 x 200mm |
|
Weight Capacity |
150lb (68kg) |
|
Finish |
Powder Coat |
|
Security Features |
Security Hardware |
|
Product Dimensions |
17.97" x 12.21" x 4.18" (457 x 311 x 107mm) |
|
Weight |
15.14lb (6.89kg) |
|
Shipping Dimensions |
24.5" x 14.13" x 5.5" (622 x 359 x 139mm) |
|
Shipping Weight |
19lb (8.67kg) |
|
UPC Code |
735029250395 |
Features
- Mounts to studs on 16" (406mm) centers
- Access panels on both sides of the mount provide ready access to electronic components
- Stores electronic components 3.6" x 10.8" x 14.1" (91 x 275 x 358mm) maximum
- Designed for use with Peerless-AV PLP adapter plates
- VESA 100x100, 200x100 and 200x200mm compliant
- Supports up to 150lbs (68kg)
Literature (Please open the following documents for more technical information)
|
Product Sheet - Peerless DS-415 Tilt Wall Mount with Storage |
|
|
Installation Instructions - Peerless DS 415 Tilt Wall Mount with Storage |
|
- pdf
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model DS415
- Manufacturer Peerless Mounts
- Part Number DS415
- UPC 735029250395
- Color Black
- Dimensions (W x H x D) 17.97" x 12.21" x 4.18" (457 x 311 x 107mm)
- Weight 15.14lb (6.89kg)
- Weight Capacity 150lb (68kg)
- Shipping Dimensions 24.5" x 14.13" x 5.5" (622 x 359 x 139mm)
- Shipping Weight 19lb (8.67kg)
- Monitor Size 32" to 52"
- Tilt 0, 5 and 10 degree
- Mounting Pattern VESA 100 x 100, 200 x 100 and 200 x 200mm compliant
- Storage Up to 3.6" x 10.8" x 14.1" (91 x 275 x 358mm)
- Warranty Limited 5 year
- Mounting Options Wall
