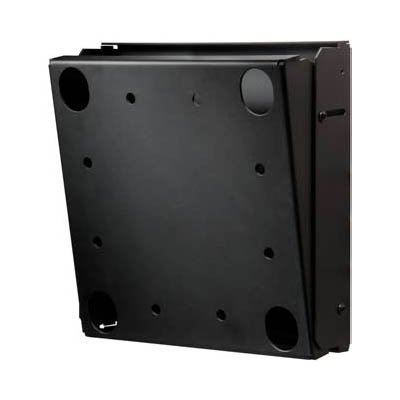

Peerless DS246 Tilt Wall Mount with Storage for LG M2900S-BN and M3800S-BN Stretch Screens
This product has been discontinued.
Description
Designed to hold LG stretch screen, models LG M3800S-BN and LG M2900S-BN, peerless DS246 (with use of PLP-V4X2) provides a dedicated wall mount that performs in either portrait or landscape orientation. This solution incorporates a two-piece design for quick, simple and clean installations. It features plenty of room for screen ventilation extending the life of the monitor and storage behind for a clean, clutter-free application. This mount offers up to 12° of variable forward tilt to capture the optimal viewing angle while combining the theft deterrence feature with included security fasteners, making this mount ideal for digital signage in any application

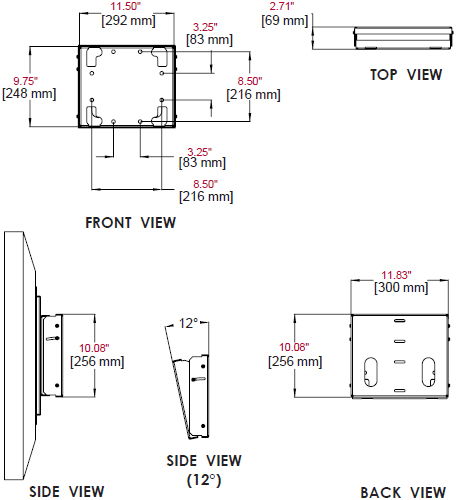

Technical Drawing
Technical Specifications
|
Screen Size |
29"/38" |
|
Tilt |
Up to 12 degree |
|
Compatible |
LG M3800S-BN or LG M2900S-BN Stretch Screens |
|
Weight Capacity |
50 lb (22 Kg) |
|
Finish |
Powder Coat |
|
Security Features |
Security Hardware |
|
Product Dimensions |
11.83" x 10.08" x 2.71" (300 x 256 x 69 mm) |
|
Weight |
11.2 lb (5.09 Kg) |
|
Shipping Dimensions |
15.125" x 15.125" x 7.5" (384.175 x 384.175 x 190.5 mm) |
|
Shipping Weight |
13.97 lb (6.35 Kg) |
|
UPC Code |
735029262008 |
Features
- Designed to fit LG M3800S-BN or LG M2900S-BN
- For use with PLP-V4X2
- Works in either portrait or landscape
- Allows for forward tilt up to 12 degrees
- Cable management stores cables for clean, uncluttered look
- Single stud installation
- Holds 50 lb (22 kg)
- Convenient storage capacity of 11.3" x 9.5" x 2.5" (287 x 241 x 63 mm) allows for cord, wire, and peripheral storage
Literature (Please open the following documents for more technical information)
|
Product Sheet - Peerless DS-246 Tilt Wall Mount with Storage |
|
|
Installation Instructions - Peerless DS 246 Tilt Wall Mount with Storage |
|
- pdf
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model DS246
- Manufacturer Peerless Mounts
- Part Number DS246
- UPC 735029262008
- Color Black
- Dimensions (W x H x D) 11.83" x 10.08" x 2.71" (300 x 256 x 69 mm)
- Weight 11.2 lb (5.09 Kg)
- Weight Capacity 50 lb (22 Kg)
- Shipping Dimensions 15.125" x 15.125" x 7.5" (384.175 x 384.175 x 190.5 mm)
- Shipping Weight 13.97 lb (6.35 Kg)
- Compatible LG M3800S-BN or LG M2900S-BN Stretch Screens
- Monitor Size 29" or 38"
- Storage 11.3" x 9.5" x 2.5" (287 x 241 x 63 mm) for cord, wire and peripheral storage
- Tilt up to 12 degree
- Warranty Limited 5 year
- Mounting Options Wall
