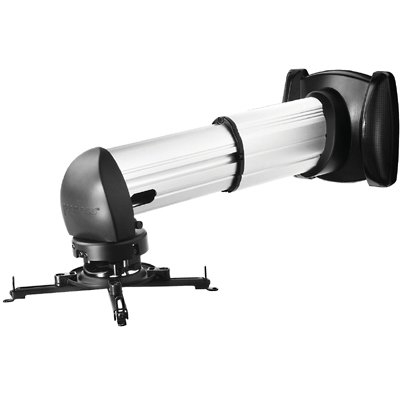

Peerless PSTA-600 Short Throw Projector Mount with Arm Length up to 23.62" and 25 lbs Projectors

This product has been discontinued.

Description

Peerless PSTA-600 projector short throw kit is easily adjustable to accommodate ultra-short and short throw projector distance requirements and includes the Peerless Universal PRS Projector Mount that makes image alignment easy with three axis of adjustment enabling precise image alignment

Technical Drawing

Technical Drawing for Peerless PSTA-600 Short Throw Projector Mount Arm

Technical Specifications

Color	Black, Silver
Dimensions (W x H x D)	25.0" x 9.6" x 10.6" (635 x 244 x 271mm)
Weight	8.5lb (3.8kg)
Weight Capacity	25lb (11.3kg)
Finish	Aluminum alloy, powder coat
Shipping Dimensions	20.7" x 10.1" x 11.0" (526 x 254 x 279mm)
Shipping Weight	10.5lb (4.7kg)
Tilt	+5/-20°
Swivel	360°
Roll	±10°
Package Contents	Short throw arm End cap PRS-UNV Installation hardware Assembly instructions

Features

Fast and easy to install
Easily adjustable to accommodate ultra-short and short throw projectors
Aluminum alloy telescoping arm with lock down slot

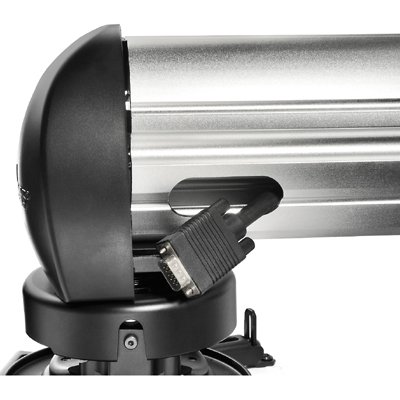

Fully integrated cable management system conceals and protects cables for a clean finish
Kitted with Peerless PRS projector mount offering 10.6”H x 9.6”W (271x244)
Arm extension = 16 - 23"
Depth from wall = 18 - 25"
Max weight load 25lbs (11kg)
