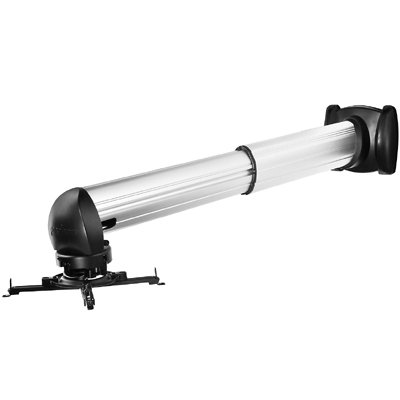

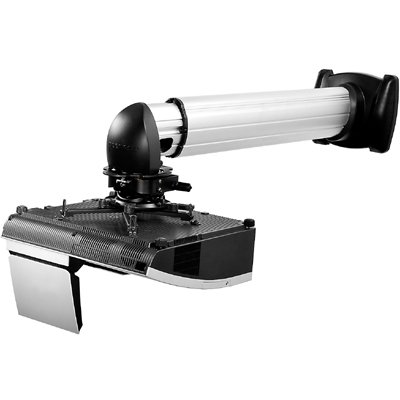

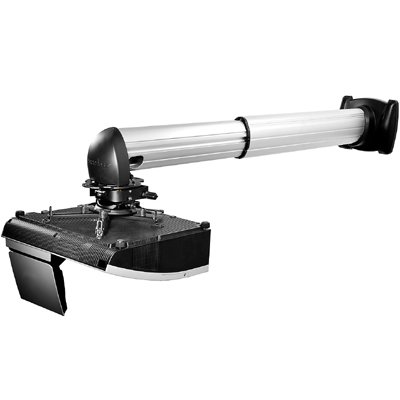

Peerless PSTA-1200 Short Throw Projector Mount with Arm Length up to 47.2" and 25 lbs Projectors

Peerless PSTA-1200 Short Throw Projector Mount with Arm Length up to 47.2" and 25 lbs Projectors

This product has been discontinued.

Description

Peerless PSTA-1200 projector short throw kit is easily adjustable to accommodate ultra-short and short throw projector distance requirements and includes the Peerless-AV Universal PRS Projector Mount that makes image alignment easy with three axis of adjustment enabling precise image alignment

Technical Drawing

Technical Drawing for Peerless PSTA-1200 Short Throw Projector Mount Wall Arm



Technical Specifications

Color

Black, Silver

Dimensions (W x H x D)

48.6" x 9.6" x 10.6" (1235 x 244 x 271mm)

Weight

12.5lb (5.6kg)

Weight Capacity

25lb (11.3kg)

Finish

Aluminum alloy, powder coat

Shipping Dimensions

32.5" x 10.1" x 11.0" (825 x 254 x 279mm)

Shipping Weight

14.5lb (6.5kg)

Tilt

+5/-20°

Swivel

360°

Roll

±10°

Package Contents

  • Short throw arm
  • End cap
  • PRS-UNV
  • Installation hardware
  • Assembly instructions

Features

  • Fast and easy to install
  • Easily adjustable to accommodate ultra-short and short throw projectors
  • Aluminum alloy telescoping arm with lock down slot
  • Fully integrated cable management system conceals and protects cables for a clean finish
  • Kitted with Peerless PRS projector mount offering 10.6”H x 9.6”W (271x244)
  • Arm extension = 29 - 47"
  • Depth from wall = 31 - 48"
  • Max weight load 25lbs (11kg)

Literature (Please open the following documents for more technical information)

Product Sheet - Peerless PSTA1200 Short Throw Projector Mount with Arm length up to 47.2"

 - pdf

Installation Instructions - Peerless PSTA 1200 Short Throw Projector Mount Wall Arm

 - pdf

Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model PSTA-1200
  • Manufacturer Peerless Mounts
  • Part Number PSTA-1200
  • UPC 735029275756
  • Color Silver and Black
  • Dimensions (W x H x D) 48.6" x 9.6" x 10.6" (1235 x 244 x 271mm)
  • Weight 12.5lb (5.6kg)
  • Weight Capacity 25lb (11.3kg)
  • Shipping Dimensions 32.5" x 10.1" x 11.0" (825 x 254 x 279mm)
  • Shipping Weight 14.5lb (6.5kg)
  • Arm Length 29-47" (755-1200mm)
  • Tilt +5/-20 degree
  • Swivel 360 degree
  • Roll ±10 degree
  • Depth from Wall 31-48"
  • Warranty Limited 5 year
  • Mounting Options Short Throw
