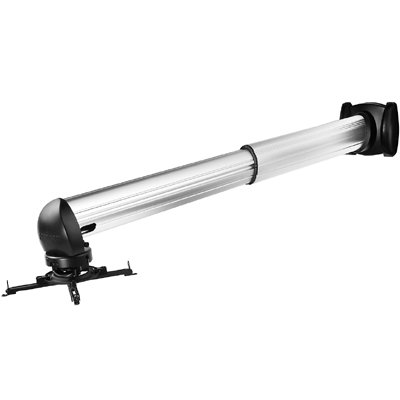

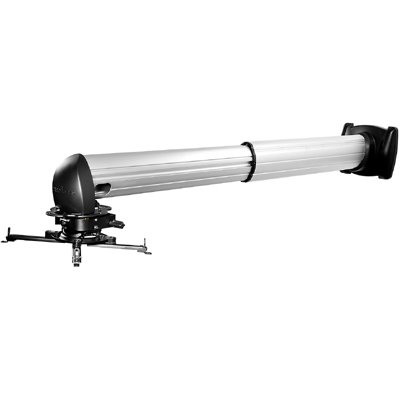

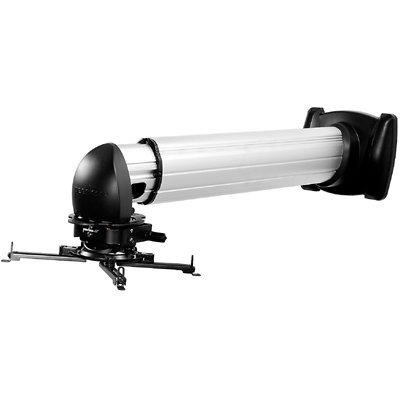

Peerless PSTA-1600 Short Throw Projector Mount with Arm Length up to 63" and 25 lbs Projectors

This product has been discontinued.

Description

Peerless PSTA-1600 projector short throw kit is easily adjustable to accommodate ultra-short and short throw projector distance requirements and includes the Peerless-AV Universal PRS Projector Mount that makes image alignment easy with three axis of adjustment enabling precise image alignment

Technical Drawing

Technical Drawing for Peerless PSTA-1600 Short Throw Projector Mount Wall Arm

Technical Specifications

Color	Black, Silver
Dimensions (W x H x D)	64.37" x 9.6" x 10.6" (1635 x 244 x 271mm)
Weight	15.5lb (7.0kg)
Weight Capacity	25lb (11.3kg)
Finish	Aluminum alloy, powder coat
Shipping Dimensions	40.5" x 10.1" x 11.0" (1029 x 254 x 279mm)
Shipping Weight	17.5lb (7.9kg)
Tilt	+5/-20°
Swivel	360°
Roll	±10°
Package Contents	Short throw arm End cap PRS-UNV Installation hardware Assembly instructions

Features

Fast and easy to install
Easily adjustable to accommodate ultra-short and short throw projectors
Aluminum alloy telescoping arm with lock down slot
Fully integrated cable management system conceals and protects cables for a clean finish
Kitted with Peerless PRS projector mount offering 10.6”H x 9.6”W (271x244)
Arm extension = 45- 63"
Depth from wall = 46- 64"
Max weight load 25lbs (11kg)

Literature (Please open the following documents for more technical information)

Product Sheet - Peerless PSTA1600 Short Throw Projector Mount with Arm length up to 63"	- pdf
Installation Instructions - Peerless PSTA 1600 Short Throw Projector Mount Arm	- pdf
