Chief K2P200 KONTOUR Dual Arm Pole Mount, Dual Monitor
This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.
Similar Products
Related Products:
|
Part Number Description
|
| K2P200B Black KONTOUR Dual Arm Pole Mount for Dual Monitors (10-30") up to 25 lbs/each monitor |
| K2P200S Silver KONTOUR Pole Mount Dual Arm for Dual Monitors (10-30") up to 25 lbs/each monitor |

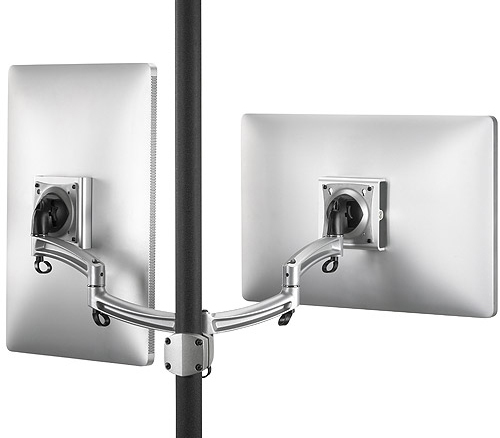

Chief K2P-200B or K2P-200S Kontour Dual Arm Pole Mount for Dual Monitors
Features of Chief K2P 200B or K2P 200S:
- Easy installation on pre-existing poles with 1.5 - 1.9" (38 - 48 mm) outer diameters.
- Allows independent movement of each monitor for maximum ergonomic flexibility.
- VESA 75 x 75 mm and 100 x 100 mm compliant (interface brackets available for non-VESA compliant displays).
- Sleek, solidly-constructed forged aluminum arms.
- Teardrop hole pattern makes mounting the screens quick and easy
- Tool-free cable management covers for a clean, professional look.
- Patented Centris Turn-Tite Tilt. Tilts -15/+15 for a flexible ergonomic solution.

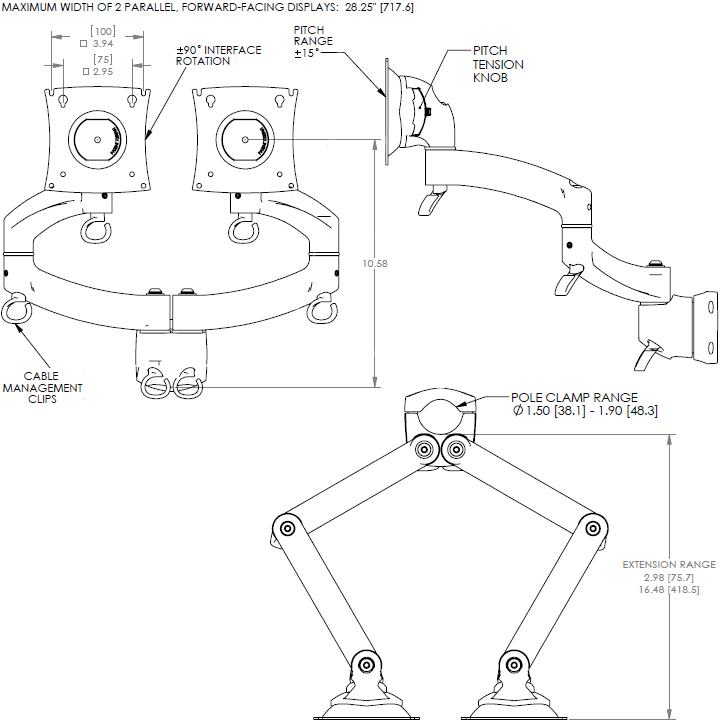

Technical Drawing of Chief K2P200 Series Kontour Dual Arm Pole Mount
Description of Chief K2P 200 Series:
Whether in the office, in healthcare facilities or at home, Kontour monitor arms create a more productive and comfortable workspace. Elegantly designed with a forged aluminum body, Kontour mounts will stand the test of time both functionally and aesthetically.
Specification of Chief K2P-200 Series:
|
Color: |
Black, Silver |
|
Maximum Extension: |
19" (482.6mm) |
|
Minimum Depth: |
2.2" (55.9mm) |
|
Mounting Pattern Compatibility (Universal Versions): |
75 x 75 mm, 100 x 100 mm |
|
Notes: |
Weight capacity is per monitor |
|
Number of Monitors: |
2 |
|
Orientation: |
Landscape, Portrait |
|
Overall Dimensions (H x W x D): |
14.0" x 17.0" x 4.5" (356 x 432 x 114mm) |
|
Pole Diameter Range: |
1.5 - 1.9" (38 - 48mm) |
|
Post-Installation Leveling (Roll): |
Yes |
|
Solution Type: |
Universal |
|
Tilt: |
+75°,-10° |
|
TV Width Range: |
10 - 28.25" (254 - 718mm) |
|
Typical Screen Sizes: |
10-30" |
|
Weight Capacity: |
25 lbs (11.3kg) |
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model K2P200B, K2P200S
- Manufacturer Chief Mounts
- Part Number K2P200B, K2P200S
- Color Black, Silver
- Maximum Extension 19" (482.6mm)
- Minimum Depth 2.2" (55.9mm)
- Mounting Pattern 75 x 75mm, 100 x 100mm
- Overall Dimensions 14.0" x 17.0" x 4.5" (356 x 432 x 114mm)
- Pole Diameter 1.5 - 1.9" (38 - 48mm)
- Tilt +75, -10 degree
- TV Width Range 10 - 28.25" (254 - 718mm)
- Screen Size 10 - 30 in
- Weight Capacity 25 lbs (11.3kg) per Monitor
- Shipping Weight 8.87 lbs
- Mounting Options Pole
