Ergotron 24-302-085 PowerShuttle Tablet Charging Cart

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 13.3"

1.5 kg

Part Number

North America = 24-302-085;United Kingdom/Singapore/Hong Kong = 24-303-085; Europe = 24-304-085; China = 24-305-085; Japan = 24-306-085; Australia/New Zealand = 24-307-085

Description

PS Tablet Charging Cart, AC, with PowerShuttle Technology (black)

Includes

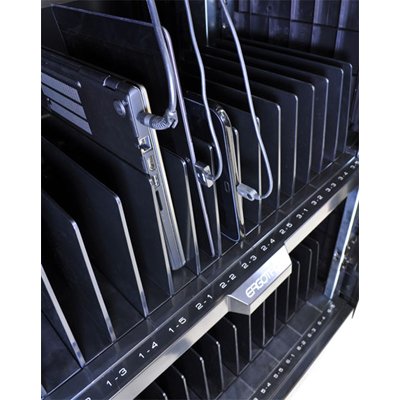

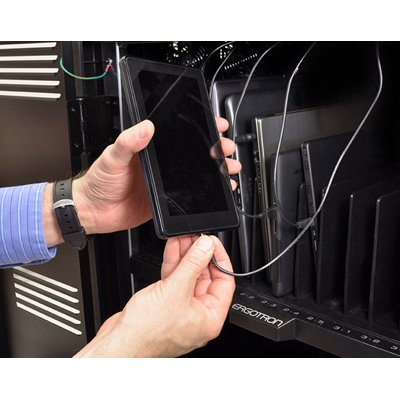

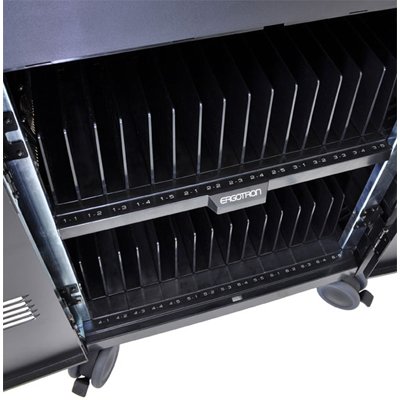

• 30 device slots
• 12' (3.8 m) power cable
• Two custom country-specific 15 outlet power strips
• Cable management tray
• Four 4" locking medical grade casters
• External auxiliary outlet
• Integrated handle

Maximum Device Size

12.8”W x 11.4”H x 1.0”D (325 x 290 x 25 mm)

Maximum Device Weight

≤ 3.3 lbs (1.5 kg)

PowerShuttle Technology

• Efficient charging system uses Ergotron’s innovative PowerShuttle Technology (patent pending) to automatically optimize total charge time for up 30 tablets or Ultrabooks
• Cart is powered using one country-specific power cord (12', 3.8 m) plugged into a wall outlet. Cord wrap is recessed into side of cart
• Never waste time charging an empty set of slots
• Safely prevents overloading electrical circuits by efficiently grouping the number of devices that are charged at one time
• Includes country-specific external auxiliary outlet for other peripheral devices (2 receptacles for North America/Japan models, 1 for all other countries). Max current 100-120V ~50/60Hz, 4A or 220-240V ~50/60H, 5.5A. Power is continuous to these outlets when in use

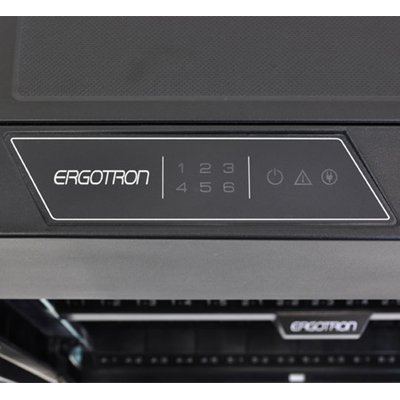

• LED status indicators provide users with zone charging status

How it works: When the cart is plugged in, the system automatically measures and stores the current draw of the external outlet and the power strips inside the cart (5 devices per zone). Max wall current is 12A for 100-120V countries and 8A for 220-240V countries. The PowerShuttle subtracts the current for the always-on devices (auxiliary outlets) from the max wall current. This leaves the amount of current available for the power strips. PowerShuttle then groups the power strips in the minimum number of groups for charging without exceeding the max wall current

• Lightweight; up to 49% smaller than competitive product, this compact cart design makes it easy to safely move from room to room
• Cart Dimensions: 28.0"W x 24.4"D x 40.5"H (71.1 x 62.0 x 101.6 cm)
• Cart Weight (Unloaded): 159 lbs (72.1 kg)

• Rugged steel frame construction, steel front and rear doors, and molded fire-rated ABS exterior withstands heavy-use classroom setting

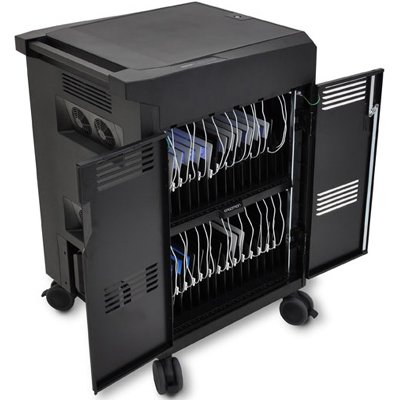

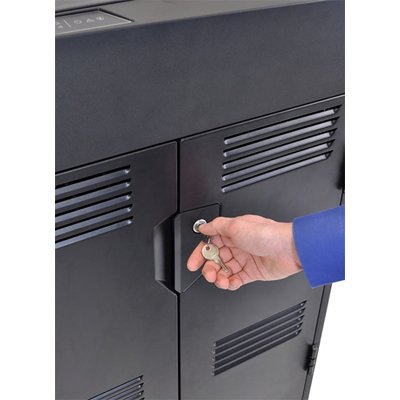

• Robust two-point key and lock assembly keeps devices secure. Double-hinged, locking steel front doors open 180º to reveal storage shelves

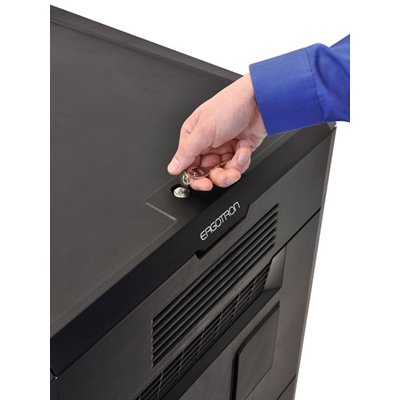

• Separate top and back storage compartments provide IT access to AC adapter storage

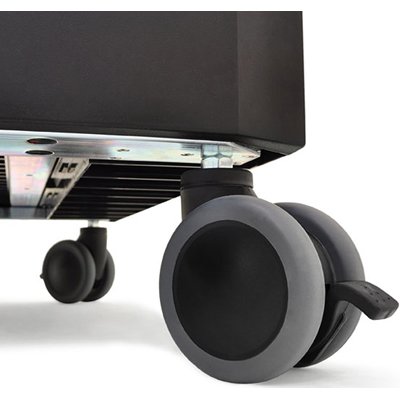

• Four 4" (10 cm) locking medical-grade, dual-wheel casters.

• Unique cable management channels inside the storage area keep laptop power cords neatly stowed

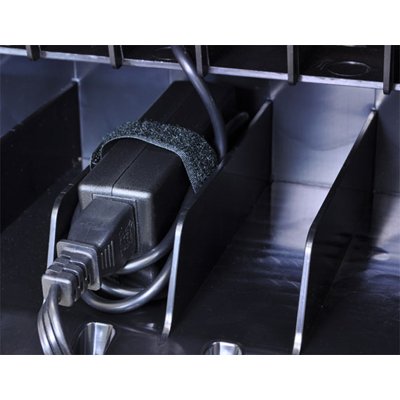

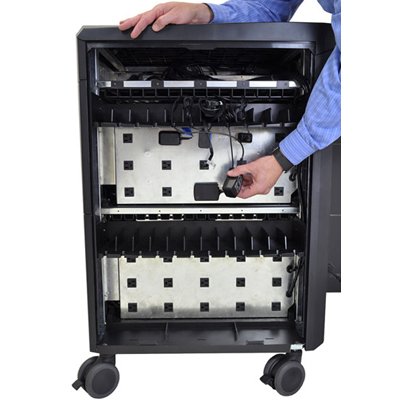

• Cables route from laptop compartment to separate back AC adapter storage compartment. Brick storage rack is available when brick-style adapters are used. Power brick shelf slot size: 2.3"W x 6.9"D x 2.9"H (59 x 175 x 74 mm)

Certification:

• UL 60950 Safety of Information Technology Equipment, CAN/CSA C22 2 No. 60950
• UL 1667 Tall Institutional Carts for use with Audio, Video and Television Type Equipment
• ICES-003 Issue 4, Class A
• FCC Part 15 Class A
• Country-specific certification as required.
• RoHS and Reach compliant material used.

• Cart ships fully assembled with the exception of the top shelf dividers. Dividers are added after device power cables are installed
• Venting is provided in side panels, the front doors, and the rear door of the cart. 1-12V DC continuous operating fan is included in the top compartment to keep equipment cool

Operating Temperature

32° to 86°F (0°C to 30°C)

Power

North America/Japan: 100-120V ~ 50/60Hz, 12A. UK/Europe/Australia/China: 220-240V ~ 50/60Hz, 8A

Shipping Dimensions

32.7" x 27.6" x 46.4" (830 x 702 x 1179 mm)

Shipping Weight

216 lbs (98 kg)

Warranty

Five (5) years; two (2) years for power module; one (1) year for other electrical components
