Chief K1D2I2B Kontour Dynamic Desk Clamp Mount with iPad Bracket
This product has been discontinued.
Description

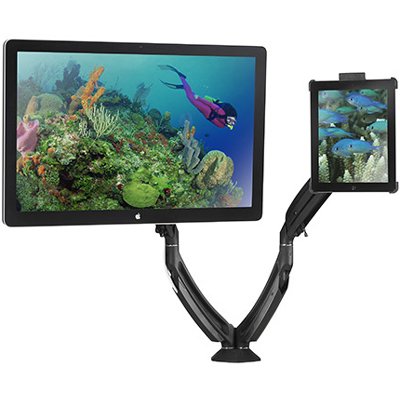

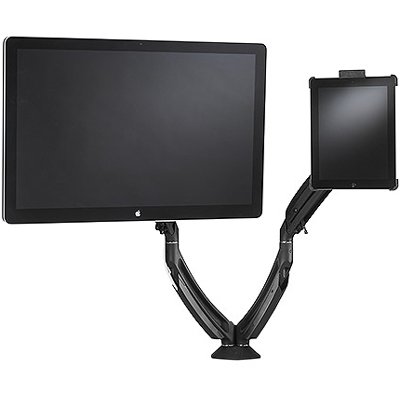

Chief K1D2I2B includes the K1D200B Dynamic Desk Clamp Mount and the FSBI2B Portable iPad Interface Bracket for an iPad 2 or current iPad. Also included is the KRA400B weighted plate adapter for use with the FSBI2B on the dynamic lifting arm

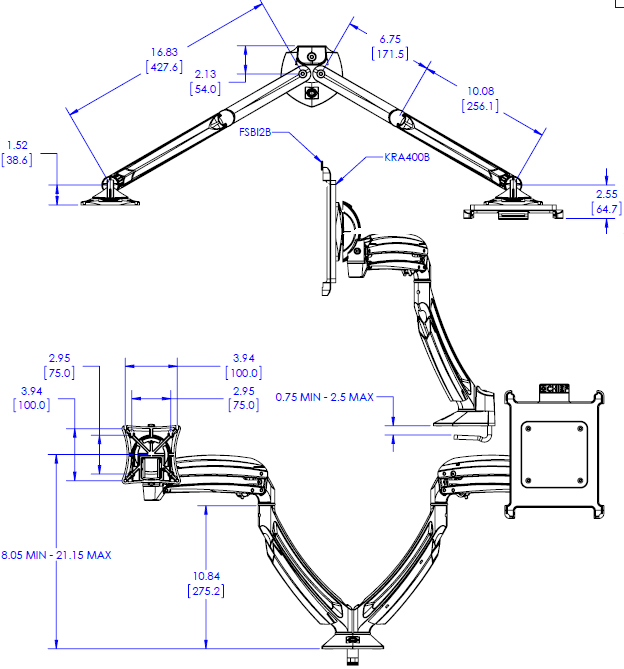

Technical Drawing
Features
- Sleek, solidly-constructed forged aluminum arms
- Independently position the monitor and iPad for optimal use
- Dynamic height adjustment using gas-spring technology
- Compatible with the iPad 2 and current generation iPad
- Drop-in, pop-out the iPad for portability
- Tool-free cable management covers for a clean, professional look
- Patented Centris Extreme Tilt - tilts -75/+10 for an ultimate ergonomic solution
- Easily clamps to edge of desk (grommet and bolt through accessory available, separately)
Technical Specifications
|
Color |
Black |
|
Desktop Thickness Range |
0.75 - 2.5" (19 - 64mm) |
|
Dynamic Height Adjustment |
13" |
|
Maximum Extension |
19.9" (505.5mm) |
|
Minimum Depth |
2.09" (53.1mm) |
|
Mounting Pattern Compatibility (Universal Versions) |
75x75 mm, 100x100 mm |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
15.0" x 16.2" x 2.1" (381 x 411 x 53mm) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Solution Type |
Universal |
|
Tilt |
-75° , +10° |
|
Weight Capacity |
5 - 25 lbs (2.3 - 11.3kg) |
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model K1D2I2B
- Manufacturer Chief Mounts
- Part Number K1D2I2B
- Color Black
- Desktop Thickness Range 0.75 - 2.5" (19 - 64 mm)
- Dynamic Height Adjustment 13"
- Maximum Extension 19.9" (505.5 mm)
- Minimum Depth 2.09" (53.1 mm)
- Mounting Pattern 75 x 75 mm, 100 x 100 mm
- Dimensions 15.0" x 16.2" x 2.1" (381 x 411 x 53 mm)
- Tilt - 75 degree, +10 degree
- Weight Capacity 5 - 25 lbs (2.3 - 11.3 kg)
- Mounting Options Desk
