Innovative 5800-S-14 EVO LCD Monitor Arm with 14" Pole

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 17344
Recommended Accessories
List Price: $198.00
Our Price: $138.60
Shipping: $14.95 *
Usually ships in 5 to 7 business days
* applies to Contiguous United States

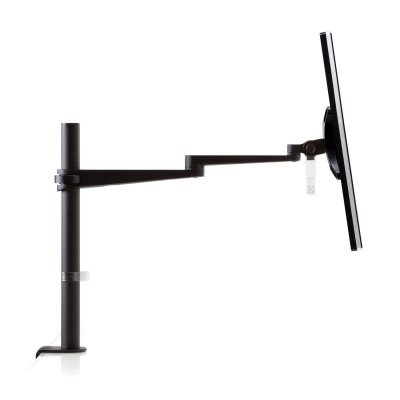

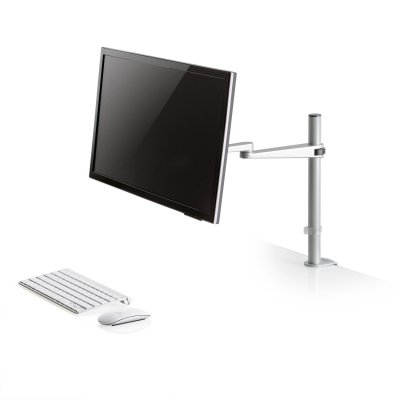

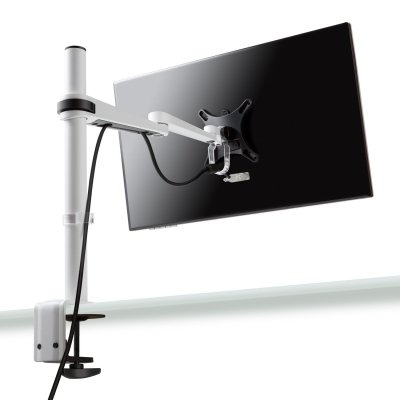

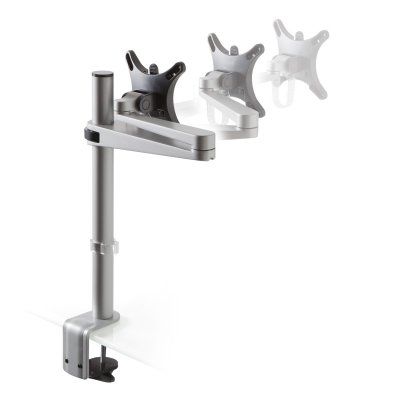

Innovative 5800 EVO Pole Arm is an exceptionally sleek mount which suspends a monitor above the work surface. Easily adjust monitor height and position. The EVO Pole Arm is loaded with user-friendly features, such as a quick-install VESA bracket and integrated mount handle (for speedy setup).

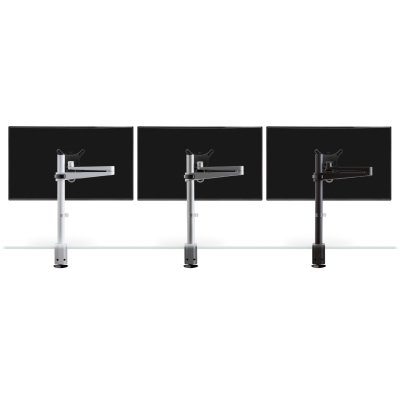

Meet the EVO Pole System…styled to match the award-winning EVO LCD Arm, offering a highly configurable method of mounting monitors. The EVO Pole System enables you to suspend arrays of 1-4 monitors above the work surface, with easy height adjustment and positioning. With sleek EVO styling, this mounting system will contribute to the aesthetic of any modern office environment.


Technical Drawing

Technical Drawing for Innovative 5800 EVO Pole Arm


Technical Specifications

Horizontal Range

18.6″ (47.2 cm)

Pole Size

14″ (35.5 cm)

Monitor Tilt

90° up, 20° down from center

Monitor Pivot

Landscape to portrait

Monitor Compatibility

VESA 75mm and 100mm

Cable Management

Cables are clipped beneath arm

Mounting Options

Desk Edge, Grommet, Through-Desk

Monitor Weight

Up to 20 lbs (9.0 kg)



  • Integrated quick-install/quick release of monitor
  • Easy height adjustment of arm on pole
  • Pivot, tilt and rotate monitor
  • Supports monitors up to 20 lbs
  • Integrated Cable management keeps cables organized
  • Standard desk clamp mount with integrated handle, and also compatible with Innovative Slatwall and Slatrail mounts
  • Environmentally-friendly manufacturing methods, and extensive use of recycled and recyclable components



Innovative Returns Policy

All returns must be labeled with a valid Return Authorization (R/A) number, which can be obtained by contacting, on the outside of packaging. Restocking fee of 20% will be applied on all returns. Products must be in brand new, saleable condition, and never installed. Defective items may be returned within limits of the Warranty. Non-defective Custom-configured Items are not returnable. All return must be made within 30 days of receipt.

Model 5800-S-14
Manufacturer Innovative LCD Arms
Part Number 5800-S-14
Color 104 - Vista Black, 124 - Silver, 248 - White
Horizontal Range 18.6" (47.2 cm)
Pole Length 14" (35.5 cm)
Tilt Up 90 degree, down 20 degree
Mounting Pattern VESA 75mm and 100mm
Mounting Options Desk Edge, Grommet, Through-Desk
Monitor Weight Up to 20 lbs (9.0 kg)
