Ergotron 24-327-085 Tablet Management Desktop 16, with ISI

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

1.0 kg

Part Number

• North America = 24-327-085

• United Kindom/Ireland = 24-333-085

• Europe = 24-339-085

• Hong Kong/Singapore = 24-333-085

• Australia/New Zealand = 24-345-085;

• China = 24-351-085

• Japan = 24-357-085

• Korea = 24-400-085

• Thailand = 24-409-085

• India = DM16-1021-B

Description

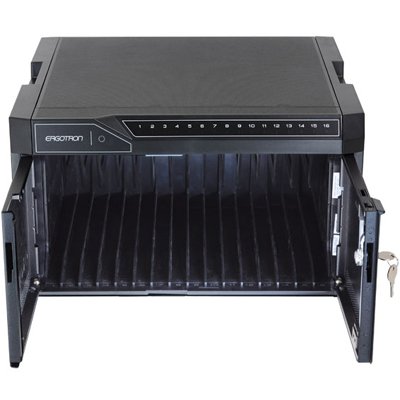

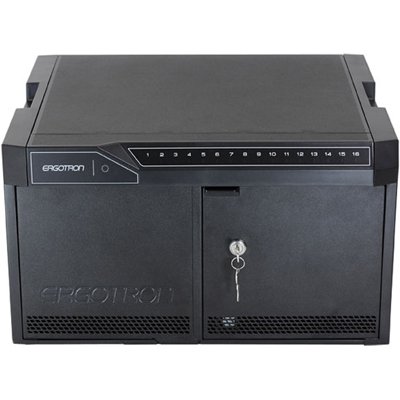

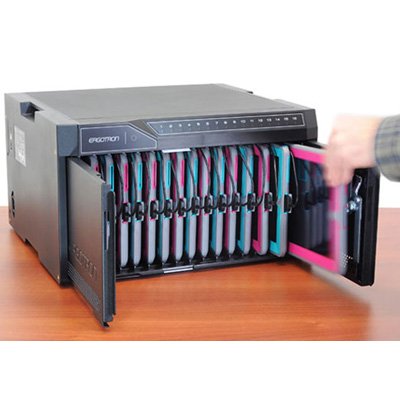

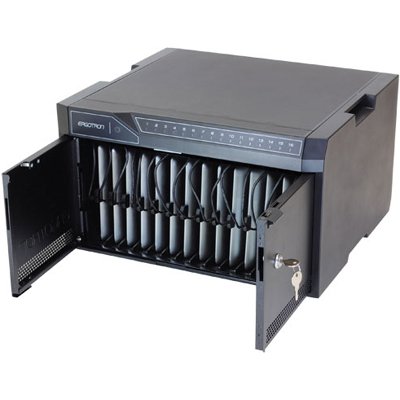

Tablet Management Desktop, One Module, 16 device capacity, with Individual Status Indicators (black)

Tablet Slot Size

7.9"H x 11.3"D x 0.85"W (20 x 28.8 x 2.2 cm). Tablet, power cord, and any cover or case must fit within these dimensions

Weight Capacity

Individual tablets up to 2.2 lbs (1 kg); top surface holds up to 25 lbs (11.4 kg)

Certification

• UL 60950-1 Information Technology Equipment - Safety, CAN/CSA C22.2 No. 60950, IEC 60950-1 worldwide safety standard

• For EMC: FCC part 15 Class A, ICES-003 Class A, AS/NZS CISPR22 Class A, EN55022 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, EN55024

• Complies with USB 2.0 standard

• Acoustic testing indicates very quiet operation at 41.4 dBA

Compatible Devices

• iPad Air

• iPad mini with Retina Display

• iPad mini

• iPad (4th generation)

• iPad (3rd generation)

• iPad 2

• iPad

• Samsung Galaxy Tab family (≤ 8.4" screens)

• Samsung Galaxy Note family (≤ 8.4" screens)

• Amazon Kindle family

• Google Nexus family

Android tablets that are fully USB 1.2 charging standard compliant are compatible, provided the device fits within the slot size. For non-Apple tablets, also consider the Zip12 Desktop Cabinet.

The following cases have been tested and confirmed to work with this product. This is not a comprehensive list. If your cover fits within the maximum dimensions of 7.9"H x 11.3"D x 0.85"W (20 x 28.8 x 2.2 cm) with the cable plugged in, it should also fit

• iPad Air cases: Apple iPad Air Smart Case, Belkin Air Protect, Belkin MultiTasker, Belkin Shield Swing, Griffin Survivor, Gumdrop Drop Tech, Otterbox Defender, Shockdrop, Speck FitFolio, STM dux, STM studio

• iPad (4th generation) cases: Apple iPad Smart Case, Belkin Protective Case with Stand, Belkin Tri-Fold Folio, Belkin Snap Shield, Brenthaven Bionic, Casecrown Trifold Case, Casecrown Omni, Griffin Intellicase, Gumdrop Drop Tech, Hard Candy Street Skin, Logiix Roadster II, Otterbox Defender Series (without separate top cover), Otterbox Reflex Series, Speck FitFolio, STM Skinny 3, STM Skinny Pro, STM Grip, STM Dux, Targus SafePort Rugged, Targus SafePort Rugged Max Pro, Targus Slim Case, Trident Aegis, Trident Kraken AMS

• Provides full 2.1A charging capability to each device. The amperage automatically downscales to a device’s requirements if necessary

• All tablets charge at the same time using the power provided through one wall plug. Module does not need to cycle power

• Tablets will not sync and charge at the same time. Master laptop must be unplugged from auxiliary USB outlet for tablets to charge

• LED Individual Status Indicators (ISI) monitor charging progress of each tablet. With iPad (1st generation) and iPad 2, each individual light will continue to stay lit after unit is completely charged. When used with iPad (3rd generation), iPad with Retina Display, or iPad mini using iOS 6.0 or later, the ISI will turn off shortly after the unit is completely charged

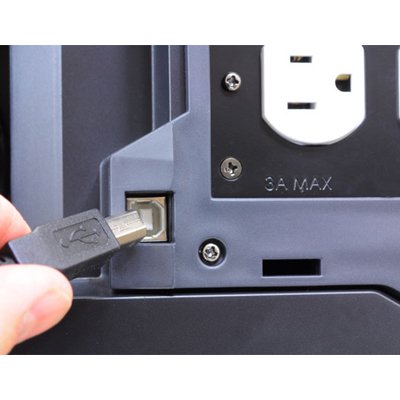

• Syncs tablets using USB 2.0. External USB 2.0-Standard B receptacle provided to plug in laptop

• Syncing can be done using a Macintosh laptop and Apple Configurator or iTunes software available from Apple. Unit automatically switches from charging to syncing mode when the laptop is plugged into the USB receptacle. USB cable must be unplugged from cart to return to charging mode

• Wireless syncing friendly: supports wireless syncing using third-party MDM solution. ABS enclosure presents no signal interference

Designed

For use with cables included with your devices. Compatible with Apple 30-pin and Lightning connectors. For the perfect cable length, Ergotron Cable Kits are recommended: 30-pin to USB Cable Kit (pt # 97-766) and Lightning to USB Cable Kit (97-800). Cables are NOT included with the desktop

Numbered Storage Locations

Help keep carts organized

Auxiliary Electrical Outlet

Max current = 3A at 100-120V; max current = 1.5 at 230V

Power Cord

12.5' (3.8 m) long

Product Dimensions

18.3"W x 16.2"D x 10.4"H (46.5 x 41.1 x 26.4 cm)

Product Weight (unloaded)

29 lbs (13.2 kg)

Shipping Dimensions

21.2" x 18.6" x 12.8" (53.8 x 47.3 x 32.5 cm)

Shipping Weight

35 lbs (15.8 kg)

Warranty

Five (5) years; two (2) years for power module; one (1) year for other electrical components
