Innovative 5702 EVO Dual Monitor Arm
This product has been discontinued.
Description

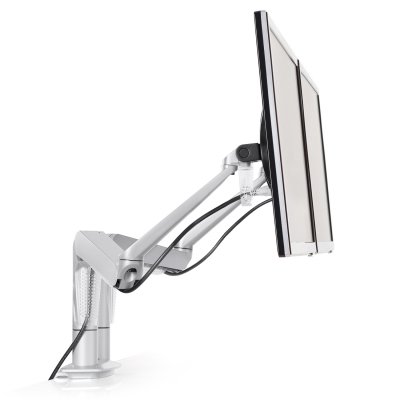

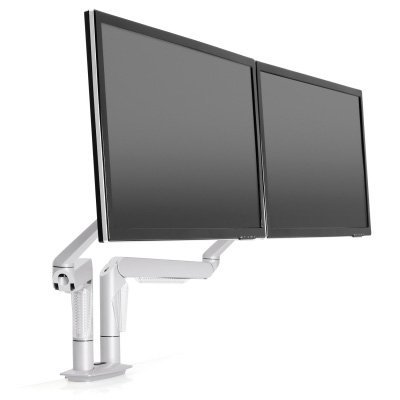

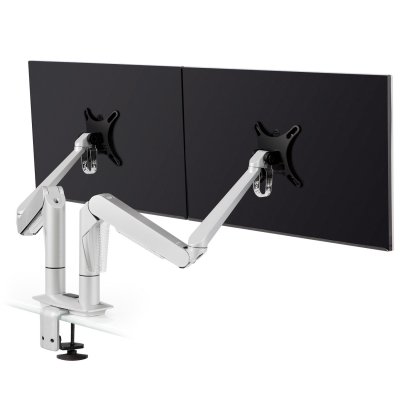

Utilize the award-winning EVO LCD arm in dual monitor applications with Innovative 5702 Dual EVO Mount. It allows you to mount two arms at one point on the desk.
Technical Drawing
Features
- Extremely flexible positioning of dual screens
- Stylish design complements any office environment
- Intuitive function and ease-of-use encourage users to work ergonomically
- Attractive price point enabled by new core Better Balance technology
- Mount includes an integrated handle for easier setup. Clamp to desk edge, through grommet hole, or bolt through desk
- Cable management reduces workplace clutter
- Rotate monitor(s) for portrait or landscape viewing
- 10 year warranty
Technical Specifications
|
Vertical Range |
+/- 5.2" (13.2 cm) from horizontal |
|
Horizontal Range, per arm |
18.6" (47.2 cm) |
|
Rotation |
360° at two joints, 180° at base |
|
Monitor Tilt |
90° up, 20° down from center |
|
Monitor Pivot |
Landscape to portrait |
|
Monitor Compatibility |
VESA 75mm and 100mm |
|
Cable Management |
Cables are clipped beneath arm |
|
Mounting Options |
Desk Edge, Grommet, Through Desk |
|
Monitor Weight (at standard monitor depths) |
7 - 20 lbs (3.2 - 9.0 kg) per monitor |
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model 5702-DC
- Manufacturer HAT Design Works (Innovative)
- Part Number 5702-DC
- Color 104: Vista Black, 124: Silver, 248: White
- Vertical Range +/- 5.2" (13.2 cm) from horizontal
- Horizontal Range 18.6" (47.2 cm) per arm
- Rotation At two joints 360 degree, at base 180 degree
- Tilt Up 90 degree, down from center 20 degree
- Pivot Landscape to portrait
- Mounting Pattern VESA 75mm and 100mm
- Mounting Options Desk
- Monitor Weight 7 - 20 lbs (3.2 - 9.0 kg) per monitor
- Warranty 10 year
- Monitor Arm Types 2 Monitors
- Number of Monitors 2 Monitors
