Ergotron 97-806 StyleView Hot Swap Docking Station

This product has been discontinued.

Description

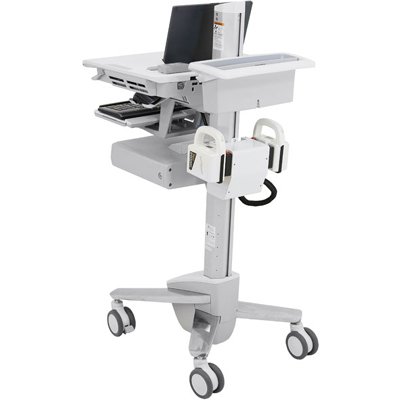

Part of the SV Hot Swap DC Power System, for adding DC power to a non-powered cart. Ergotron 97-806 SV Hot Swap Docking Station attaches to the rear of the cart, distributing power to on-board hardware.

Optimized as an upgrade to SV41-series StyleView carts, with the addition of accessory brackets, this docking station also attaches to other Ergotron non-powered carts (see specifications). For a complete power system, also order SV Hot Swap 120Wh Li-Ion Batteries and the SV Hot Swap Battery Charger.

Product Information

Part Number	97-806
Description	SV Hot Swap Docking Station (white)

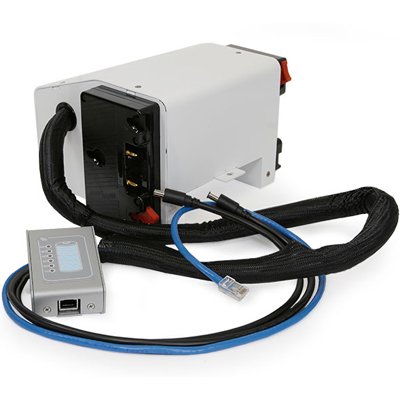

Includes	Docking station Power brick storage brackets Mounting hardware User interface
Complete SV Hot Swap DC Power System	For complete SV Hot Swap DC Power System, order the following components: 97-806 SV Hot Swap Docking Station (1 per cart); 97-807 SV Hot Swap 120Wh Li-Ion Battery (4 per cart); 97-808 SV Hot Swap Battery Charger (1 per cart)
System Compatibility	Optimized for attachment to SV41-series StyleView non-powered carts Neo-Flex WideView Carts (24-189-055 & 24-194-055) and WorkFit-C Carts (24-198-055) with dual t-slot channels are supported. The system will be mounted off-center when attached using provided mounting hardware. If system is to be center mounted, also purchase two 60-587 brackets with the system Neo-Flex Carts (24-205-214 & 24-206-214) that do not include a t-slot channel are supported by purchasing a 97-818-214 bracket (contact Ergotron for details)
Estimated runtimes based on power consumption	15w load = 12.8 hours runtime 20w load = 9.6 hours runtime 30w load = 6.4 hours runtime 40w load = 4.8 hours runtime 50w load = 3.8 hours runtime 60w load = 3.2 hours runtime Not recommended for average loads of more than 60 watts as charge time will exceed runtime
Charge Time	3 hours to 85%, 3.5 hours to 100%
Battery	Has sleep feature/motion detection for extended storage
DC Adapters	DC power output only: System may require DC adapters to support computer equipment's current and voltage levels. DC adapters purchased separately - not provided with system
AC Power Conversion	For your equipment requires an inverter. Inverters purchased separately - not provided with system
Docking Station, Batteries and Charger	Can all be cleaned following Ergotron’s recommended cleaning steps for carts
SV Hot Swap DC Power System	Can be integrated on your cart along with your computer equipment by ordering service SKU SRVC-PI-02 (10 cart minimum)
REACH compliant	Not fully RoHS, WEEE, or REACH compliant
Shipping Dimensions	14" x 12" x 8" (35.6 x 30.5 x 20.3 cm)
Shipping Weight	6 lbs (2.7 kg)
Warranty	Three (3) years

Benefits

Provides dependable DC power to support your DC-powered computer hardware
Accommodates uninterrupted workflow, allowing battery changes without powering down
Long runtime potential - "Hot Swap" the fully charged batteries at the beginning of a shift and forget about it

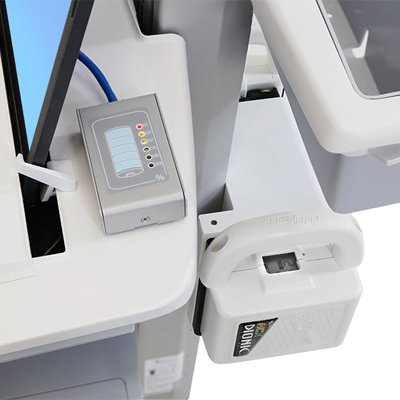

Includes user interface that shows remaining charge level of batteries

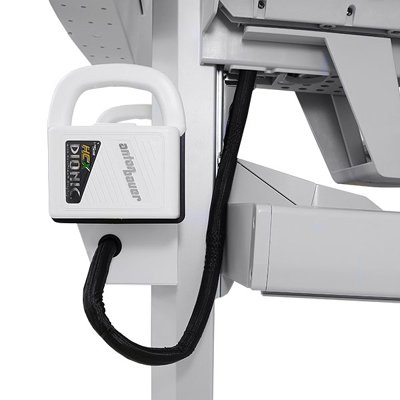

Gold Mount design locks batteries securely into place. Features gold-plated, self-cleaning, solid mechanical connections

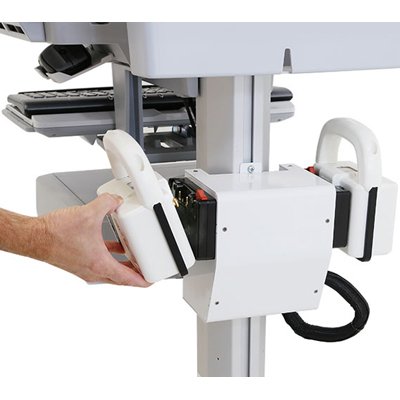

Batteries are easily switched and weigh only 2.4 lbs (1.1 kg) each
