Cotytech AM-7N Car Holder for iPad Dual Arm

This product has been discontinued.

Features

Dual Arm Holder

Optimal for iPad, laptop (12" - 15.4"), netbook and also LCD monitor with optional part
Head designed by teeth engagement joint, holds securely at any angle
Dual Arms can extend, retract and rotate 360 degrees
Overall length (height) is adjustable simply by pulling the quick release
Height (length) adjustment ranges 23.2" - 31.1" (59-792cm)
Aluminum alloy teeth engagement joints enabling smooth adjustments
360 degree rotations at head, dual arms and pedestal connection
Ultra compact folding design
The pedestal connection features quick release, making the product easy to install and uninstall
No drilling required
Maximum Load Capacity : 17.6lb (8kg) when moving / 35.2lb (16kg) when static
By choosing the optional 'Desk Mount Part' or 'Wall Mount Part' it can be used on a desk or placed on the wall.
Materials: High Quality Aluminum Alloy

Tray

Made of aluminum plate
Flat surface design
Dimensions: 12.6" (32cm) (L) x 9.8" (25cm) (W) x 1.18" (3cm) (H)
Adjust Velcro tapes to best fit on various sizes
Color: Black

Overall

Product Weight 3.74lb (1.7kg)
Package weight: 5.3lb (2.4kg)

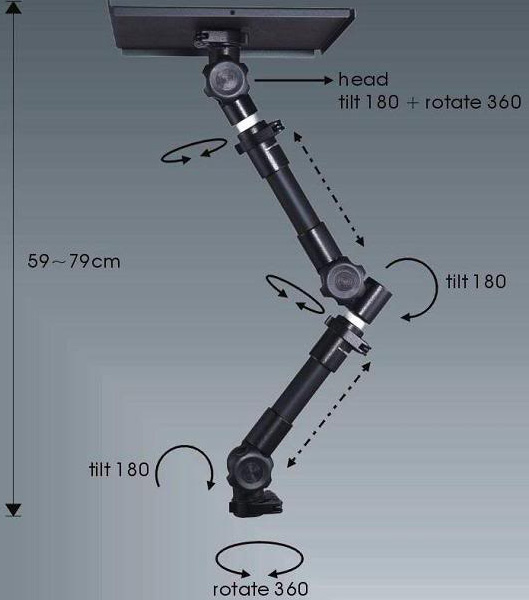

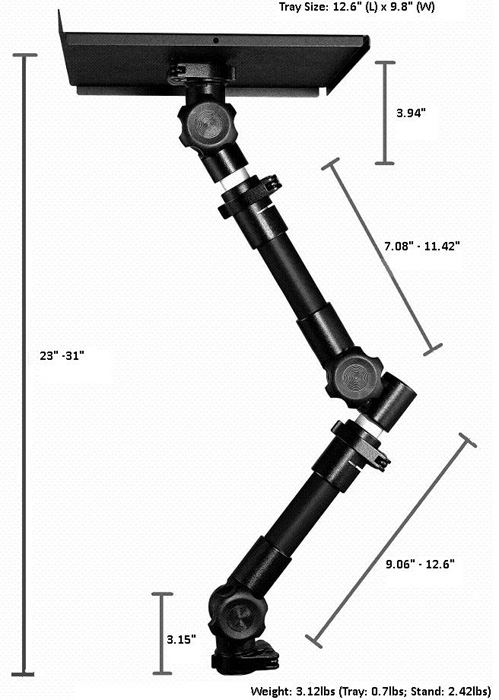

Technical Drawing

Technical drawig for Cotytech AM-7N Car Holder for iPad Dual Arm

Specifications

Weight Capacity	17.6lb (8 kg) when moving / 35.2lb (16 kg) when static
Tilt	180° (head & arms)
Extension Range	23" ~ 31" (59 ~ 79m)
Rotation	360° (head, dual arms and pedestal connection)
Weight	Product: 3.74lb (1.7kg), Package: 5.3lb (2.4kg)
Dimensions	12.6" (32cm) (L) x 9.8" (25cm) (W) x 1.18" (3cm) (H)

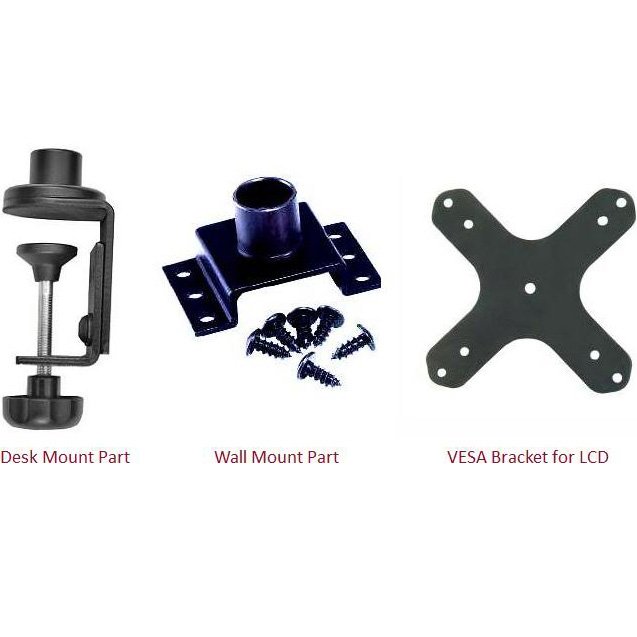

Optional Parts

You may turn this Car Mount into a desk mount or a wall mount by choosing the optional parts of 'Desk Mount Part' or 'Wall Mount Part'. If you want to mount an LCD monitor on this item, please choose the option part 'VESA Bracket for LCD'.

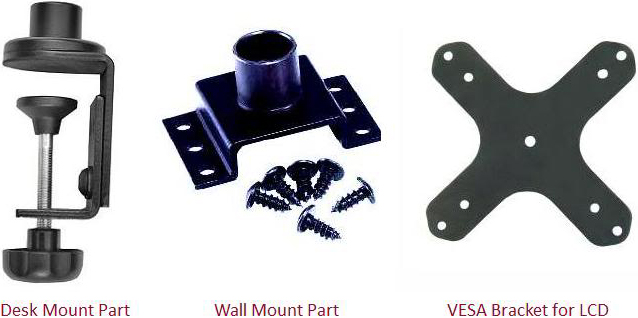

Cotytech Desk Mount Part, Wall Mount Part and VESA Bracket for LCD
