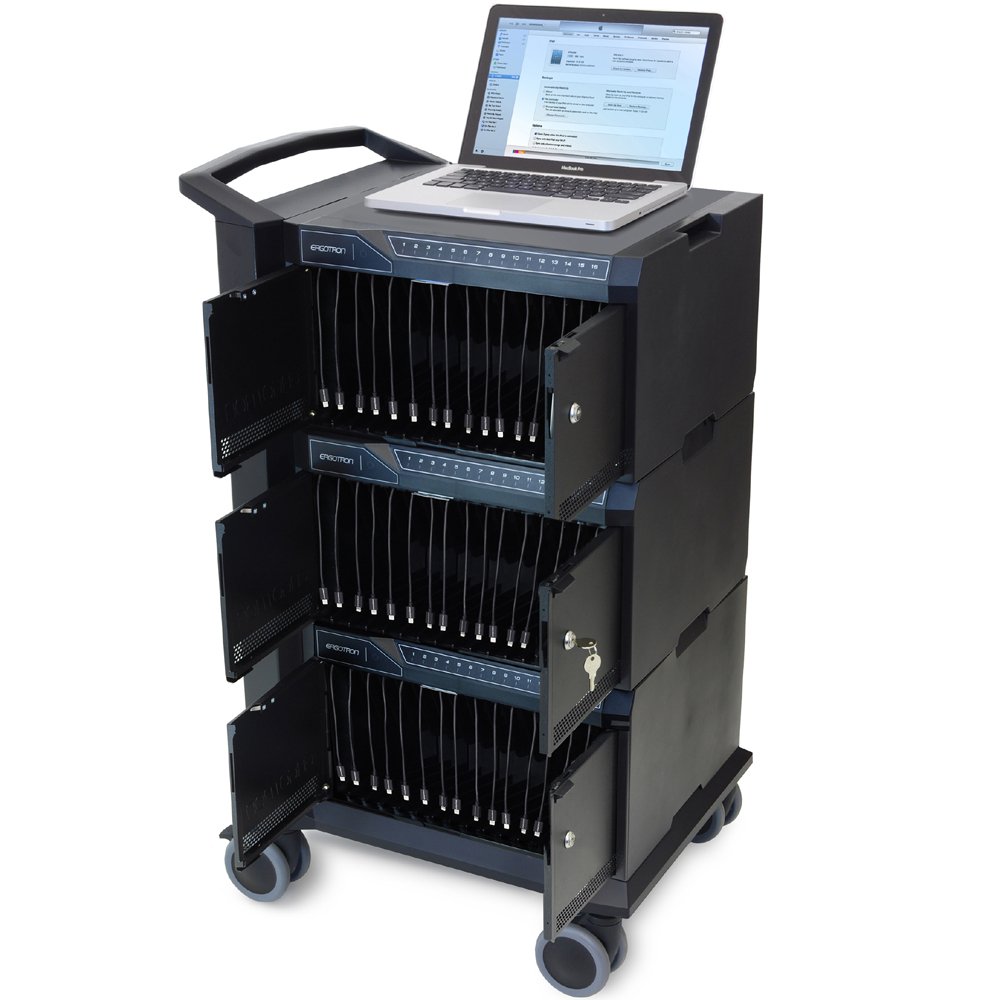

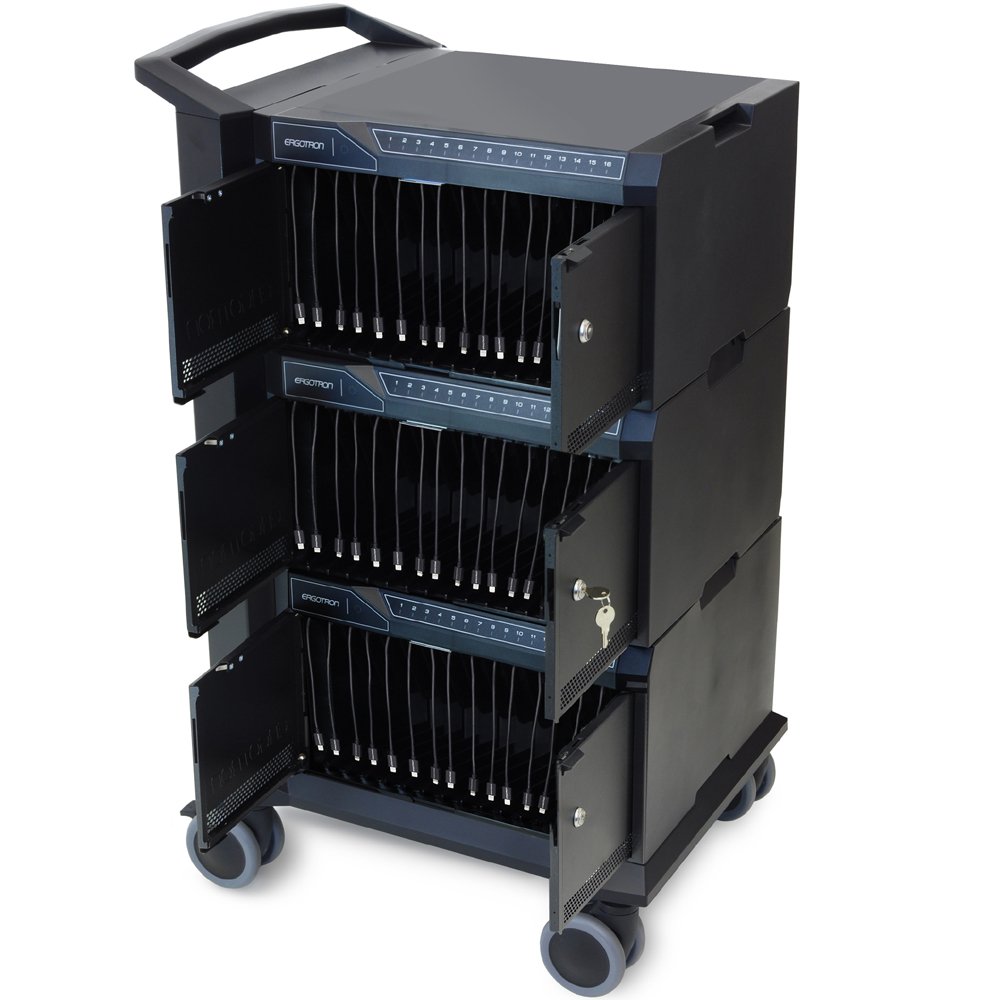

Ergotron DM48-1004-1 Tablet Management Cart 48 with ISI for iPad

This product has been discontinued.

Description

Fully assembled with Lightning cables installed, ergotron DM48-1004-1 compact cart features full 2.4A charging current per device, accommodating iPad Air, iPad (4th generation), iPad mini with Retina Display, and iPad mini tablets. Sync, charge, secure and manage up to 48 devices. Durable steel doors with robust three-point lock and key assembly provide strong theft deterrence.

Technical Drawing

Technical drawing for Ergotron DM48-1004-1 Tablet Management Cart 48 with ISI for iPad

Technical Specifications


LCD Size	Capacity	Lift	Tilt	Pan	Rotation	VESA
Up to 10.1"	Up to 2.2 lbs 1.0 kg	-	-	-	-	-

Product Information

Part Number	North America = DM48-1004-1 Europe = DM48-1004-2 United Kingdom/Ireland = DM48-1004-3 Hong Kong/Malaysia/Singapore = DM48-1004-3 Australia/New Zealand = DM48-1004-4 China = DM48-1004-5 Japan = DM48-1004-6
Description	Tablet Management Cart, Three Modules, 48 device capacity, with Individual Status Indicators, Lightning Cables Pre-installed (black)
Tablet Slot Size	7.9"H x 11.3"D x 0.85"W (20 x 28.8 x 2.2 cm). Tablet, power cord, and any cover or case must fit within these dimensions
Weight Capacity	Individual tablets up to 2.2 lbs (1 kg); top surface holds up to 25 lbs (11.4 kg)
Certification	UL 60950-1 Information Technology Equipment – Safety, CAN/CSA C22.2 No. 60950; UL 1667 Tall Institutional Carts for use with Audio-, Video-, and Television-Type Equipment IEC 60950-1 worldwide safety standard For EMC: FCC part 15 Class A, ICES-003 Class A, AS/NZS CISPR22 Class A, EN55022 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, EN55024 Complies with USB 2.0 standard Acoustic testing indicates very quiet operation at 41.4 dBA Certified “Made for iPad”
Compatible Devices	iPad Air iPad mini with Retina Display iPad mini iPad (4th generation)
Tablet Case Compatibility	The following cases have been tested and confirmed to work with this product. This is not a comprehensive list. If your cover fits within the maximum dimensions of 7.9"H x 11.3"D x 0.85"W (20 x 28.8 x 2.2 cm) with the cable plugged in, it should also fit ... iPad Air cases: Apple iPad Air Smart Case, Belkin Air Protect, Belkin MultiTasker, Belkin Shield Swing, Griffin Survivor, Gumdrop Drop Tech, Otterbox Defender, Shockdrop, Speck FitFolio, STM dux, STM studio iPad (4th generation) cases: Apple iPad Smart Case, Belkin Protective Case with Stand, Belkin Tri-Fold Folio, Belkin Snap Shield, Brenthaven Bionic, Casecrown Trifold Case, Casecrown Omni, Griffin Intellicase, Gumdrop Drop Tech, Hard Candy Street Skin, Logiix Roadster II, Otterbox Defender Series (without separate top cover), Otterbox Reflex Series, Speck FitFolio, STM Skinny 3, STM Skinny Pro, STM Grip, STM Dux, Targus SafePort Rugged, Targus SafePort Rugged Max Pro, Targus Slim Case, Trident Aegis, Trident Kraken AMS
Charging Capability	Provides full 2.4A charging capability to each device All tablets charge at the same time using the power provided through one wall plug LED Individual Status Indicators (ISI) monitor charging progress of each tablet

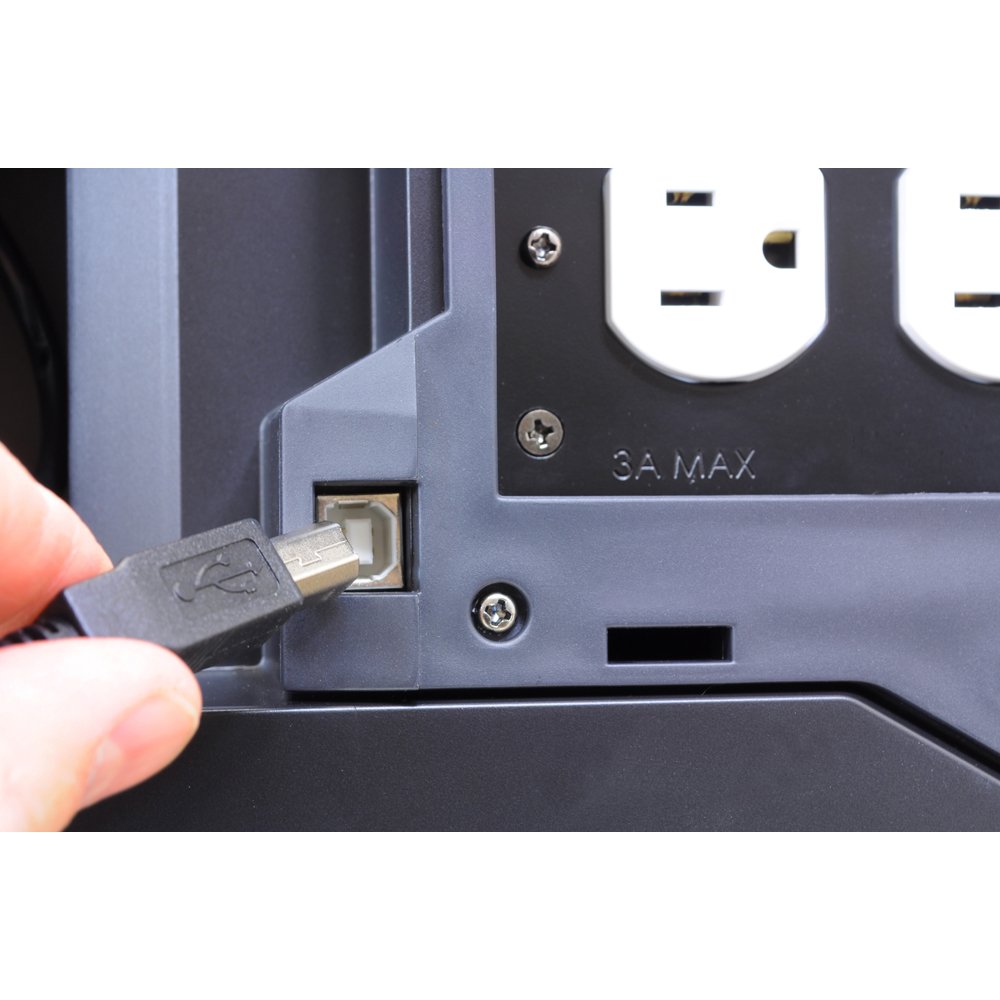

Syncing Capability	Syncs tablets using USB 2.0. External USB 2.0-Standard B receptacle provided to plug in laptop Syncing can be done using a Macintosh laptop and Apple Configurator or iTunes software available from Apple. Unit automatically switches from charging to syncing mode when the laptop is plugged into the USB receptacle. USB cable must be unplugged from cart to return to charging mode
Power System	Auxiliary electrical outlet (one or two outlets, depending on region): max current = 3A at 100-120V; max current = 1.5 at 230V Power cord is 12.5' (3.8 m) long VAC: 100/120V~,12A, 50/60 Hz or 220/230/240V ~, 5.5A, 50/60 Hz
Environmental	Temperature Range: operating = 0° to 30°C (32° to 86°F); storage = -40° to 60°C (-40° to 140°F) Relative Humidity: operating = 10% to 90% (non-condensing); storage = 5% to 95% (non-condensing) Altitude (maximum): 2000 m (6,562 ft) RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

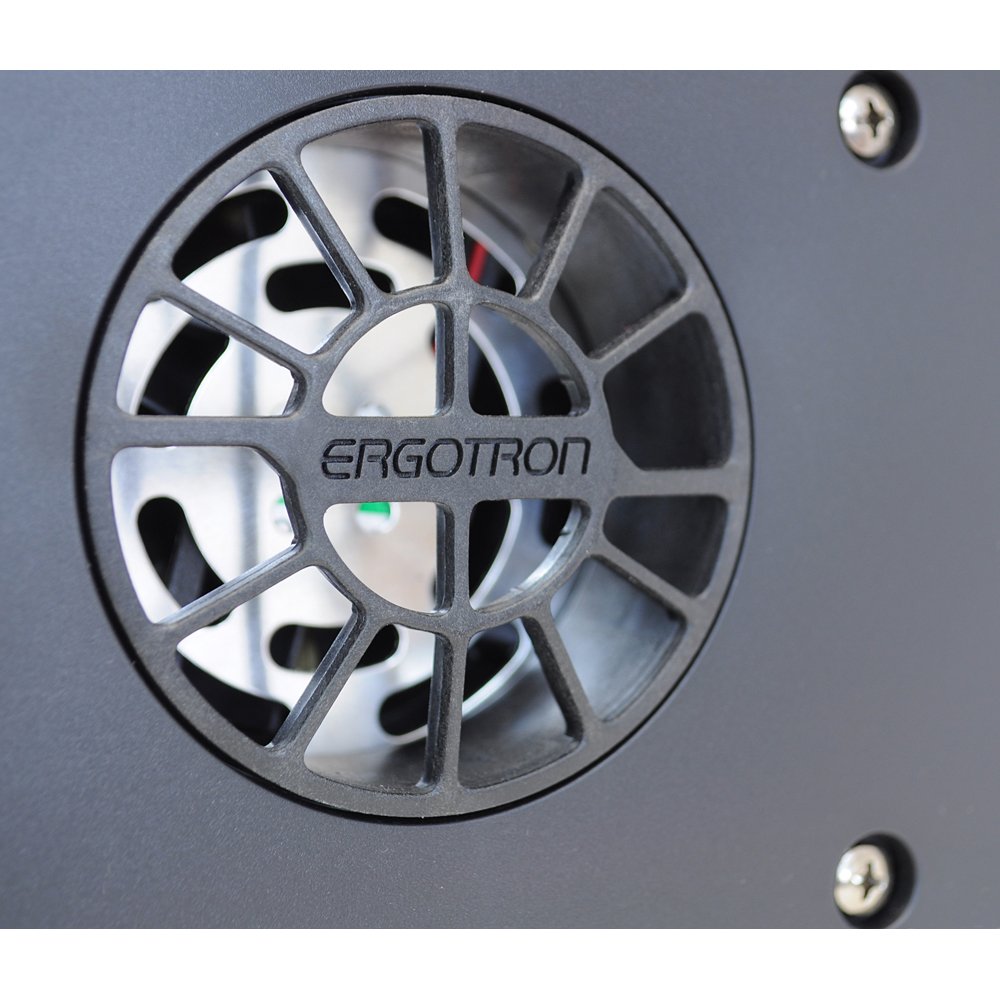

Cooling/Ventilation	Three 12V DC continuous operating fans
Casters	Four 4" (100 mm) smooth gliding casters for easy push/pull mobility. Two locking casters ensure lock-in-place stability
Number Storage Locations	Help keep cart organized
Product Dimensions	23"W x 18.4"D x 39.3"H (58.4 x 46.7 x 100 cm)
Product Weight (unloaded)	126.5 lbs (57.4 kg)
Shipping Dimensions	46.1" x 29.9" x 22.8" (117 x 76 x 58 cm)
Shipping Weight	175.5 lbs (80 kg)
Warranty	Five (5) years; two (2) years for power module; one (1) year for other electrical components

Benefits

Ready to Roll

Fully assembled with Lightning cables installed, this cart is ready to roll right out of the box. Just plug in your iPad devices to get started. Sync, charge, transport and secure up to 48 tablets

Top-Rated Sync & Charge

Improved charging system provides a full 2.4A charging current per device - charging an iPad Air in less than 4 hours
Built-in syncing capability; simultaneously sync up to 48 devices by connecting your laptop via the cart USB port
Made for iPad certified
Compatible with iPad Air, iPad (4th generation), iPad mini with Retina Display, and iPad mini devices. Lightning cables come pre-installed so the cart is ready to charge immediately
Accommodates most iPad cases - including the popular Otterbox Defender and Griffin Survivor for the iPad Air
LED Individual Status Indicators (ISI) monitor charging progress of each tablet

Super Compact Design

Up to 47% smaller and lighter (unloaded) than competitive product

Solid, Durable Construction

Steel tube and aluminum extrusion framework; steel access doors
Durable, easy-to-clean exterior composed of high-grade fire-retardant ABS
Clean, neat cable management within dedicated drawer located within each module. Secure drawer is separate from iPad compartment limiting unauthorized access to cables

Safe & Secure

Tested and certified to UL 60950-1 and UL 1667 standards, FCC requirements and all applicable country-specific regulations
Durable steel doors with three-point lock assembly provides strong theft deterrence; optional security bracket kit provides ability to secure entire cart to floor or wall
Fan and ventilation system maintains safe operating temperatures
Ergotron not only uses UL-certified components, but goes a step further to have UL certify the entire system to guarantee safe use within the classroom, healthcare or enterprise setting

Product Options/Accessories

97-735 Security Bracket Kit for Ergotron Charging Carts

$130.00 $87.34

Ergotron 97-829 Laptop Locker

$71.76

Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information

Model DM48-1004-1
Manufacturer Ergotron
Part Number DM48-1004-1
UPC 698833039702

Color Black
Tablet Size 7.9"H x 11.3"D x 0.85"W (20 x 28.8 x 2.2 cm)
Weight Capacity Individual tablets up to 2.2 lbs (1 kg); top surface holds up to 25 lbs (11.4 kg)
Compatible iPad Air, iPad mini with Retina Display, iPad mini and iPad (4th generation)
Auxiliary Electrical Outlet (one or two outlets, depending on region): max current = 3A at 100-120V; max current = 1.5 at 230V
Power Cord 12.5' (3.8 m) long
VAC 100/120V~,12A, 50/60 Hz or 220/230/240V ~, 5.5A, 50/60 Hz
Temperature 0° to 30°C (32° to 86°F); storage = -40° to 60°C (-40° to 140°F)
Humidity Operating = 10% to 90% (non-condensing); storage = 5% to 95% (non-condensing)
Altitude (maximum): 2000 m (6,562 ft)
Dimensions 23"W x 18.4"D x 39.3"H (58.4 x 46.7 x 100 cm)
Weight (unloaded): 126.5 lbs (57.4 kg)
Shipping Dimensions 46.1" x 29.9" x 22.8" (117 x 76 x 58 cm)
Shipping Weight 175.5 lbs (80 kg)
Warranty Five (5) years; two (2) years for power module; one (1) year for other electrical components
