3M MA120MB Single-Swivel Monitor Arm
This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.
Similar Products
Description

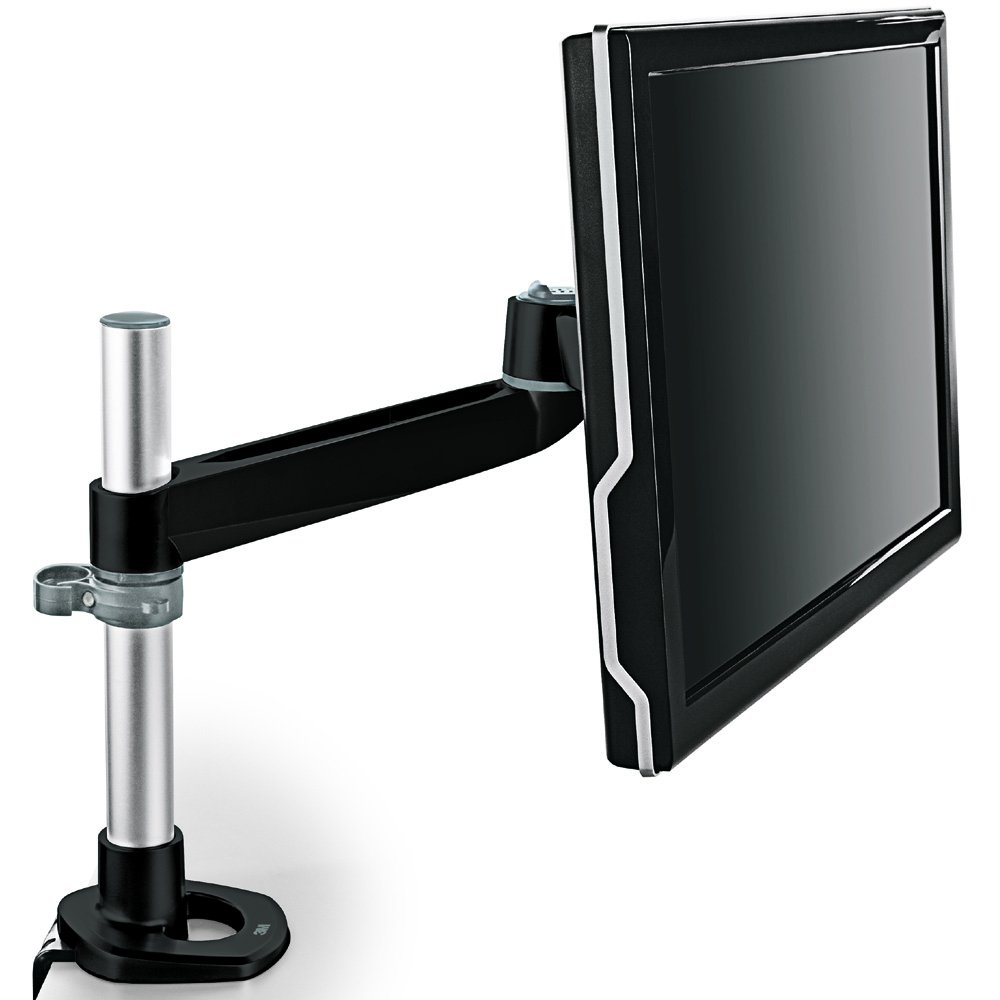

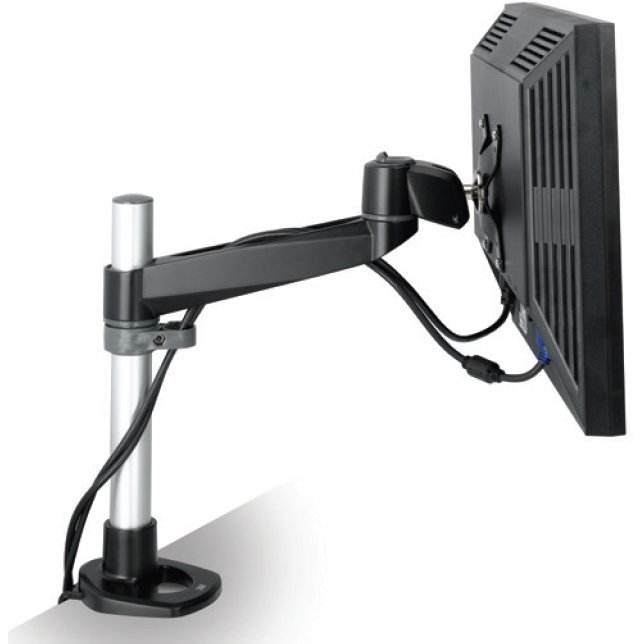

3M MA120MB monitor arm provides 7-1/2" of height adjustability and extends 11-1/2" from the base. Monitor can rotate from landscape to portrait for optimal viewing. Clamp mount hardware fits desks up to 4-1/4" thick and grommet mount hardware fits desks up to 2-1/4" thick. Weight capacity of 30 lbs VESA MIS-D Compliant.
Technical Drawing
Technical Specifications
|
Clamp Mount Max Surface Thickness |
4.25" |
|
Clamp Mount Min Surface Thickness |
0.8" |
|
Color |
Black |
|
Features Easy Adjust Technology |
No |
|
Grommet Mount Max Hole Size |
2.25" |
|
Grommet Mount Max Surface Thickness |
2.25" |
|
Grommet Mount Min Hole Size |
0.4" |
|
Height Adjustment |
7.5" |
|
Height Range of Adjustable Segments |
7.5" |
|
Max Extension Length |
11.5" |
|
Max Mount Plate Height From Surface |
15" |
|
Min Mount Plate Height From Surface |
7.375" |
|
Package Configurations |
1 per shipper |
|
Rotation Portrait/Landscape |
360 degree |
|
Size |
Adjustable |
Swivel |
180 degree |
|
Tilt Adjustment Range |
+15°/-90° |
|
VESA MIS-D 75mm and 100mm Compatibility |
Yes |
|
Weight Capacity |
30 lbs |
Features
- Provides 7-½" of pole height adjustability, 15" height adjustability from the surface and extends 11-½" from the base

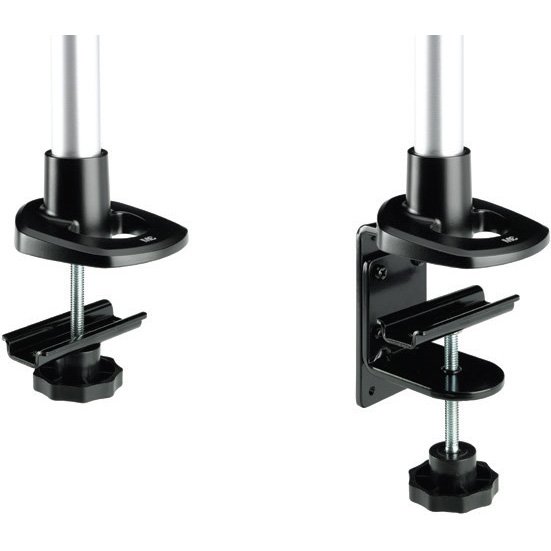

- Clamp mount hardware fits desks up to 4-¼" thick and grommet mount hardware fits desks up to 2-¼" thick
- Weight capacity of 30 lbs
- VESA MIS-D Compliant
- 3 year warranty
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model MA120MB
- Manufacturer 3M
- Part Number MA120MB
- Color Black
- Height Adjustment 7.5"
- Maximum Extension 11.5"
- Rotation 360 degree
- Swivel 180 degree
- Tilt Adjustment range: +15 degree/ -90 degree
- Weight Capacity 30 lbs
- Warranty 3 years
- Monitor Arm Types 1 Monitor
- Mounting Options Desk
- Number of Monitors 1 Monitor
