3M MA240MB Easy Adjust Monitor Arm

This product has been discontinued.

Description

3M MA240MB saves valuable desk space and easily move your monitor to a comfortable height for viewing reducing eye, back and neck strain. Adjustable arm easily moves up and down through 12.4 in height adjustment range. Arm also moves in and out and side to side with ease so you can move your monitor out of the way when not in use or share your screen with others. Easy to install comes with both clamp and grommet hardware included. Internal cable management route cables neatly under arm. For VESA MIS-D 75x75/100x100mm compliant monitors up to 20 lbs and 27 in. Contains 45% recycled content. 5 year warranty. Black.

Technical Drawing

Technical drawing for 3M MA240MB Easy Adjust Monitor Arm

Technical Specifications

Clamp Mount Max Surface Thickness	2.625"
Clamp Mount Min Surface Thickness	0.5"
Color	Black
Features Easy Adjust Technology	Yes
Grommet Mount Max Hole Size	2"
Grommet Mount Max Surface Thickness	3"
Grommet Mount Min Hole Size	0.5"
Height Adjustment	12.75"
Height Range of Adjustable Segments	12.4"
Max Extension Length	25.5"
Max Mount Plate Height From Surface	27"
Min Mount Plate Height From Surface	5"
Notebook Weight Range	2.5-20 lbs
Package Configurations	1 per shipper
Rotation Portrait/Landscape	360 degree
Swivel	180 degree
Tilt Adjustment Range	+55°/-90°
Total Recycled Content %	45%
VESA MIS-D 75mm and 100mm Compatibility	Yes
Weight Capacity	20 lbs

Features

Save valuable desk space and easily move your monitor to a comfortable height for viewing reducing eye, back and neck strain
Adjustable arm easily moves up and down through 12.4 in height adjustment range

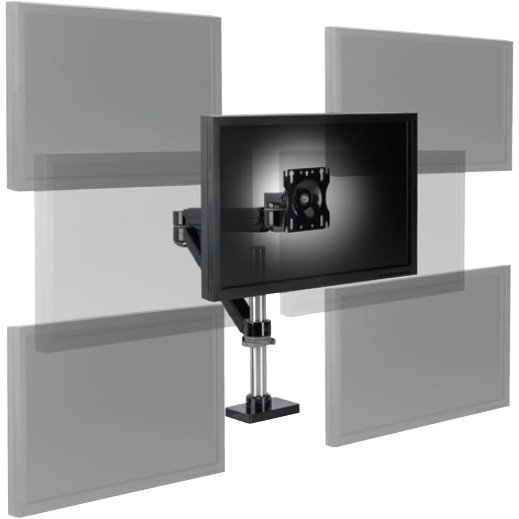

Arm also moves in and out and side to side with ease so you can move your monitor out of the way when not in use or share your screen with others

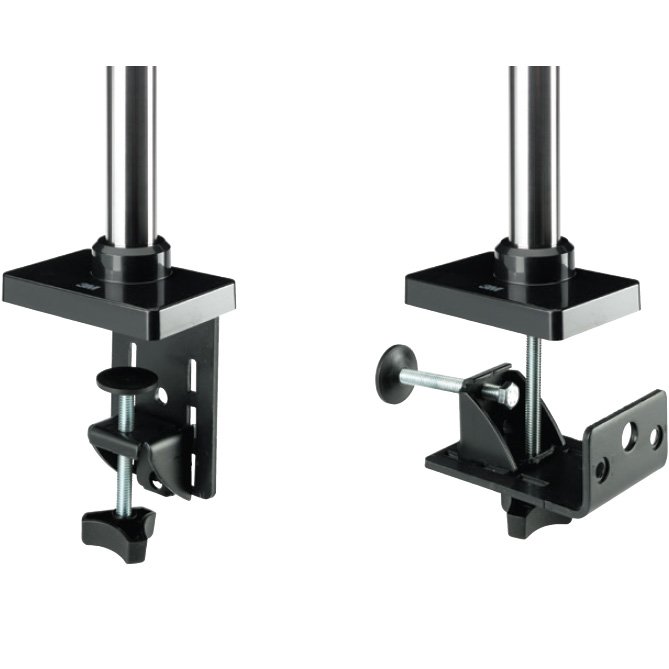

Easy to install comes with both clamp and grommet hardware included
Internal cable management route cables neatly under arm
For VESA MIS-D 75x75/100x100mm compliant monitors up to 20 lbs and 27 in
Contains 45% recycled content
5 year warranty
Black
