Ergotron DM40-1008-1 Zip40 Charging and Management Cart
Up to 40 devices with 1.1"-wide (28 mm) slot; up to 30 devices with 1.9"-wide (48 mm) slot.
Description
The one cart that gets it all done. Ergotron DM40-1008-1 Zip40 is a truly universal cart for transporting, securing, protecting and charging all your mobile computing devices: Use it with tablets, Chromebook, Ultrabook, MacBook and laptops - almost any device with a display size up to 15.6". Integrated PowerShuttle Technology optimizes total charge time while safely preventing electrical circuit overload.
Technical Drawing
Technical Specifications
 |
 |
 |
 |
 |
 |
 |
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 15.6" |
Up to 7.6 lbs 3.4 kg |
- | - | - | - | - |
Product Information
| Part Numbers |
|
| Description | Zip40 Charging and Management Cart (black/silver) |
| Includes |
|
| Ships | Fully assembled |
| Total Capacity | Up to 40 devices with 1.1" wide (28 mm) slot; up to 30 devices with 1.9" wide (48 mm) slot |
| Maximum Device Dimensions | 17.1ʺW x 11.2ʺH (43.4 x 28.4 cm) including case and cord |
| Divider Bumpers | Divider bumpers shorten the slot size to provide easy plug-in access for smaller tablet devices |
| Maximum Adapter Dimensions | Brick-style AC adapter = 7ʺH x 3ʺW x 2.2ʺD (17.8 x 7.6 x 5.6 cm). Wall-plug-style AC adapter = 2.2ʺW x 4.7ʺL x 3.9ʺD (5.5 x 12 x 10 cm) including cable strain relief. Cable diameter = 2.6–4.6 mm |
| Weight Capacity | Total = 255 lbs (116 kg); 76.5 lbs (34.7 kg) per shelf (3 shelves total in cart); 25 lbs (11.3 kg) top worksurface. Per device maximum weight of 7.6 lbs (3.4 kg) assumes 10 devices per shelf in a cart configured to hold 30 devices in total |
| Outlet Strip | Country-specific 10-receptacle outlet strip is designed to work with oversized wall-style and brick-style AC adapters |
| Uses | Uses the AC adapters that come with each device. AC adapters are not included |
| Cooling/Ventilation | Four 12V DC continuous operation fans and ventilated doors keep equipment cool |
| External Auxiliary Outlets | External Auxiliary Outlet(s) give you an always-on outlet to plug in extra peripherals like printers or document cameras. No need to choose between using the auxiliary outlets and charging devices - do both at the same time |
| Location Included for Installation |
|
| Power Cord | Country-specific power cord =12.5' (3.8 m) long; stored on a recessed cord wrap |
| Environmentally Clean | RoHS, REACH, WEEE and EU (94/620EC) packaging compliant |
| Power System | Input/output = 100-240V~, 12-10A, 50/60 Hz |
| Temperature Range | Operating 0°to 30°C (32°to 86°F); storage -40°C to -60°C (-40° to 140°F) |
| Relative Humidity (maximum) | Operating 10 to 90% (non-condensing); storage 5% to 95% (non-condensing) |
| Altitude (maximum) | 2000 m (6,562') |
| Certification |
|
| Product Dimensions | 30.3" W x 26.1" D x 45.4" H (77 x 66 x 115 cm) |
| Product Weight | 181 lbs (82 kg) |
| Shipping Dimensions | 37" W x 30" D x 52" H (94 x 75 x 132 cm) |
| Shipping Weight | 227 lbs (103 kg) |
| Warranty | Lifetime for mechanical components; three (3) years for electrical system; one (1) year for cables |
Benefits
More Flexibility

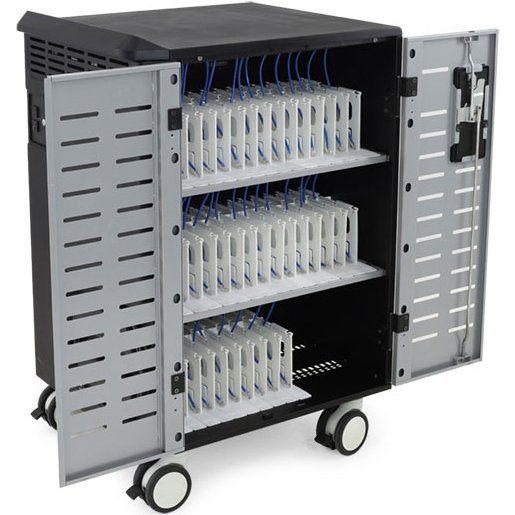

Adjustable dividers gives you flexibility to create the capacity option that works for you.

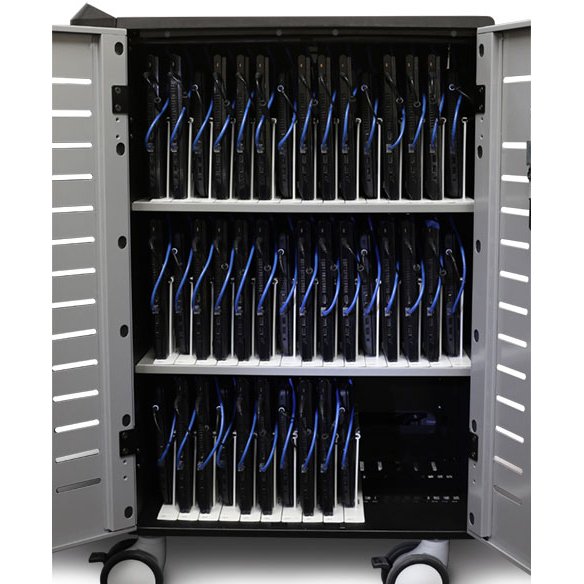

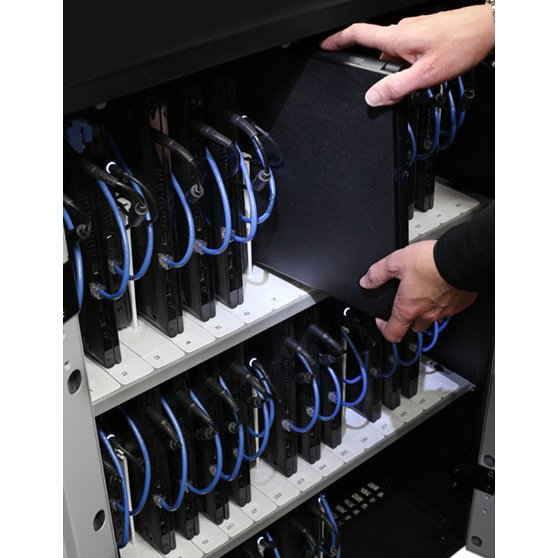

40-unit capacity with 1.1" wide (28 mm) slots and partial shelf for extra storage - ideal for tablets, Chromebooks and Ultrabooks
30-unit capacity with 1.9" wide (48 mm) slots - great for full-size laptops or other devices with large cases
Move/remove dividers as needed to create your own custom-size spaces. Mix and match devices: most all devices with screens up 15.6" are compatible

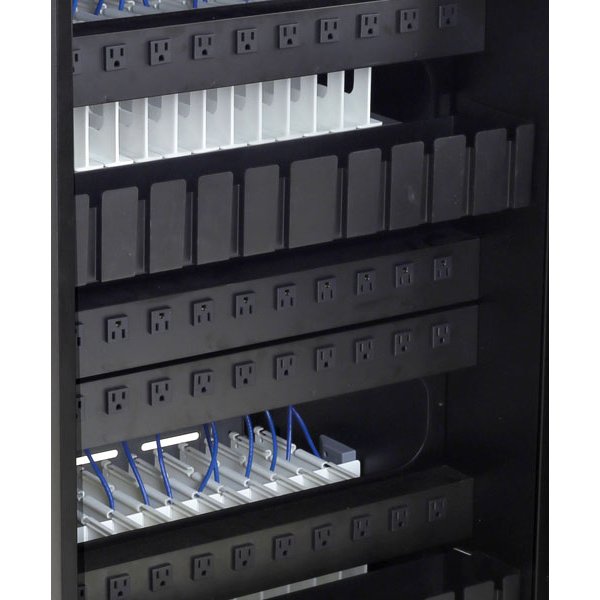

Separate rear access to AC adapter storage for easy one-time setup and clean cable management. Custom country-specific outlet strips include plenty of space to fit oversized wall-plug or brick-style AC adapters
Management capability available to make it easy to update devices via Wake-On-LAN. Includes pre-installed CAT6 Ethernet cables and mounting brackets for a customer-provided 1U standard rack mountable Ethernet switch (not included)
Includes external auxiliary outlet to power peripherals, location for WAP installation, and storage space for keyboards or other accessories. Also upgradeable for Ethernet management capability
More Agility

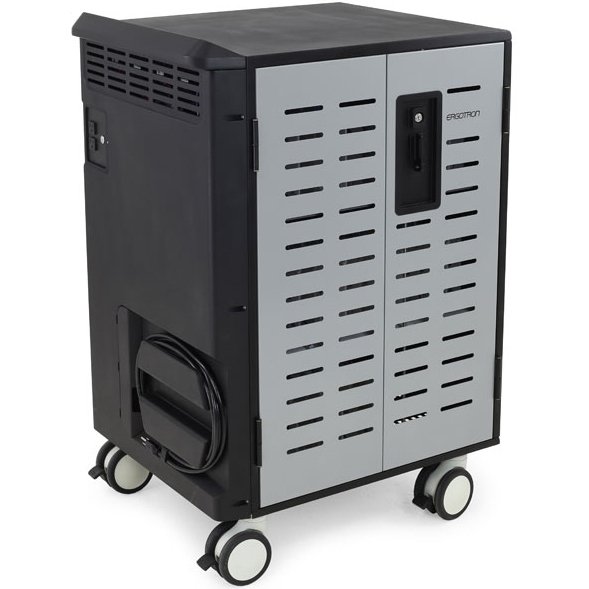

Compact 30" W x 26" D (77 x 66 cm) footprint saves valuable classroom space and makes the cart easy to maneuver in small spaces

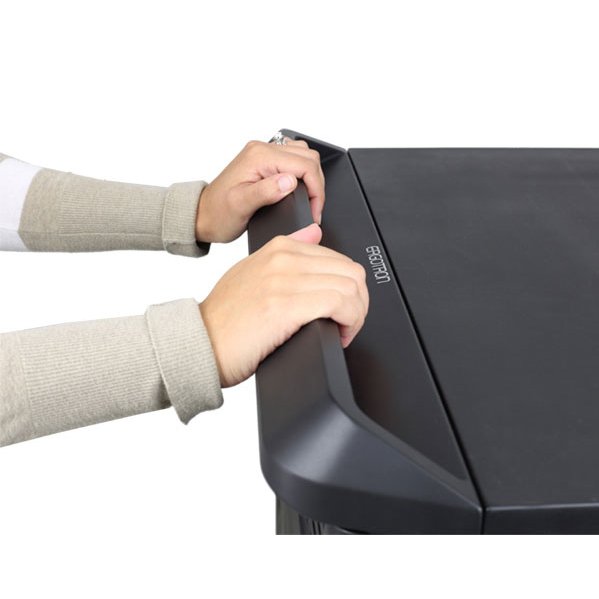

Easily zip from one classroom to another - 5" dual-wheel locking casters make for a smooth ride, requiring 33% less push/pull force than carts with single-wheel casters
More Efficiency
Ergotron's innovative, reliable PowerShuttle power management system charges up to 30% faster than a standard round-robin charging system so devices are ready when you need them
Using just one power cord plugged into a standard wall outlet, it safely prevents overloading of electrical circuits by efficiently grouping the number of devices that are charged at one time. Never waste time charging empty slots

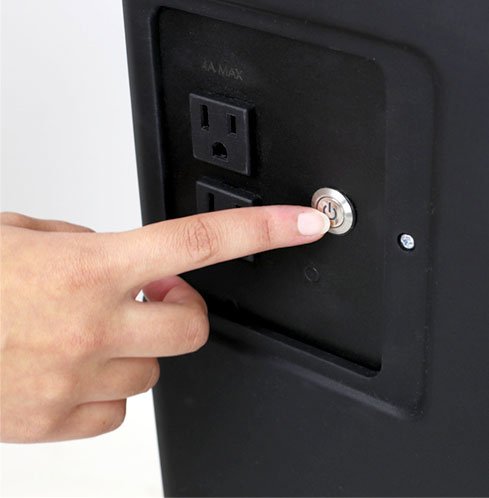

Includes a convenient ON/OFF power button
More Security
Tough, secure storage: Rugged steel construction withstands classroom abuse

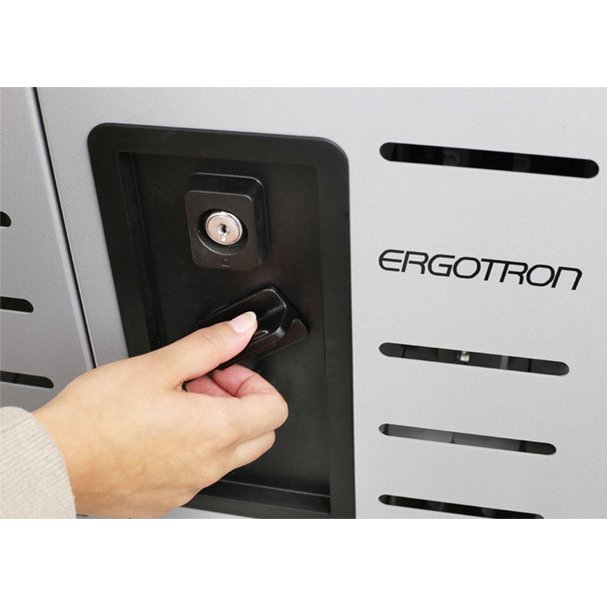

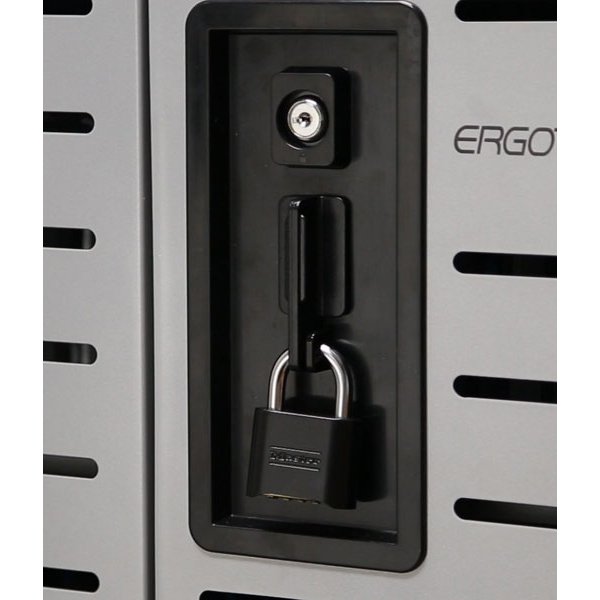

Durable steel doors include a solid three-point mechanism with key lock. Option to add your own padlock for additional security
Optional security bracket kit locks mobile cart to a fixed location on the floor or wall to secure it in place
Super Safe
Well-designed ventilation and continuous operating fans keep devices cool
For user and equipment safety, the entire cart is tested and certified to UL 60950 standard
Product Options/Accessories
97-735 Security Bracket Kit for Ergotron Charging Carts
$105.00
$62.17
SRVC-PI-03 Tier 3 Service Program
$500.00
$303.08
| Model | DM40-1008-1 |
| Manufacturer | Ergotron |
| Part Number | DM40-1008-1 |
| UPC | 698833042825 |
| Color | Black/silver |
| Monitor Size | Up to 15.6" |
| Weight Capacity | Total = 255 lbs (116 kg); 76.5 lbs (34.7 kg) per shelf (3 shelves total in cart); 25 lbs (11.3 kg) top worksurface. Per device maximum weight of 7.6 lbs (3.4 kg) assumes 10 devices per shelf in a cart configured to hold 30 devices in total |
| Maximum Device Size | 17.1ʺW x 11.2ʺH (43.4 x 28.4 cm) including case and cord |
| Power | Input/output = 100-240V~, 12-10A, 50/60 Hz |
| Temperature | Operating 0° to 30°C (32° to 86°F); storage -40°C to -60°C (-40° to 140°F) |
| Humidity | Maximum: operating 10 to 90% (non-condensing); storage 5% to 95% (non-condensing) |
| Altitude | Maximum: 2000 m (6,562') |
| Weight | 181 lbs (82 kg) |
| Dimensions | 30.3ʺW x 26.1ʺD x 45.4ʺH (77 x 66 x 115 cm) |
| Shipping Dimensions | 37ʺW x 30ʺD x 52ʺH (94 x 75 x 132 cm) |
| Shipping Weight | 227 lbs (103 kg) |
| Warranty | Lifetime for mechanical components; three (3) years for electrical system; one (1) year for cables |
| Display Type | Tablet |
