Ergotron DM16-1015-1 Tablet Management Desktop 16 with ISI
This product has been discontinued.
Description
Ergotron DM16-1015-1 is specially designed for the Samsung Galaxy Tab Active 8.0: Charge and deploy tablets across multiple shifts to all necessary individuals. Quick-connect dock utilizes Samsung’s POGO pin connectors - no charging cords to install or maintain! Locking steel doors keep tablets secure when not in use.
Technical Specifications
|
|
|
|
|
|
|
|
|
Screen |
Capacity |
Lift |
Tilt |
Pan |
Rotation |
VESA |
|
8.0" |
2.2 lbs 1 kg |
- | - | - | - | - |
Product Information
|
Part Numbers |
|
|
Description |
Tablet Management Desktop with Individual Status Indicators, 16 device capacity, for Samsung Galaxy Tab Active 8.0 (black) |
|
Compatible |
Only with Samsung Galaxy Tab Active 8.0 |
|
Weight Capacity |
Individual tablets up to 2.2 lbs (1 kg); top surface holds up to 25 lbs (11.4 kg) |
|
Certification |
|
|
Acoustic Testing |
Indicates very quiet operation at 41.4 dBA |
|
Cooling/Ventilation |

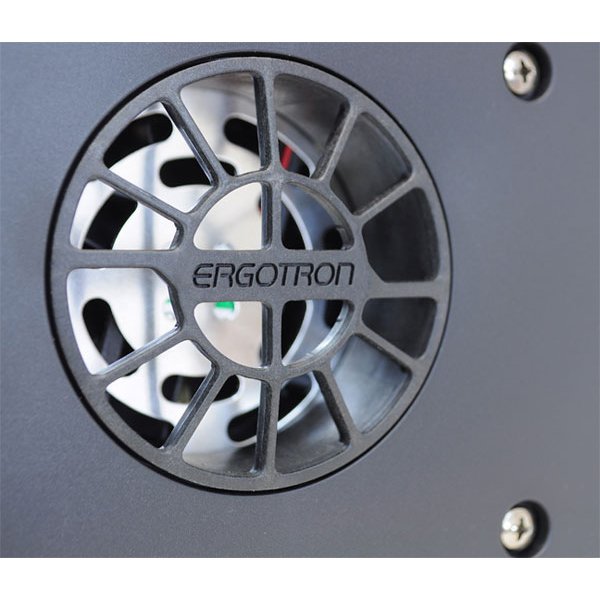

One 5V DC continuous operating fan |
|
Power System |
|
|
Environmental |
|
|
Environmentally clean |
RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant |
|
Product Dimensions |
18.3"W x 16.2"D x 10.4"H (46.5 x 41.1 x 26.4 cm) |
|
Product Weight (unloaded) |
28.5 lbs (13 kg) |
|
Shipping Dimensions |
21.2"W x 18.6"D x 12.8"H (53.8 x 47.3 x 32.5 cm) |
|
Shipping Weight |
33.5 lb (15 kg) |
|
Warranty |
Five (5) years; two (2) years for power module; one (1) year for other electrical components |
Benefits
No Setup Required
Easy to use. Plug in the cabinet, drop in the tablets - charge.
No charging cords to install. Quick-connect dock utilizes Samsung’s POGO pin connectors
Capacity for up to 16 Samsung Galaxy Tab Active 8.0 tablets with Samsung provided case in a super compact cart design
All tablets charge simultaneously with power from one cord to the wall
Great for serving a central area
Individual status indicator LEDs monitor charging progress for each tablet
Heavy-duty ABS plastic enclosure is “wireless syncing friendly”. None of the signal interference that is common with all-steel cabinets
Solid, Durable Construction
Steel access doors
Durable, easy-to-clean exterior composed of high-grade fire-retardant ABS
Secure Storage
Durable steel doors with three-point lock assembly provides strong theft deterrence
Ventilated enclosed storage area keeps tablets safe, secure and cool
Can be secured to a desktop from bottom using provided security screws (surface thickness ≤ 1.0"/ 2.5 cm)

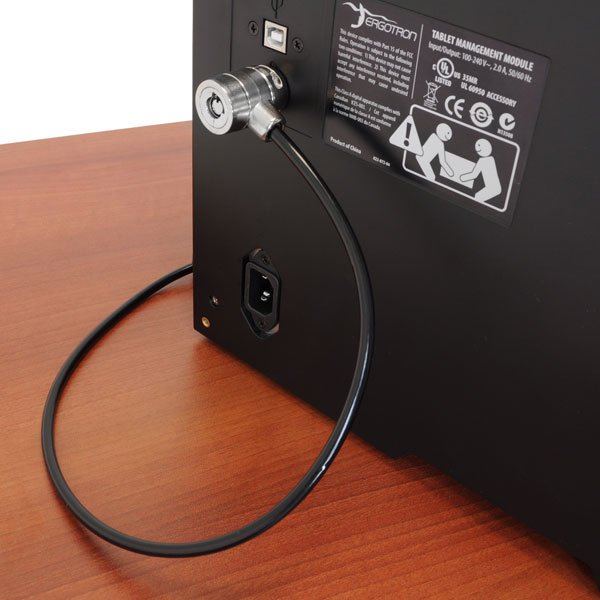

Includes lock slot, allowing connection to Kensington cable
Certified for Safety
Ergotron not only uses UL-certified components, but goes a step further to have UL certify the entire system to guarantee safe use within the classroom, healthcare, or enterprise setting
Tested and certified to UL 60950-1 standard, FCC requirements, and all applicable country-specific regulations
Product Options/Accessories
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model DM16-1015-1
- Manufacturer Ergotron
- Part Number DM16-1015-1
- UPC 698833050608
- Color Black
- Compatible Only with Samsung Galaxy Tab Active 8.0
- Weight Capacity Individual up to 2.2 lbs (1 kg); top surface holds up to 25 lbs (11.4 kg)
- Power 100-240V~, 3.0A, 50/60 Hz depending on region and model of cabinet
- Power Cord 6' (1.8 m) long
- Temperature Operating = 0° to 40°C (32° to 104°F); storage = -40° to 60°C (-40° to 140°F)
- Humidity Operating = 10% to 90% (non-condensing); storage = 5% to 95% (non-condensing)
- Altitude 2000 m (6,562 ft) (maximum)
- Dimensions 18.3"W x 16.2"D x 10.4"H (46.5 x 41.1 x 26.4 cm)
- Weight 28.5 lbs (13 kg) (unloaded)
- Shipping Dimensions 21.2"W x 18.6"D x 12.8"H (53.8 x 47.3 x 32.5 cm)
- Shipping Weight 33.5 lb (15 kg)
- Warranty Five (5) years; two (2) years for power module; one (1) year for other electrical components
- Display Type Tablet
